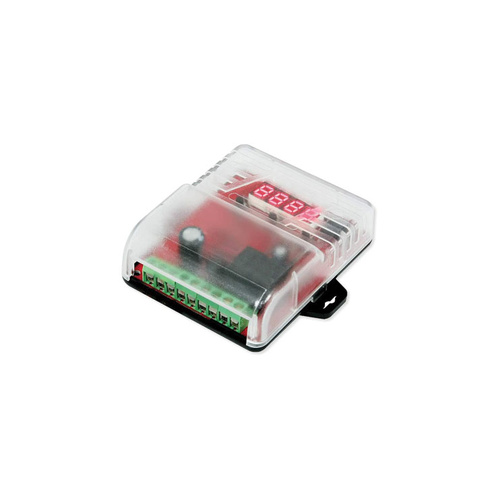

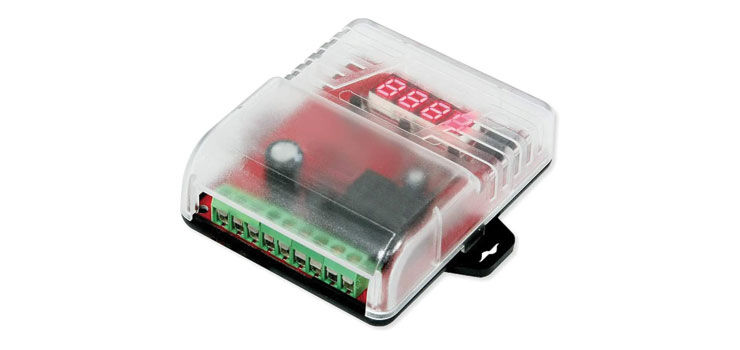

12V / 24V DC Multi-Function Timer / Counter

12V / 24V Programmable timer and Counter

The SA-025MQ programmable timer provides a way to trigger events via its 10A NO/NC/COM relay output, plus count whenever an event occurs. It is a very flexible design which has seven programmable modes; auto door/gate closure, guard timer, pulse extender/false trigger avoidance, timed relay output, timed pulse relay, input counter, input timer).


Features

• Program relay to trigger at start or end of timed cycle
• Pulse or steady on relay mode
• Low current draw
• Timer can trigger LED or buzzer
• 10A @ 24V DC NO/NC/COM dry form C relay
• 12V-24V DC operation
• LED event counter display.

Specifications

• Rating: 10A 24V DC
• Timer duration: 1s to 11h 59min
• Trigger: NC negative, NO positive
• Reset: NO negative
• Input: 12 or 24V DC
• Standby current draw: 20-40mA
• Energised current draw: 65-100mA
• Size: 83 x 63 x 27.5mm

  *Specifications are subject to change without notice.
