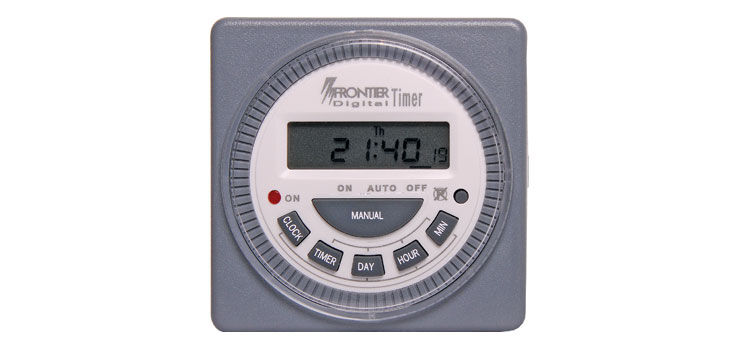

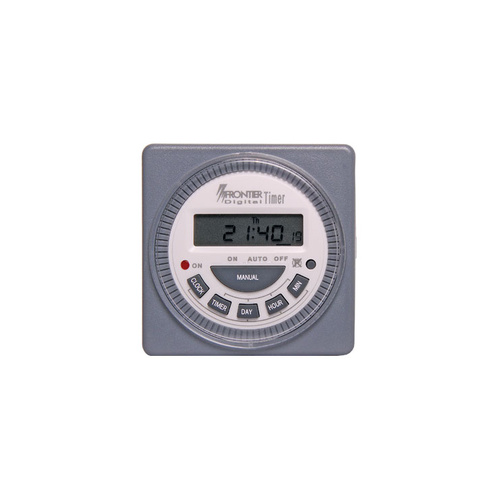

8 Program 24V AC/DC Alternate Digital Timer Module

Repeats Program Every 7 Days

This versatile 7 day digital timer module is ideal for use in any appliance which requires automation. It can be configured to switch up to 8 different times during a 24 hour period. In addition, they can be programmed to operate on a wide variety of days. eg. daily, weekdays only, weekends only, every second day, or selected group of days.

Switch-on and switch-off times may be set for each program. ie allows different ‘on’ duration for each program. 8 single duration programs per day ie: 56 programs per week.

The timer has three modes of operation. Includes ‘always on’ and ‘always off’ override modes, which will ignore all programmed events. The mode of operation can only be changed when power is applied to the switch.

In the event of a power failure, the switch retains its program data via an internal CR2032 battery.

For power backup of programmed times a 3V CR2032 lithium battery cell is provided.




• Very versatile digital programmable clock
• Relay switched NO/NC single pole
• 65mm x 65mm panel mount up to 7mm
• Each program is within a 24 hour period
• Each to operate on any days of the week
• Each Program can switch ON or OFF
• Each program can set ON duration
• Manual push button over-ride
• Inbuilt battery backup CR2032

• Contact Rating:
• 16A @ 30VDC
• 8A @ 240VAC
• Operating Voltage: 24VAC/DC
• Panel Thickness (p in diagram): <7mm
• Switch Type: SPDT

  *Specifications are subject to change without notice.
