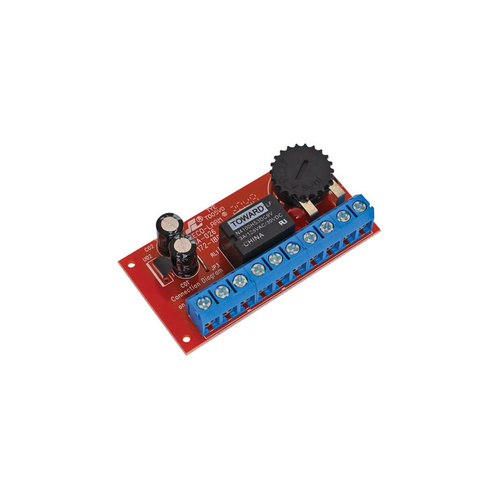

12V / 24V DC 3A Programmable Mini PCB Timer

12V / 24V Programmable timer

The SA-026Q low voltage miniature timer module operates on 12-24V AC or DC. It may be used to modify the activation time of a momentary contact switch for 1-180 seconds, adjustable via onboard variable resistor. May be triggered by a NC or NO contact. Switched power output, plus voltage free changeover relay contacts.

 Specifications

• Rating: 3A 24VDC
• Timer duration: 1-180s
• Trigger: NC or NO
• Input: 12-24V AC/DC
• Connections: Screw terminals
• Dimensions: 30 x 55 x 16mm

  *Specifications are subject to change without notice.
