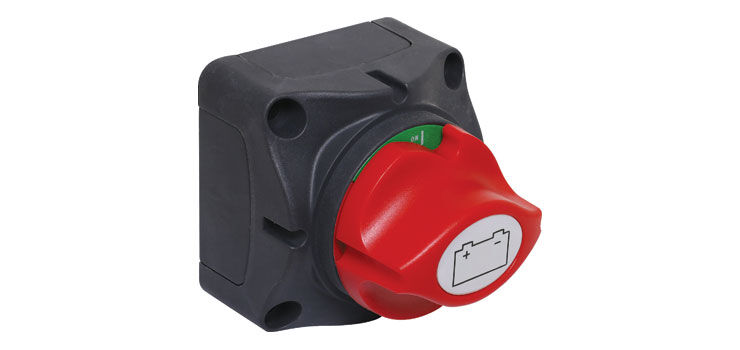

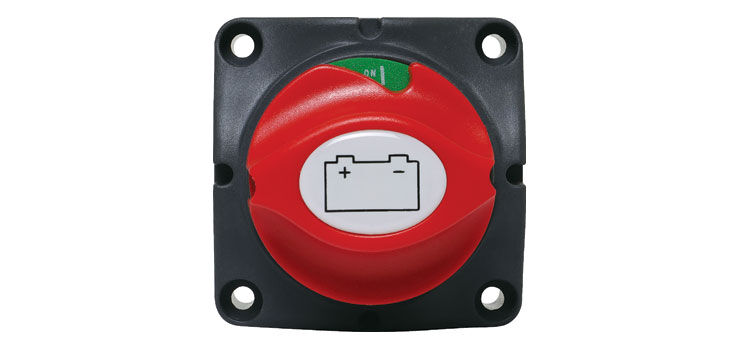

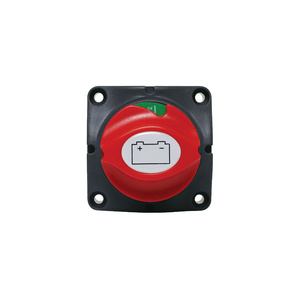

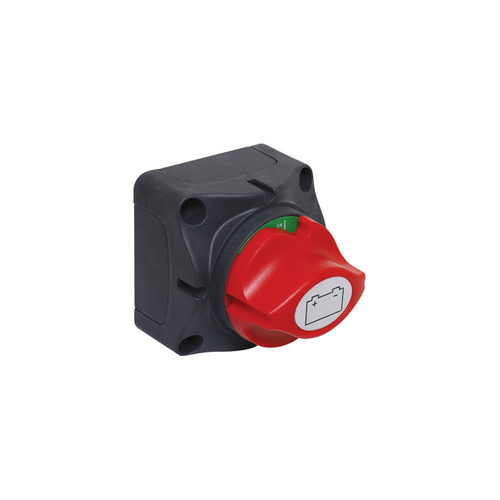

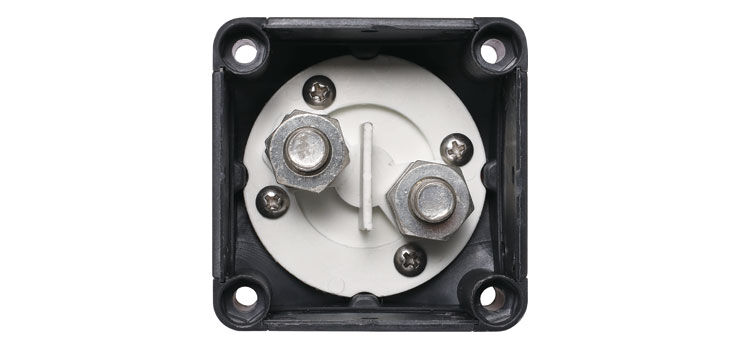

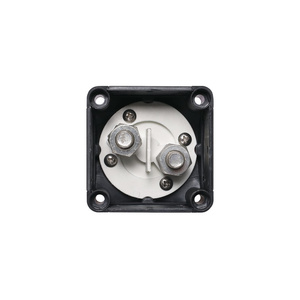

Rotary Battery Bank On / Off Isolator Switch

Disconnect a Battery with this Isolator Key Switch

Rotary on/off master switch for high current DC circuits and battery banks. Ideal for marine and automotive use or in remote power systems where battery banks are utilised. Knob can be removed as a security feature when in isolated position to prevent tampering.

Specifications

• Continuous Rating: 275A at 12VDC (200A at max 50VDC)
• Cranking Rating: 1250Amps at 12VDC (1000A at max 50VDC)
• Terminal Size: M10
• Electrical Life: >10000 cycles
• Dimensions: 68 x 68 x 75 mm

  *Specifications are subject to change without notice.
