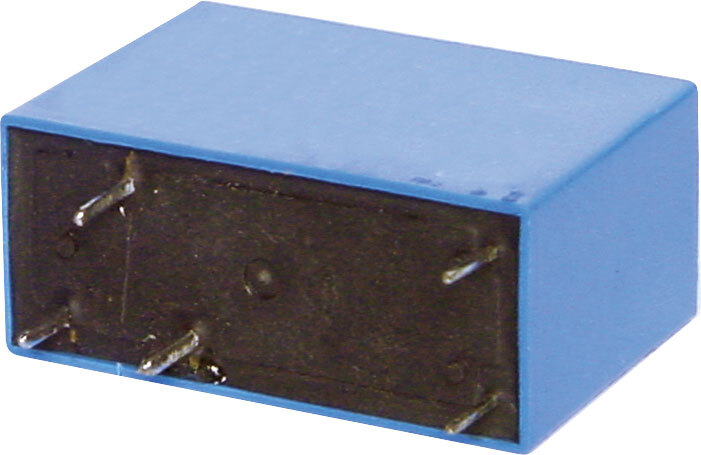

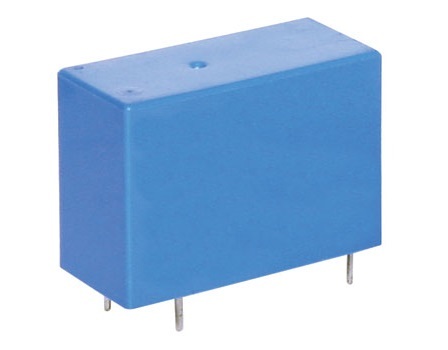

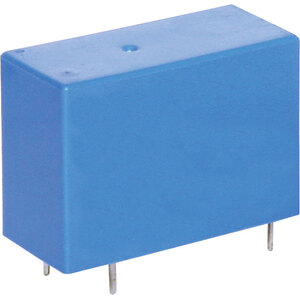

10A 24VDC SPDT PCB Mount Relay - Blue

24V Relay

Non-sealed type, suitable for flow soldering.

• Max switching voltage: 240V AC, 110V DC
• Max switching current: 10A
• Max VA (Watts): 1200VA (300W)
• Contact material: Silver Cadmium Oxide
• Coil resistance: 820Ω
• Max coil power: 720mw
• Insulation resistance: >100MΩ @ 500V DC
• Dielectric strength (for 1 min):
• 1000V AC between open contacts
• 5000V AC between coil & contact
• Electrical life: 100,000 operations
• Mechanical life: 10 million operations
• Dimensions: ˜29.1W x 13L x 20.6H mm

  *Specifications are subject to change without notice
