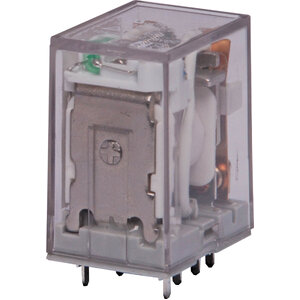

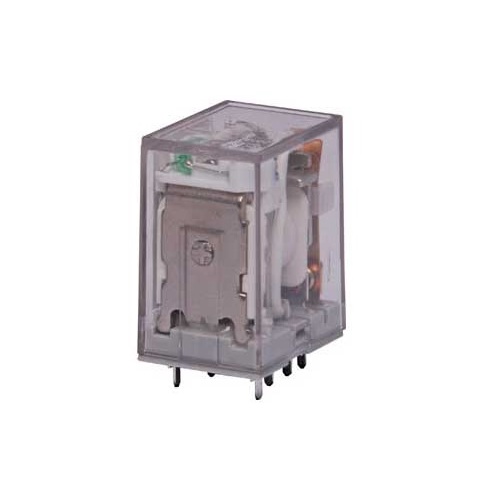

10A 24VDC DPDT PCB Mount Relay

24V Relay

10A DPDT relay. PCB mount style featuring an in-build indicator. 24V DC.

  • Max Switching Voltage: 300V AC, 30V DC
  • Max Switching Current: 10A (total)
  • Max VA (Watts): 280VA (280W)
  • Contact Material: Silver Cadmium Oxide
  • Coil Resistance: 640Ω
  • Max Coil Power: 900mW
  • Insulation Resistance: >1000MΩ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1500V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 20 million operations

    *Specifications are subject to change without notice

SKU ER0043
Barcode # 9351634054428
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
