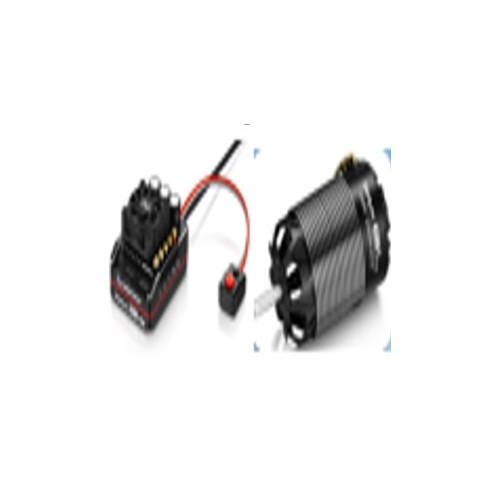

XERUN XR8 Pro G2-4268 G3-On-Road-A 2800KV Brushless Motor and Electronic Speed Controller Set

Brushless Motor & ESC Upgrade for RCs

SKU: TR9550


$399.00
RRP $499.00
Sold Out




Calculate Shipping

XERUN XR8 Pro G2-4268 G3-On-Road-A 2800KV Brushless Motor and Electronic Speed Controller Set

Brushless Motor & ESC Upgrade for RCs

Hobbywing are pleased to introduce the XERUN XR8 Pro G2 competition combo set speed for 1/8th vehicles. Combined with the 4268 G3 2800KV motor.  This new version provides a host of new features including;

Full-sensored Mode Supported

The ESC can work the full-sensored mode at all times (when pairing it with a HOBBYWING matching motor).

1/8th power system, Boost & Turbo Timing Technology

This ESC pairing with Hobbywing motor can start Turbo Timing technology which succeeded in 1/10th On-Road contest. It supports 48 degrees Boost and Turbo Timing. When pairing with Hobbywing 4268/4274 G3 motor, the max. speed can be promoted by 50%. Easily win your rival.

Internal Battery-Reverse Polarity Protection Circuit

With the Built-in Reverse Voltage Protection circuit, ESC's internal parts are all protected from Cross Connection of battery power.

Programming / Upgrading / Data reading wirelessly

With Hobbywing's OTA module and smartphone (with the HOBBYWING HW Link App installed), the user can program parameters, upgrade firmware and heck relevant data of the ESC.

Easy Obtain Running Status with Real-time Data Recording Function.

With Hobbywing's OTA module, Connect the HW Link App to the ESC and open the real-time data recording function, to check the throttle, voltage, current, temperature, RPM and other data in real-time. Easy obtain running status of ESC and motor.
Note: Due to transmission distance of bluetooth, the effective distance is only about 5m!

Fire-new communication protocol can speed up set parameter and upgrade firmware.

The ESC adopts fire-new communication protocol. It greatly improves the speed of setting parameters and upgrading firmware. The speed is improved by 2 times when matching with LCD G2 and 3-4 times when matching with OTA Programmer.
Note: LCD G1 / WIFI Express uses old protocol, so the speed is not improved!

Capacitor Thermal Protection

Capacitor thermal protection implemented by the ESC will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.

Super Internal BEC

The built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step:0.1V) allows the use of various standard servos, high voltage servos.

Multiple Programmable Items

The ESC contains nearly 30 adjustable parameters, including throttle PWM frequency, brake frequency, flexibility, boost/Turbo Timing which are commonly used in 1/10 power system. It can accurately adjust the power demand and make players enjoy the ultimate control experience.

Advanced and Secure Electronic Switch

The dust, dirt, and waterproof switch housing ensures a long reliable life for your ESC, will not suffer from the problems most standard on/off switches encounter.

Excellent dustproof performance

The ESC is IP5X. Its excellent dustproof performance can easy to overcome various On-Road & Off-Road contest track.


Specification

Type
Scale - 1/8th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 200A/1080A
Input Voltage - 2-4S Lipo/6-12 Cell NiMH
BEC Output - Switch Mode: 6V-8.4 adjustable,6A

Wires & Connectors
Input Wires - Black-12AWG-200mmx2
Output Wires -Black-12AWG-200mmx2
Input Connectors = No
Output Connectors - No
Fan

Size - 30x30x10mm
Voltage Range - 5-8.4V
Powered by - BEC

ESC Programing via
SET Button on ESC Not Supported
LED Program Box Not Supported
LCD Program Box Supported
WiFi Module Supported

OTA Programmer - Supported

Program Port Independant programming port

Firmware
Firmware Upgrade - Supported

Size & Weight
Size -56.1mmx42.1mmx38.6mm
Weight - 114g 114g (Including the weight of Rx wire and switch)

Applications
Motors SL BL Motors SD BL Motors
Vehicles -1/8th Off-Road/On-Road competition
KV Rating/T Count - 4S LiPo: 4268/4274≤3000KV

  • Motor Features

    1/8th brushless power system with the implementation of a pure signal sensor mode circuit.

    Built-in intelligent integrated circuit is used so the sensor unit can easily be identified by the ESC when pairing with Hobbywing's XeRun XR8 series of ESC's the motor will operate in “Pure Sensored” mode at all times, providing a better performance and a smoother throttle response.

    1/8th power system & Turbo Timing technology

    can be used when this motor is paired with Hobbywing's XERUN XR8 series of ESC's the Motor can use the Turbo Timing technology which was designed for the XR10 Pro series of Esc's used in 1/10th On and Off road Competion.The motor will increase to maximum power output instantly. The maximum speed will increased by as much as 50% more than the output of the previous G2 series motors keeping you way ahead of the competition.
    Please Note: When tue G3 Series motors are paired with XR8 Pro G2 ESC the turbo feature can be set to the maximum of 48º.

    The mechanical turbo timing of motor can be accurately adjusted in both directions (CW / CCW)

    The mechanical turbo timing can be adjusted between 20-40°. It is convenient for driver to calibrate accurately output power of motor and meet power requirements of various application.

    The efficiency is improved greatly, effectively reducing the temperature incease.

    Compared with XERUN 4268/4274 G2, the motor structure is greatly optimized, the efficiency is improved by 6% or more, which reduces the motor temperature increase effectively (Reducing thermal runaway).

    The G3 Series is Fail Safe and reliable using Hobbywing's new motor Hall sensor technology

    The motor sensor system adopts patented technology of "error-free" Hall sensor technology, with an independent high-speed and high-precision encoder of which will always output a pure and accurate rotor position signal, which effectively will isolate any external interference which are known to cause errors of the sensor signal.This accurate sensor system will allow the motor to function at its peak performance in a very stable sensor state.

    Excellent dustproof design.

    The Off-Road motor is IP5X. Its excellent dustproof design will minimise debri entering the motor which is very well known to effect Off-Road applications.
    Note: Only 4268-1900KV/2200KV and 4274-2250KV are IP5X.

    Light weight

    The design of 4268SD G3 is optimized which reduces the overall weight of motor. The weight of 1900KV / 2200KV is 315g / 285g respectively. And the weight of 4268 motor is 330g, 1900kv / 2200kv is 20g / 45g lighter than peers. The light weight motor is convenient for the driver to adjust the balance performance of the vehicle.

    Low rpm (no current) torque

    The motor also minimises the low rpm (no current effect) also known as cogging and small torque pulse. It is very smooth at low rpm increasing its performance at low speeds.

    Advanced material in the industry and outstanding product design

    •It was made out of a single piece of 7075 aluminum bar processed by precision CNC. The CNC Stator case has zero gaps or any screws on the surface of the Can body. There is a silicone dustproof ring seal that surrounds the sensor base. The details show originality.
    •The front case bell contains two pairs of M3 and two pairs of M4 screw holes, which are suitable for various mounting bases.
    •The outlet terminals use a widened U-shaped/90° gold-plated curved copper contacts, which have a very low internal resistance which also makes soldering wires to the terminal an ease.
    •The R-class insulation material is rated at 240 ° C, the special high-strength adhesive is rated at 340 ° C, and high quality international well known branded low friction bearings are used to handle extreme loads.

    Various specifications and models, covering 1/8th various applications

    4 4268 On-Road series features two versions the 2000KV and 2800KV, which respectively are used for 1/8 Pancar and GT.
    • 4268 Off-Road series consists of two versions the 1900KV and 2200K which respectively are used for 1/8 Off-Road to allow the end user to race at different sized tracks
    • 4274 one version only consists of the 2250KV which is suitable for 1/8 Off-Road recreational and popular with 1/8th Truggy competition.

3 Month Warranty

SKU TR9550
Barcode # 9351634045600
Brand Hobbywing
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.030m
Shipping Length 0.200m
Shipping Cubic 0.001200000m3
Unit Of Measure ea
