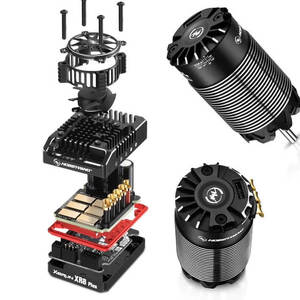

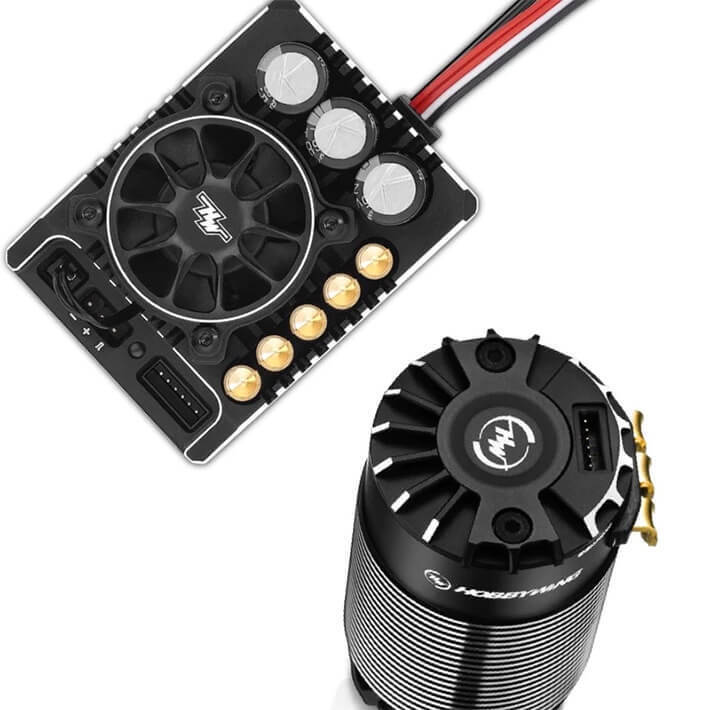

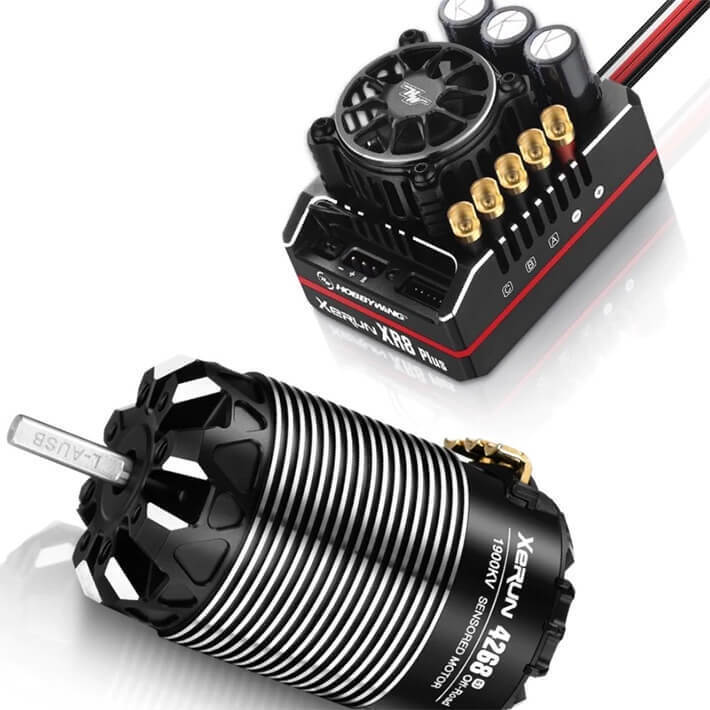

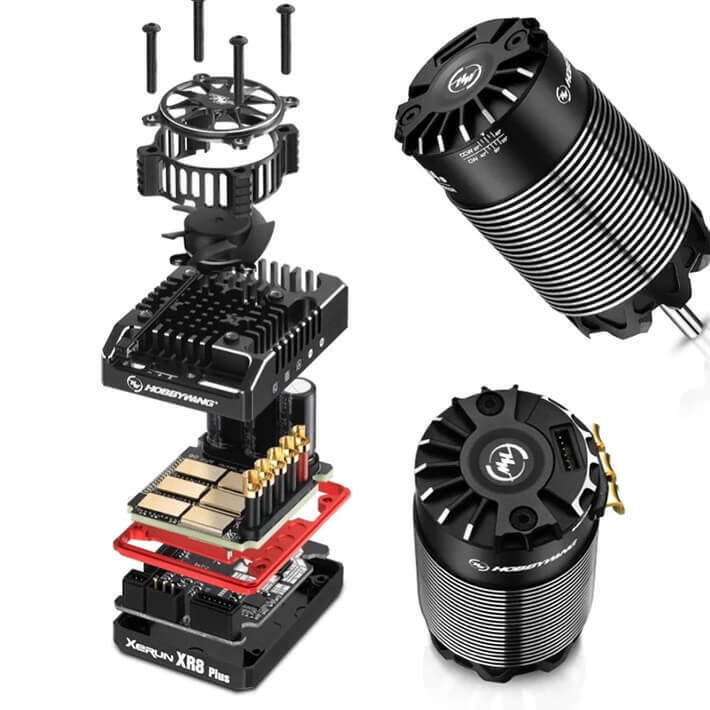

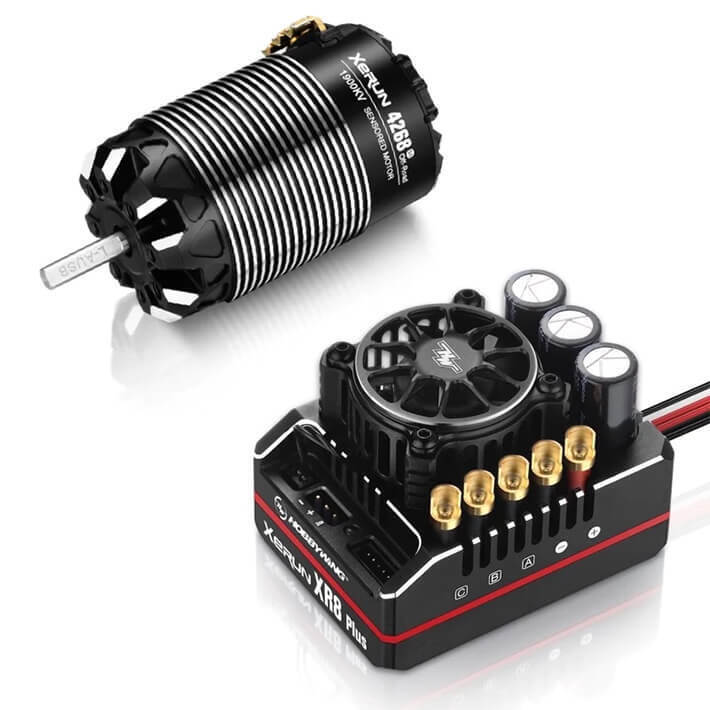

XERUN XR8 Plus G2S-4268 G3 2000KV Brushless Motor & ESC Set

Xerun XR8 ESC w/ G2S-4268 G3 2000KV Brushless Motor

Features

• Xerun 1/8th Competition G3 Motor
• Adjustable mechanical turbo timing
• Optimised motor design reduces temperature
• Error-free Hall sensor technology with an independent encoder to output accurate rotor position signal
• Smooth low rpm (no current) without cogging or torque pulses
• IP5X dust proof design
• Light-weight compared to the competition
• Built without gaps or screws on can body

XR8 Plus G2S ESC

• Full-sensored mode support with matching Hobbywing motor
• Mega-cooling effect with the patented FCD cooling system
• Durable frame-less fan design
• 1/8th power system, boost & turbo timing
• Reverse voltage protection
• RPM speed limit function with 6 different speed/rpm selections
• Compatible with the OTA module for wireless programming/upgrading & data reading
• 15A BEC with adjustable voltages from 6-8.4v allow the use of standard & high-voltage servos
• Capacitor thermal protection to prevent damage from overloads
• IP5X dust proof design
• Custom solder tabs for easy soldering

Included items

• Description QTY
• XR8 Plus G2S ESC 1
• Xerun Competition G3 Motor 1
• Black 200mm 11AWG Input Wires 2
• Black 200mm 11AWG Output Wires 3

Specifications

• ESC (Electronic Speed Controller)
  • For Motor Type: Brushless
  • Max Voltage: 22.2
  • Continuous Amps: 200
  • Motor Connectors: N/A
  • Battery Connector: N/A
  • LiPo Cut-off: Yes
  • Programmable: Yes
  • Waterproof Design: No
  • Cooling Method: Fan
  • BEC Voltage: Programmable
  • Dual Motor: No
• Motor
  • Motor Type: Brushless
  • Can Length (mm): 67.8
  • Can Diameter (mm): 42
  • KV (RPM/V): 2000
  • Shaft Diameter (mm): 5

Brushless Motor & ESC Upgrade for 1:8th Scale RCs
