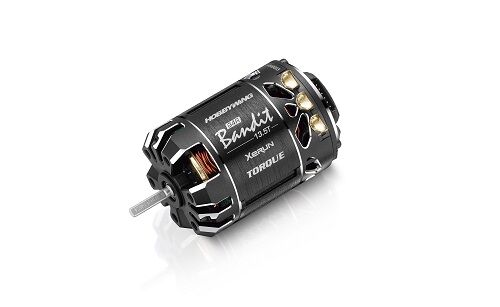

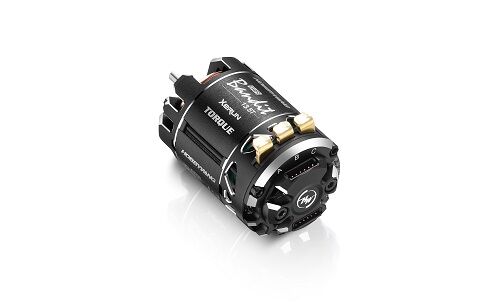

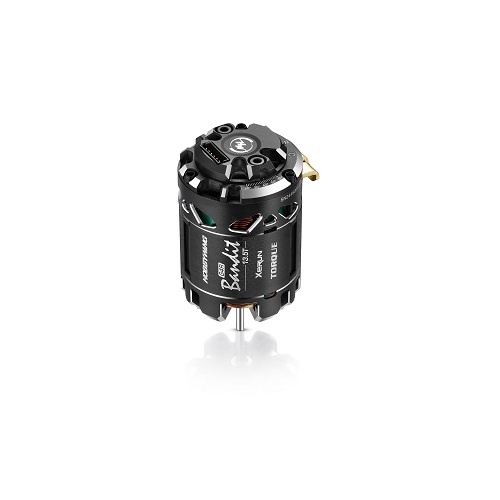

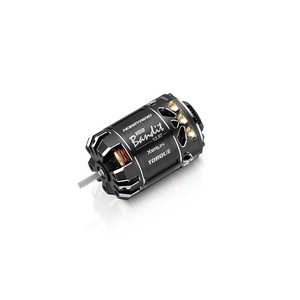

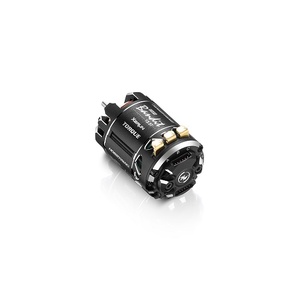

XeRun Bandit G4R 13.5T-OBL Brushless Motor - Black

The XeRun Bandit G4R is built for one purpose: domination in 1/10th scale outlaw competition. With cutting-edge cooling design, premium materials, and unmatched tuning versatility, it’s the ultimate choice for serious racers who want more speed, better efficiency, and rock-solid reliability.

Key Performance Highlights

• Lower Temps, Safer Performance – Runs up to 15°C cooler than the G4 motor under the same input power.

• Thermal Management Tech – High-conductivity epoxy fills stator coil gaps for maximum heat transfer.

• Exposed Stator Core – Enlarged, airflow-optimized outer diameter improves heat dissipation and keeps performance consistent.

• Adjustable Timing (20°–60°) – Fine-tune for max torque, RPM, or efficiency depending on your setup.

Specs (13.5T):

• KV: 3800KV

• Length: 51.9mm

• Weight: 172g

• Rotor: Φ5-12.5*24.1 stock

• Wire: 220°C high-temp enameled wire

• Epoxy: High thermal conductivity adhesive

Advanced Design Features

• Dual Hall Sensor Ports – Cleaner, flexible cable routing with aesthetic, competition-ready wiring.

• Easy Maintenance – Modular structure design for quick disassembly, cleaning, and service.

• Premium Materials:

  • 180°C explosion-proof rotor structure

  • 220°C high-temp enameled copper wire

  • High-performance iron core

  • International-grade precision bearings

  • U-shaped gold-plated curved copper bars for low resistance & easier soldering

• Enhanced Cooling at the Rear – Large vent design improves heat dissipation for the Hall sensor system.

Why Choose the Bandit G4R?

Specifically designed for 1/10 Outlaw Stock Racing
Up to 15°C cooler operation than the G4 series
Available in Torque & OBL variants for different driving needs
Built with premium race-grade components for reliability under extreme loads
Adjustable timing and modular design for ultimate tuning and serviceability
