UNO R3 Development Board with Type C USB-C USB for Arduino Projects

Powerful development board powered by ATMega328

SKU: TA0672


$24.95
RRP $49.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $23.70 ea
Buy 11 to 20: Pay $22.52 ea
Buy 21 to 100: Pay $21.39 ea
Buy 101 to 300: Pay $19.25 ea




Calculate Shipping

UNO R3 Development Board with Type C USB-C USB for Arduino Projects

Powerful development board powered by ATMega328

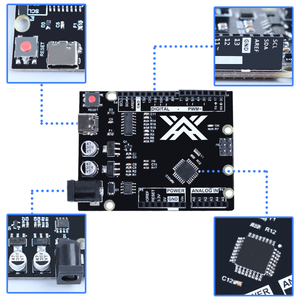

Ths Uno R3 Development Board is powered by the ATMeg328P-AU controller and has a USB-C / Type C connector which is more suited to newer PC's or laptops.

It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, a 16 MHz crystal oscillator. 2.1mm DC socket for for power and has a reset button.


Specifications:
* Controller: ATMEGA328P-AU
* USB to serial chip: CH340
* USB Port: type-C
* Input Voltage (recommended):7-12V
* Digital IO pins:14 (of which 6 provide PWM output)
* Analog input pins :6 DC
* Current per I/O Pin:40 mA
* USB Clock Speed: 16 MHz
* Operating voltage: 5V
* Input Voltage (limits): 6-20V

  • Windows 7/10
  • Mac OSX
    • v10.10.5 (Yosemite)
    • v10.11.6 (El Capitan)
    • v10.13.0 (High Sierra)
    • v10.14.5 (Mojave)
  • Linux
    • Raspbian Stretch (11-13-2018 release) for the Raspberry Pi
    • Raspbian Buster (2019-07-10 release) for the Raspberry Pi
    • Ubuntu v18.04.2, 64-bit

CH340 Drivers

Windows (EXE) -- Driver executable
Windows (ZIP) : Driver v3.4 (2016-09-27)
Mac (ZIP) : Driver v1.5 (2018-07-04)
Linux (ZIP) : Driver v1.5 (2018-03-18)

3 Month Warranty

SKU TA0672
Barcode # 9351634025954
Brand iduino
Shipping Weight 0.1000kg
Shipping Width 0.130m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000520000m3
Unit Of Measure ea
Assembled Length 0.053m
Assembled Height 0.050m
Assembled Width 0.075m

Arduino Uno Compatible

By: on 3 February 2022
Works well and easy to use
