Two Way Digital Audio Converter

Two Way Digital Audio Converter

SKU: AA6002


$38.45
RRP $79.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $36.52 ea
Buy 11 to 20: Pay $34.70 ea
Buy 21 to 100: Pay $32.96 ea




Calculate Shipping

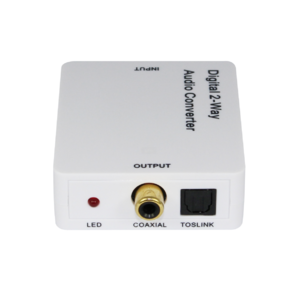

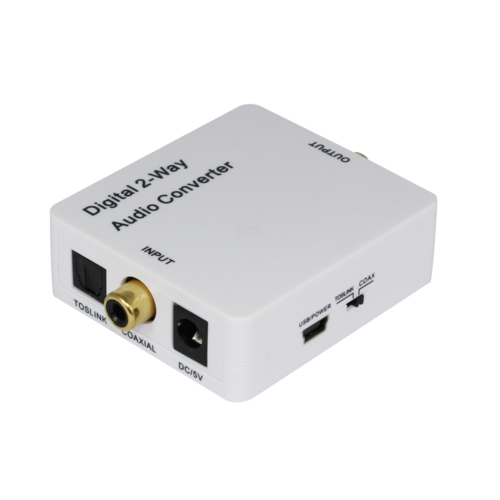

Two Way Digital Audio Converter

Converts digital Audio input to either Toslink or Coax

The Digital 2-way audio Decoder converter is a Coaxial / Toslink Fibre Optic audio converter, compact and convenient. It accepts S/PDIF audio signal input through either Coaxial cable or Toslink cable, and passes the signal (as is) to both its Coaxial and Toslink output ports. With its built-in amplification feature, it can also serve as a repeater of audio signal and extend (double) the transferring distance.

Features:

  • Supports two-way conversion: Coaxial to Toslink or Toslink to Coaxial.

  • Supports amplification of S/PDIF audio and extends the transferring distance, through coaxial and/or Toslink cables.

  • Select one input from Coaxial or Toslink input ports, and send S/PDIF audio

  • Signal to both Coaxial and Toslink output ports simultaneously.

  • Compact size and easy to install.

  • Package

  • Digital 2-way audio converter

  • 5V DC Power Supply Adaptor

  • Operation Manual

Specifications:

  • Input Ports: 1 x Coaxial RCA Jack and 1 x Toslink (optical fiber) port

  • Output Ports: 1 x Coaxial RCA Jack and 1 x Toslink (optical fiber) port

  • Dimension: 66mm x 55mm x 20 mm

  • Weight: 40g

  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

  • Relative Humidity: 20 ~ 90% RH (Non-condensing)

  • Power Consumption (Max): 1W

User Manual (click below to download)

User Manual for Two Way Digital Audio Converter

3 Month Warranty

SKU AA6002
Barcode # 9351634000159
Brand Playvision
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.070m
Shipping Length 0.120m
Shipping Cubic 0.000840000m3
Unit Of Measure ea
Assembled Length 0.100m
Assembled Height 0.070m
Assembled Width 0.120m

All good

By: on 7 August 2017
Two Way Digital Audio Converter arrived quickly. Have not hooked it up yet but sure it will do the job as predicted.
(5)

Review Two Way Digital Audio Converter

By: on 14 July 2017
I bought this item and it works very well to convert digital connection formats. It accepts a digital audio signal on Toslink or RCA connectors (selected by a small slide switch) and feeds it to both Toslink and RCA output connectors. While I am happy with what it does, and it perfectly suits my current requirements, I was misled by its title. I was expecting that "two-way" meant that two independent signals could be processed simultaneously, i.e. RCA to Toslink and Toslink to RCA. This is clearly not the case and I feel the item should be renamed "Digital Audio Format Converter / Splitter", as it serves the very useful function of splitting one digital signal into two, equally useable copies. In my mind "two-way" suggests bi-directional, which it isn't.
(5)
