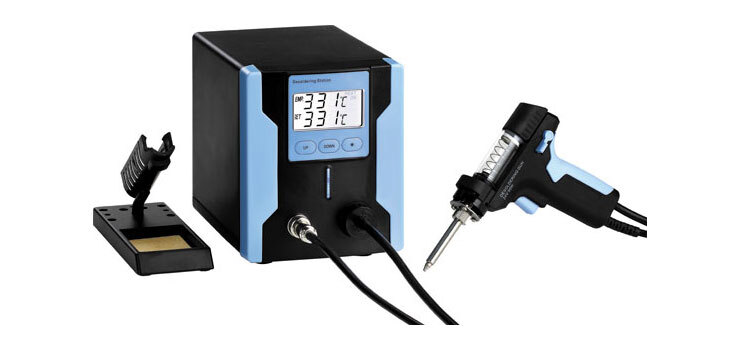

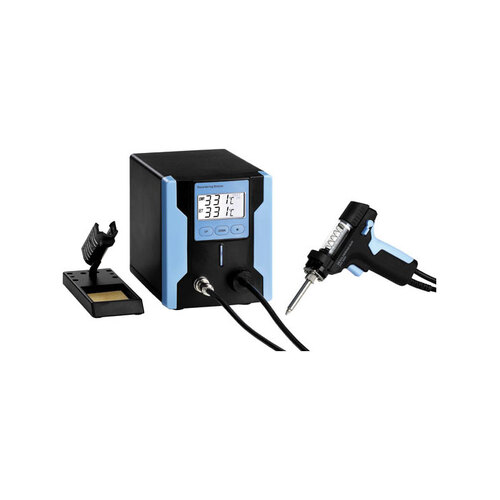

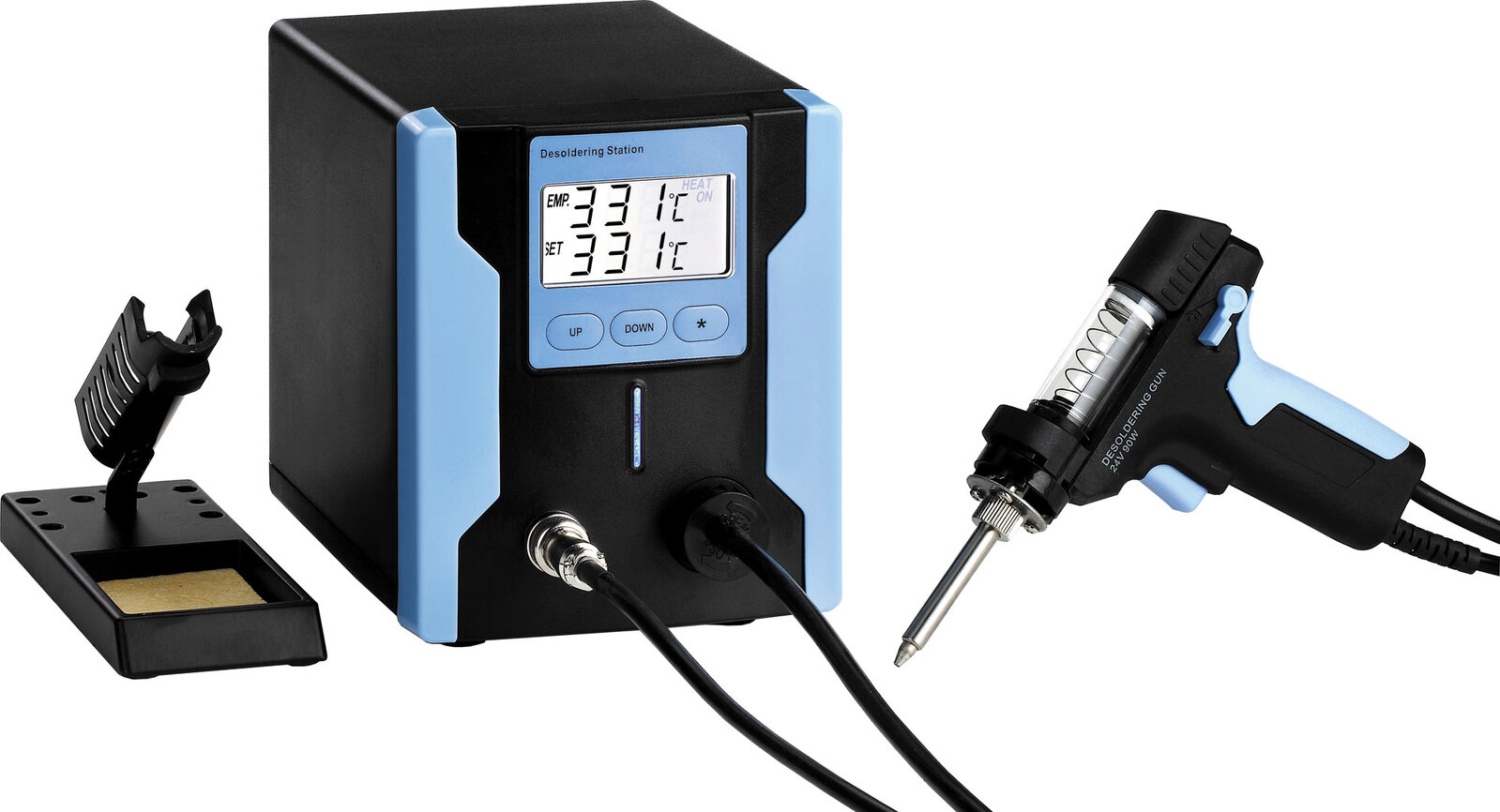

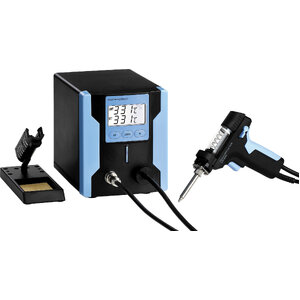

Temperature Controlled 90W Vacuum Desoldering Station

Temperature Adjustable 90W Vacuum Desoldering Station


Designed to desolder through-hole componentry quickly and efficiently. This desoldering station uses a high performance ceramic heating element and a powerful vacuum pump for extracting solder from the PCB surface. Simply­ place the tip over the solder join, press the trigger and the vacuum pump removes the solder allowing the component to be removed. The solder is then stored in a removable canister located within the handle for easy disposal. The control circuitry allows the vacuum pump to run continuously as long as the trigger is depressed. The easy to read white backlit display provides indication for set temperature and heater temperature which has an adjustment range between 160°C and 480°C. It is well suited to service centres, R&D or enthusiasts who like to tinker and repair projects! Includes 1.0, 1.2 and 1.5mm desoldering tips and nozzle cleaners.


Features

  • PTC controlled ceramic heater element
  • Burn proof rubber leads
  • 160°C to 480°C temperature adjustable
  • Dual reading backlit display
  • Easy clean solder reservoir
  • High suction vacuum pump
  • Includes three tips & nozzle cleaners
  • ESD safe
  • Stand with integrated tip cleaners
  • RoHS compliant

Specifications

  • Voltage Input: 220 - 240V AC
  • Heater: 24V Ceramic element
  • Nominal power: 90W
  • Temperature range: 160ºC to 480ºC
  • Tip to ground resistance: <0.1Ω
  • Heat up time: 80 sec to 400°C
  • Dimensions: 220W x 215D x 160Hmm
  • Weight: 6kg

    *Specifications are subject to change without notice.
