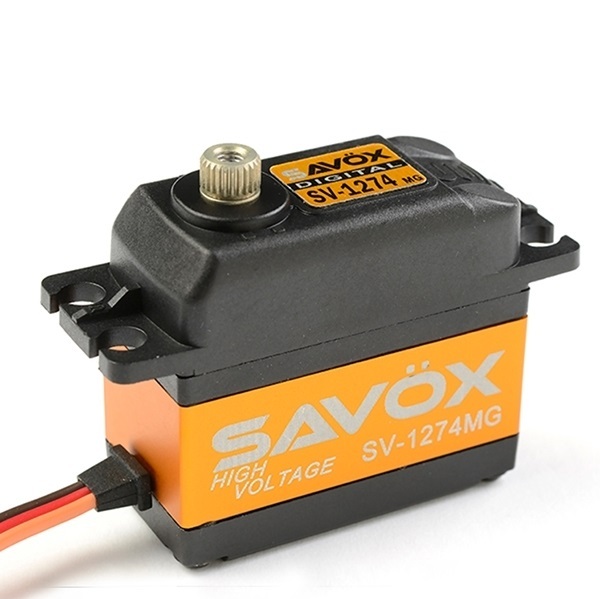

SV-1274MG Savox Standard Size HV 7kg MG .048 Heli Tail Servo

• Leading edge digital servo technology

• High efficiency Coreless motor

• Accurate and fast response

• Super high resolution

• Aluminium center case for improved motor cooling and total strength

• Ball beared

• Precision Metal gears

TECHNICAL SPECIFICATIONS

• Servo Technology: Digital High Voltage

• Input Voltage (V): 6.0V - 7.4V

• Servo Type / Size: Standard

• Motor Type: Coreless Motor

• Gear Material: Metal Gears

• Ball Beared: Ball Beared

• Servo Case: Aluminium - Composite

• Speed 60°/Sec @ 7.4V: 0.042 Sec/60°

• Torque kg/cm @ 7.4V: 9.0 Kg/cm

• Length (mm): 40.3 mm

• Width (mm): 20.2 mm

• Height (mm): 38.5 mm

• Weight (g): 61.0 g

• Connector type: JR

• Spline size: 25T Spline
