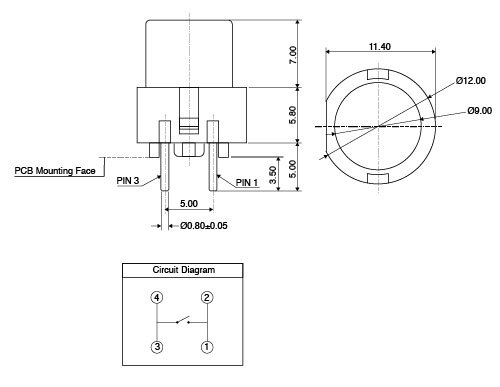

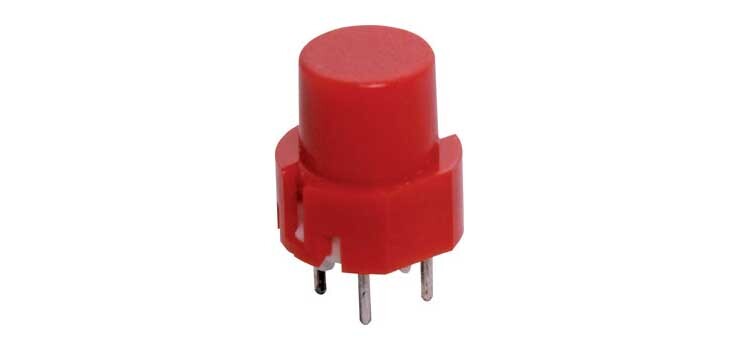

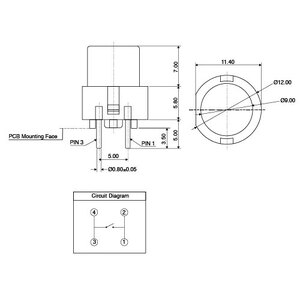

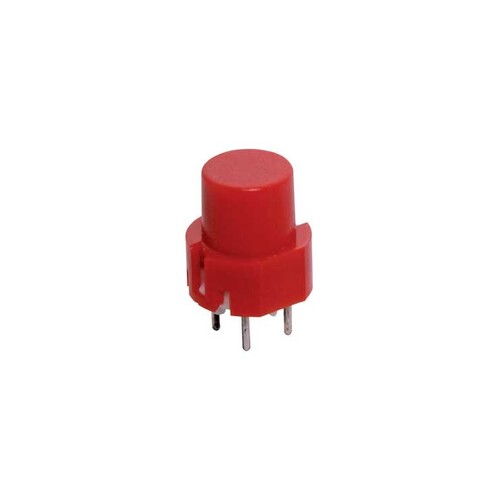

SPST Momentary Red PCB Mount Tactile Switch

Push Button Switches for your Electronic Projects!

SKU: AC3292


$1.95
RRP $3.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $1.85 ea
Buy 11 to 20: Pay $1.76 ea
Buy 21 to 99: Pay $1.67 ea




Calculate Shipping

SPST Momentary Red PCB Mount Tactile Switch

Push Button Switches for your Electronic Projects!

SPECIFICATIONS:

  • Colour: Red
  • Type: SPST
  • Action: Momentary
  • Contact Resistance: 50mΩ Max
  • Operating Force: 130±50gf
  • Actuator Diameter: 9mm
  • Insulation Resistance: 100MΩ Min
  • Dielectric Strength: 500V AC (50~60Hz) for 1 minute
  • Life (nominal current & voltage): 100000 cycle
  • Temperature Range: -10ºC to +65ºC
  • Solderability: 235ºC for 5 seconds
  • Travel: 0.80mm Max
SKU AC3292
Barcode # 9321758076583
Shipping Weight 0.0200kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.050m
Shipping Cubic 0.000150000m3
Unit Of Measure ea
