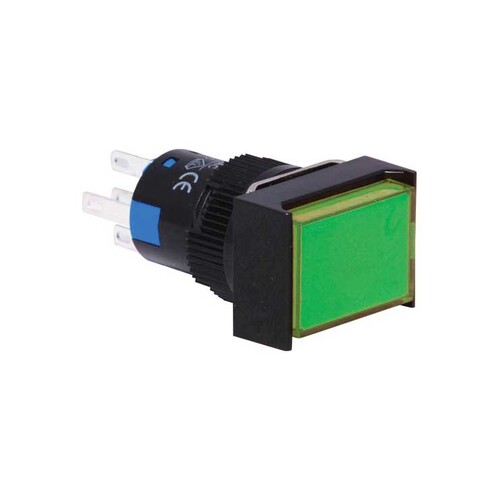

SPDT Mom. LED Green Solder Tail Pushbutton Switch
Push Button Switches for your Electronic Projects!
SKU: AC3347
$19.95
RRP $39.95
In Stock
SPDT Mom. LED Green Solder Tail Pushbutton Switch
Push Button Switches for your Electronic Projects!
SPECIFICATIONS:
- SPDT Momentary Action - Green
- Switch type: Momentary
- Body material: High grade thermoplastic
- Operating travel: 3.0mm
- Actuating force: 200-500gm
- Mech. lifetime: 1M operations min
- Electrical life: ≥50,000 operations min.
- Electrical rating: 250V AC 5A
- LED: 24V (inbuilt resistor)
- Dielectric strength: 2kVAC, 50Hz, 1 min
- Insulation resistance: ≥100MΩ
- Panel thickness: 8mm maximum
- Mounting hole diameter: 16mm
| SKU | AC3347 |
| Barcode # | 9321758132418 |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.030m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.000150000m3 |
| Unit Of Measure | ea |
