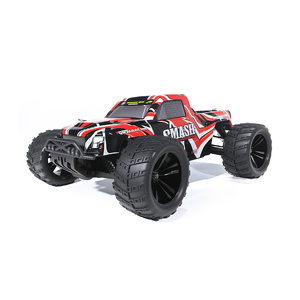

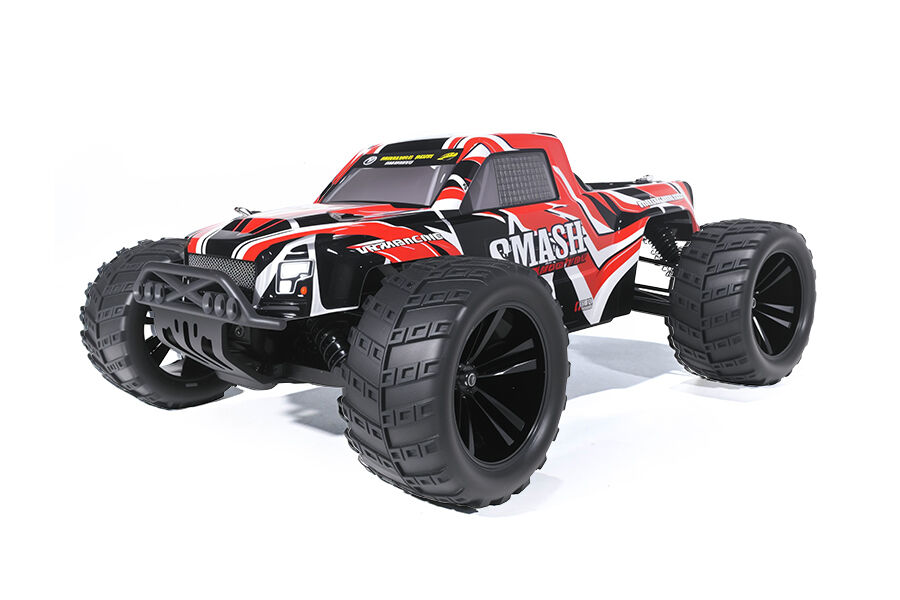

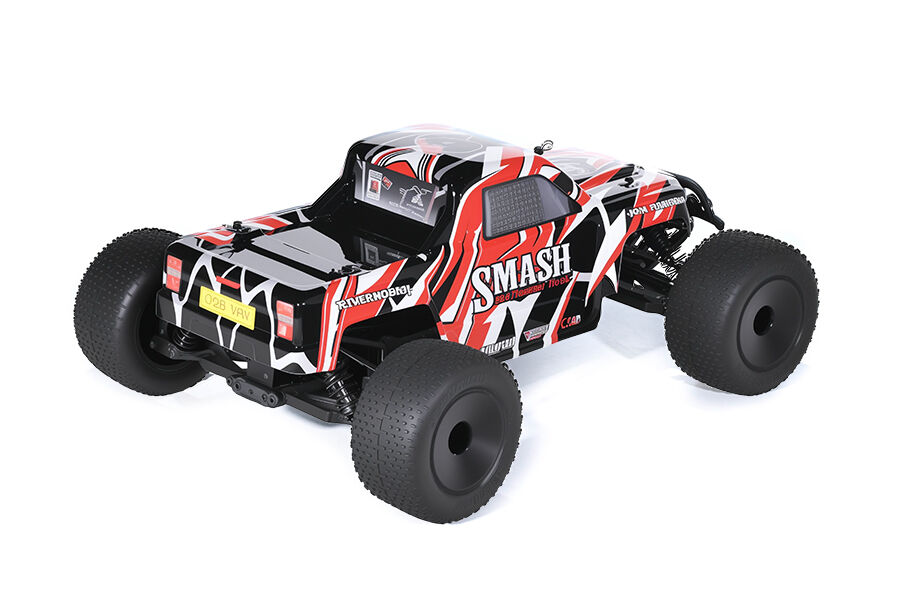

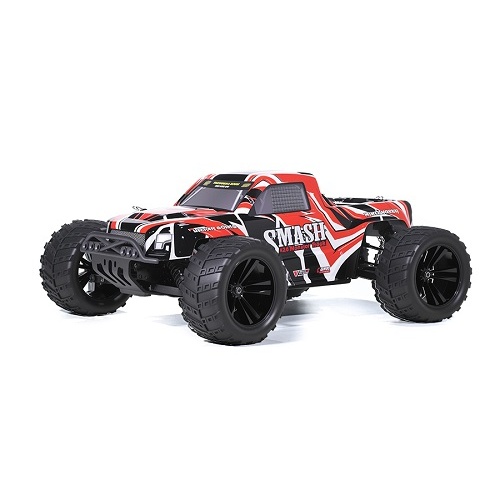

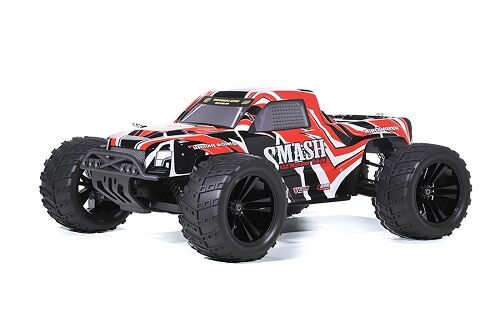

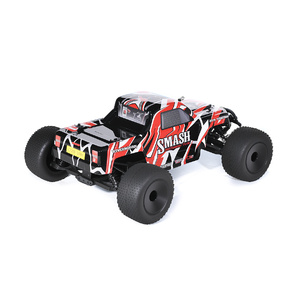

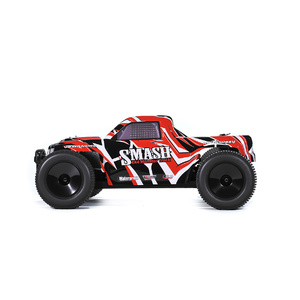

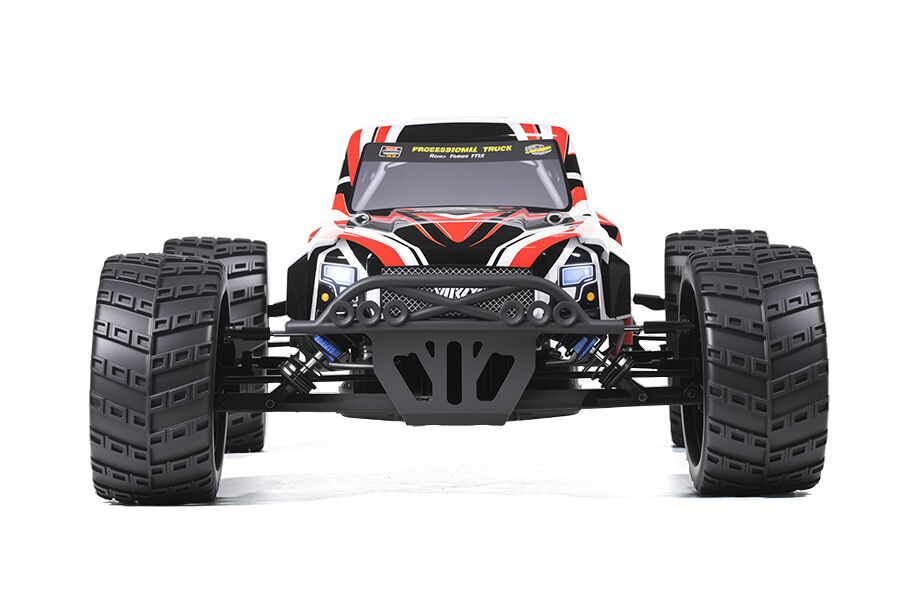

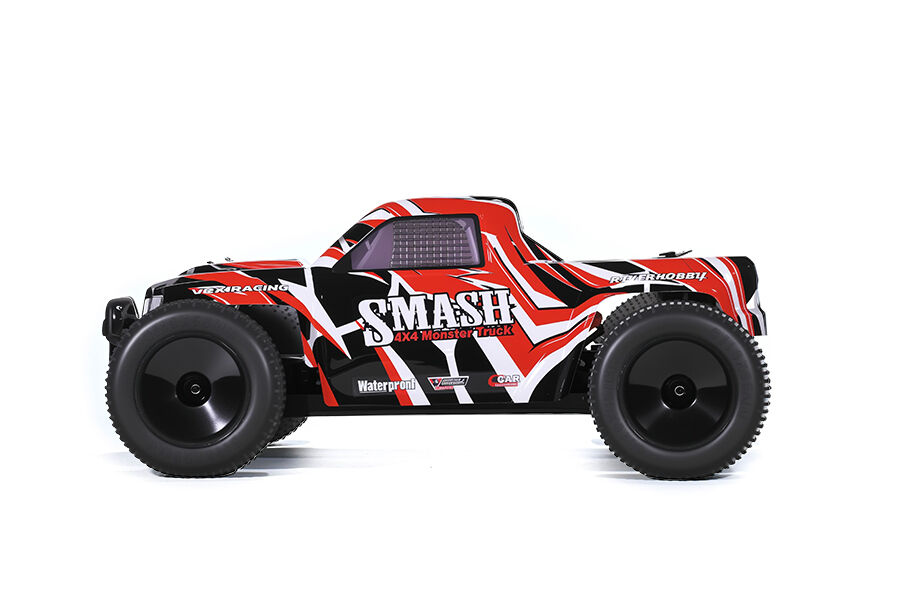

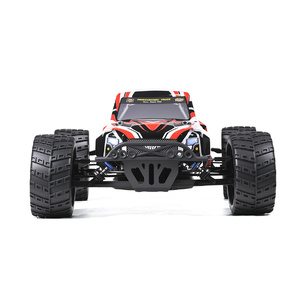

Smash 1:10 RTR 4WD Brushless RC Off-Road Truggy
Super Fast and Strong RC Monster Truck
SKU: TR1426
Smash 1:10 RTR 4WD Brushless RC Off-Road Truggy
Super Fast and Strong RC Monster Truck
The Smash 1:10 4WD Brushless Truggy features new rubber tyres and sturdy body design, alloy front/rear suspension arm holders, hydraulic shock absorbers as well as aluminium upper plate, making the car more stable.
Featuring reinforced alloy chassis, adjustable wheelbase & slipper clutch for smooth power delivery. High-performance shocks, metal-gear diffs & 115mm rugged tires conquer any terrain. Precision steering, customizable body mounts & vibration-damped motor ensure unstoppable performance!
1/10 EP SMASH Chassis comes with a 4WD system. Adjustable wheelbase on hub carrier, unique steering system with front universal joint shafts, reinforced alum materials upper plate and front & rear suspension holders to stiff the chassis plate.
Aluminum motor mount can better secure the motor, reducing vibration and heat. Slipper system on spur gear avoilding damage.The entire power system is well-protected for dependable performance on all terrain.
Adjustable body post can be used to adjust the height/width and position of the car body to adapt to different body types.
By adjusting the ground clearance of the car body, it can adapt to different road surfaces to ensure balance and stability during driving.
The sturdy structure and precise installation position of the rear axle seat ensure the stability of the vehicle during driving, and also provide accurate steering feedback.
The front and rear of shock absorber of the SMASH are equipped with high quality aluminum cover and adjustment ring, which can absorband alleviate the impact and vibration received by the vehicle during driving, thereby improving the vehicle's handling and stability.
The widened tires with a size of 115 x 55mm make the car more stable and domineering during driving.
The unique pattern design increases the friction between the tire and the ground, and the multi-level structural characteristics enhance the durability and wear resistance of the tire, extending its service life.
The SMASH is equipped with a new Diff. gearbox front and rear.
The differentials are improved with metal internal gears and cross pins to better handle any future power upgrades.
FEATURES
- 2.4GHz Proportional Radio System
- Waterproof 45A ESC and 3650 Brushless Motor for Lipo Battery
- Waterproof 3kg Steering Servo
- 7.4V 3300mAH Lipo Battery with Balanced Charger Equipped
- New Orange/Red Truck Body Option
- Alum. upper plate for high strength and nice looking
- New design wheels & tyres
- 4WD Shaft drive with slipper system
- Unique gearbox design for Low CG
- Lightweight high impact arms
- Front universal drive shafts
- Adjustable wheelbase/turn buckles
- Fully adjustable suspension including, droop, camber, toe-in, wheelbase etc
- Slipper for drivetrain damage protection
SPECIFICATIONS
- Dimensions: 440 x 330 x 190mm
- Weight: 3.9kg
- Wheelbase: 290/295mm
- Scale: 1/10
- Radio: 2.4GHz
- Servos: 3kg
- Shock Type: Composite Oil-filled Coil over spring
- Battery: 2S 7.4V 3300mAh Lipo with Deans plug
- Body: Pre-painted Polyvinyl Chloride
- Remote Control Distance: 100-150m
- Charger: Balance Charger
- Pinion Gear: 17T
- Speed Control: 45A
- Spur Gear: 65T
- Suspension: Independent
- Top Speed 55+km/h
- Motor Size: 3650 3000KV Motor
- Drive Train: 4WD
- Run-time: 10-15mins
CLICK HERE TO SEE OTHER RC TRUCKS IN OUR RANGE
Note:
Note: Stock colour may vary at time of order
Please note that this is a hobby grade high-performance remote-control vehicle.
Please refer to the Care/Warranty Tab below for more information before purchasing this product.
Damages incurred in high speed impacts and crashes are not covered by warranty.
Spare Parts:
Each RC Truck consists of many parts. We stock majority of the most commonly replaceable parts. Not all spare parts are listed on our website.
The product is supplied with an instruction manual. The manual shows an exploded parts view with spare part sku numbers are indicated. Please note of the spare part sku # and email our service team on info@auselectronicsdirect.com.au for price and availability.
Note:
Please note that this is a hobby grade high-performance remote-control vehicle.
Damages incurred by crashes, impacts and misuse are not covered by warranty.
All warranty claims are assessed on a case by case basis as per our warranty terms and conditions.
By purchasing this RC vehicle, you have agreed 1-month warranty on Rechargeable Batteries and a 3-month limited warranty terms highlighted below:
This Remote-Control Car is covered by a 3-Month Limited Warranty.
Limited includes;
- 1 month warranty on Rechargeable Batteries
- 1 month for failure or mechanical and non-electronic parts (please see Wear and Tear section below)
- 3 month for major electronic components (esc, remote controller and receiver)
Warranty excludes:
- Damages incurred to the product caused by misuse or abuse of the product, i.e. high speed impacts and crashing the product
- Tampering, or modifying of product in any kind
- Use of any unapproved 3rd party accessory with product
- Poor battery maintenance - please see Battery maintenance section below.
“Wear and Tear” parts are excluded from any Warranty when product has been used; whether in, or outside any and all parameters outlined in the products’ supplied user manual.
List of “Wear and Tear” parts:
- All Gears, their respective cogs, and Motors
- Wheels, tyres, wheel assembly and drive shafts
- Chassis, and all plastic parts
PLEASE NOTE: Not all R/C toy’s come with Power Switch. To power off your product, should it not include a power switch, is to disconnect the battery from the product
Proper Battery Maintenance include:
- Charge the battery before first time use, before or after any use, storage or use after storage
- Allow for battery to be cool to touch prior to charging
- Disconnect the battery from product when not in use. Leaving the battery connected to the product over time (when not in use) WILL damage the battery
Care
This Remote-Control Car is a “Hobby Grade” product, which contains internal and external parts that are replaceable by the end user.
Over a period of use, parts will “Wear & Tear”, which is common, and will require replacement.
(The “period” can vary depending on the environment the product is used)
The supplied user manual includes’ a Parts List for all internal and external Wear & Tear items, items surrounding the wheel assembly, as well as gears, that are available for purchase on our website.
Please contact us should you require a part not listed on our website.
| SKU | TR1426 |
| Barcode # | 9351634089949 |
| Brand | FTX |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.250m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.037500000m3 |
| Unit Of Measure | ea |
