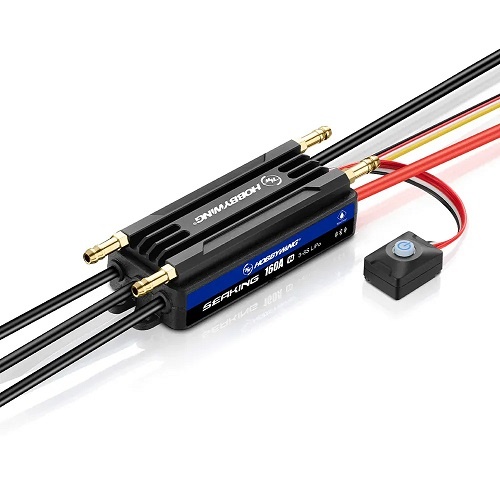

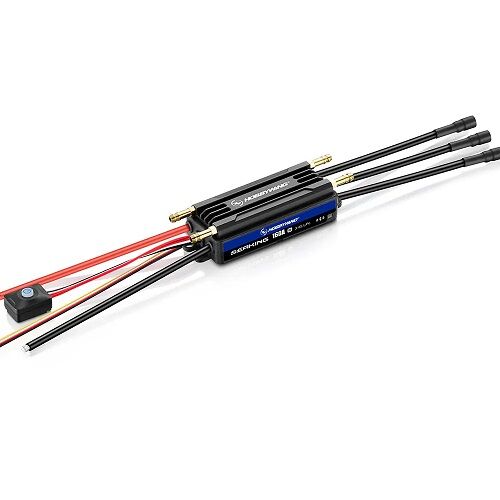

SEAKING 160A HV V4 ESC
The Hobbywing SeaKing 160A HV V4 ESC combines slim design, marine-grade waterproofing, powerful cooling, real-time tuning, and robust safety features in a top-tier racing ESC package. Whether you're R&Ding a professional racing hull or upgrading your backyard basher, it delivers standout performance and precision control for demanding water environments.
Key Features & Advantages
-
Slim & Streamlined Design: At 15% slimmer than its predecessor (SeaKing 180A V3), the slim 91 × 41 × 25.5 mm profile (<7 mm narrower) fits tighter boat builds without sacrificing power.
-
Dual-Channel Water Cooling: Keeps temperatures low under heavy use by circulating water through the ESC housing—critical for high-load marine performance.
-
True IP67 Waterproofing: Fully sealed against water jets and dust—no extra waterproofing needed. Keep the plugs dry after use to maintain performance.
-
Built-in Bluetooth with Data Logging: Connect to the HW LINK V2 app via Bluetooth to tweak settings, upgrade firmware, and view real-time or historical logs—all hassle-free without extra hardware.
-
Powerful Switch-Mode BEC: Delivers up to 8 A continual, with instant peaks to 25 A, switchable between 6 V / 7.4 V / 8.4 V—capable of driving high-output servos and accessories.
-
Freewheeling Function: Enables quicker deceleration and smoother turning, helps reduce ESC heat, and improves handling—especially useful in competitive racing.
-
Real-Time Parameter Tuning via AUX Channel: Use the yellow AUX cable to adjust settings like reverse thrust on the fly—no external programmers needed.
-
Capacitor Overheat Protection: Prevents ESC damage from overloaded capacitors, adding a layer of safety and longevity.
-
Comprehensive Safety Features: Includes protection against low voltage, signal loss, overheat, overcharge, and offers integrated spark-proof circuitry.
-
11 Programmable Settings: Tailor the ESC’s performance to your boat’s needs—perfect for tuning for speed, torque, or throttle response.
Technical Specifications
Parameter | Specification |
---|---|
Continuous / Peak Current | 160 A / 800 A (brief peaks) |
Input Voltage | 3–8 S LiPo (approx. 11.1–29.6 V) |
BEC Output | Switch Mode: 6 V / 7.4 V / 8.4 V @ up to 8 A |
Size | 91 × 41 × 25.5 mm (without water pipe) |
Weight | 220 g (with wires & output connectors) |
Application Suggestion | Up to ~120 cm boats |
Programming | Via Bluetooth and HW LINK App — firmware updates and tuning supported |
Water Cooling Tubes | Inner/Outer diameter approx. 3.0–5.5 mm |
3 Month Warranty
SKU | TR4301 |
Barcode # | 9351634088874 |
Brand | Hobbywing |
Shipping Weight | 0.0220kg |
Shipping Width | 0.091m |
Shipping Height | 0.026m |
Shipping Length | 0.041m |
Shipping Cubic | 0.000097000m3 |
Unit Of Measure | ea |
