SB50 Grey Anderson Plug kit - 8.4mm² 8AWG

Anderson SB50 Housing with Contacts kit

Anderson SB50 Plug Kit 2 Way GRY 50A 6AWG Contacts

The Anderson Power Products SB®50 plug is perfect for camping, caravan, 4X4 and other applications where a reliable, rugged, affordable power connection is needed. The 6319 kit features a 50 Amp grey housing and a pair of contacts.

Features:

• SB series 50A plug kit (120Amax.)

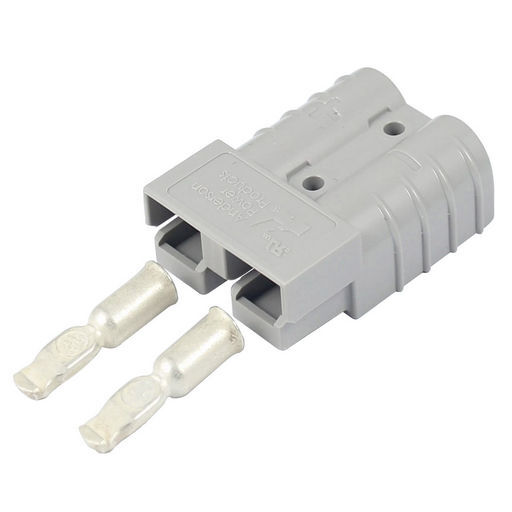

• 2x silver coated contacts

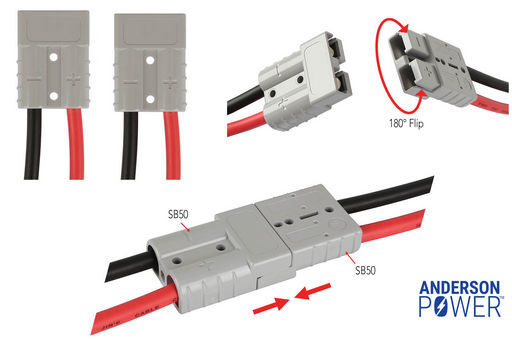

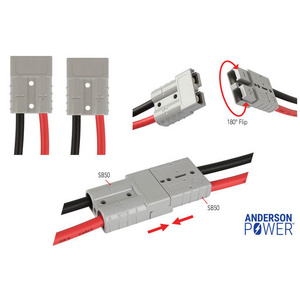

• Genderless design. Two connectors are joined by flipping one 180°, and they will mate to each other.
• Hot plugable to 600V 50A
• Case Size 16x35x48mm
• Colour denotes unique keyway
• Sold individually with contacts

Specifications:

Amps    50A
AWG    8
Colour    Grey
Contact    Silver plated
Gender    Genderless
Housing Material    Polycarbonate
Length    48mm
Positions    2
RoHS    Yes
Wire Size (mm²)    8.4mm²
Wire    4.8mmØ
IP Rating    IP64
