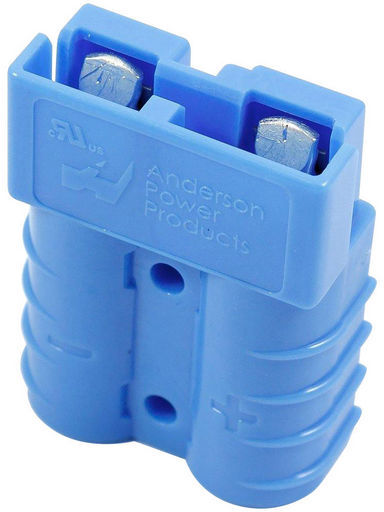

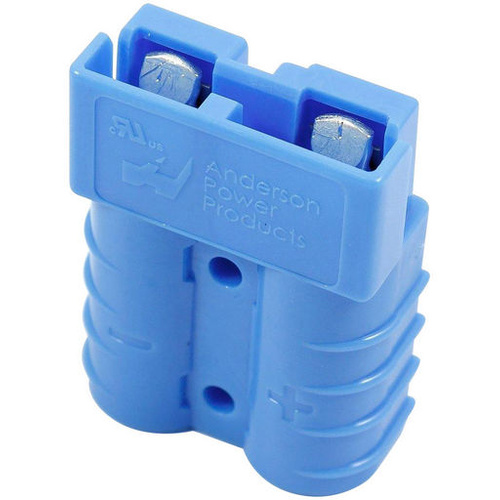

SB50 Blue Anderson Plug kit - 8.4mm² 8AWG

Anderson SB50 Housing with Contacts kit

Anderson SB50 Plug Kit 2 Way Blue 50A 8AWG Contacts

DIFFERENT COLOUR DIFFERENT KEYWAY

The Anderson Power Products SB® 50 plug is perfect for recreation, caravan, 4X4 and other applications where a reliable, rugged, affordable power connection is needed. The 6331 kit features a 50A housing and a pair of contacts.

Anderson SB50 Black Anderson Connector is based off the design pioneered by Anderson in 1953, the two pole SB® connectors set the standard for DC power distribution and battery connections. SB®50 connectors feature a one piece plastic housing using stainless steel springs to hold low resistance contacts in place. Wires sizes from #16 (1.5 mm²) to #6 (13.3 mm²) are held in the smallest of the SB® series housings. Low Resistance Tin Plated Copper Contacts Allows UL rated currents up to 120 amps. UL Rated for Hot Plugging up to 50 Amps. Great for battery or other applications where the ability to interrupt circuits is required.


• SB series 50A plug kit
• 2x silver coated contacts
• Genderless design. Two connectors are joined by flipping one 180°, and they will mate to each other.
• Colour coded, mechanically keyed housings designed to prevent cross-mating devices with different voltages
• Rated to 600V 50A
• Size 16x35x48mm
• Sold in singles

Plug colour also denotes different keyways. e.g. Red is only compatible with Red, etc. Mating keyway for the black housing is same as grey.

Specifciations:

Colour    Blue
Amps    50A
Imax    120A
AWG    8
Contact    Silver plated
Gender    Genderless
Housing Material    Polycarbonate
Length    48mm
Positions    2
Wire Size (mm²)    8.4mm²
Manufacturer    Anderson Power Products
Series    Anderson SB
Size    16x35x48mm
Wire    4.8mmØ
Type    Plug
IP Rating    IP64
