SB50 Anderson Style Connector With Screw Terminals

Screw Type SB50 Anderson Power Connector

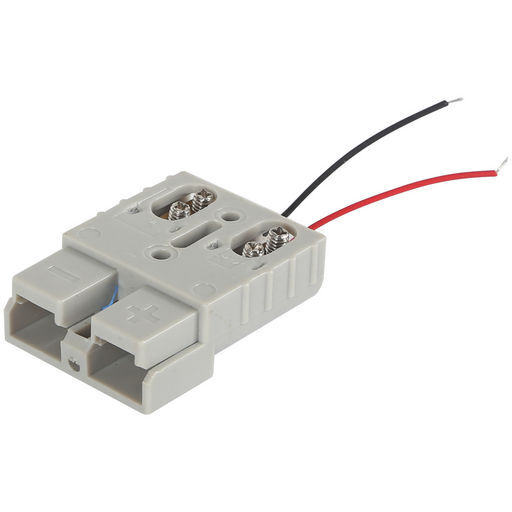

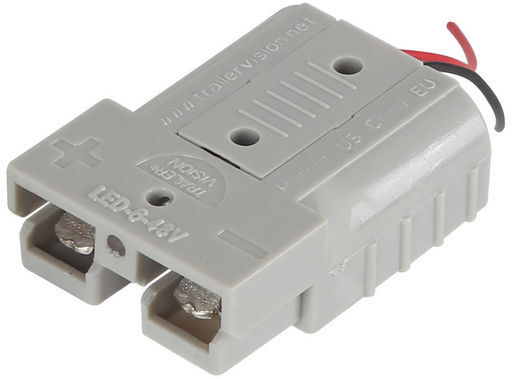

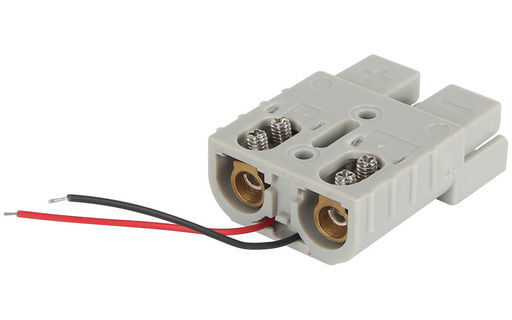

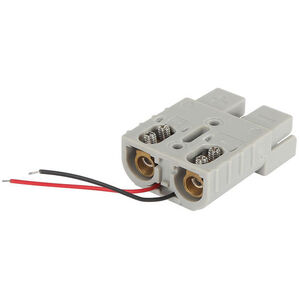

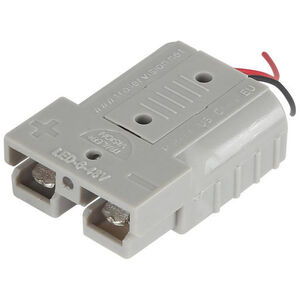

Anderson SB50 style screw terminal power connector, 50A 8AWG

WITH LED INDICATOR

Allows you to terminate your DC power cabling with simple screw terminals instead of crimped lugs. This SB50 Anderson Style genderless connector is rated to 50A and can be used to quickly terminate cabling anywhere you would normally use an SB50 Anderson connector. The four screw system keeps the cable core securely fastened in the connector without the need for soldering wires or crimping with an expensive crimp tool. It also features a very low current red LED which provides easy indication for the power state of your connection.


• Anderson SB50 Style (non-Anderson brand)
• 2x silver coated contacts up to 50A
• 4x screw cable core securely fastened
• No need for soldering and crimping.
• 50A rated quick-screw connector.
• LED power indicator ~12Vdc
• Size 16x35x48mm.
• Sold in singles.
