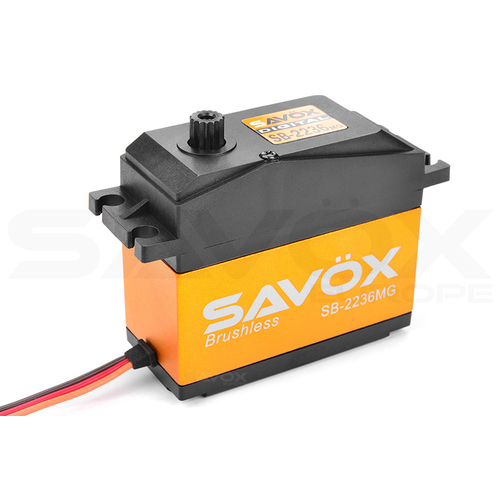

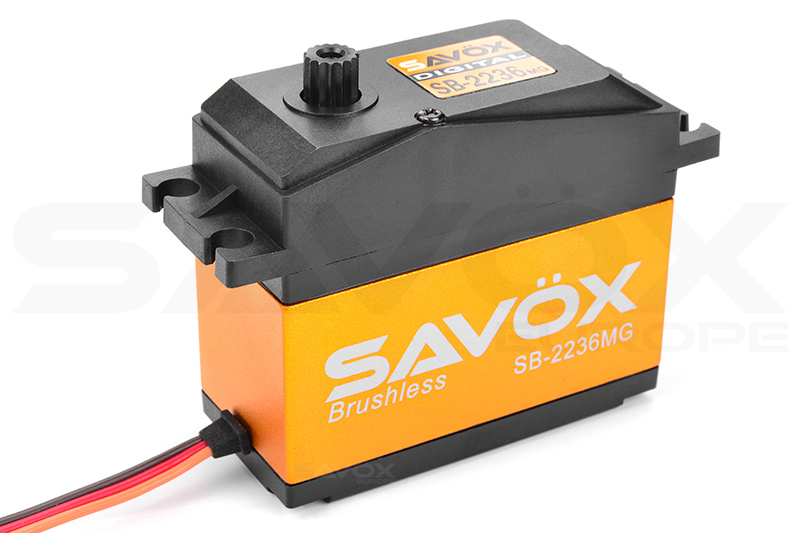

SB-2236MG Digital High Voltage Brushless Metal Gear 50KG Servo
SB-2236MG 50Kg Metal Gear Servo for 1/5 Scale RC
SKU: HS0306
$199.00
RRP $369.00
In Stock
SB-2236MG Digital High Voltage Brushless Metal Gear 50KG Servo
SB-2236MG 50Kg Metal Gear Servo for 1/5 Scale RC
- Ideal for 1/5 scale off road and large scale aircraft applications
- Strong metal gear train for added durability.
- Extremely high torque output.
- Capable of operating on high voltage.
Specifications:
- Torque @ 6.0v - 32.0kg/444oz-in
- Torque @ 7.4v - 40.0kg/555oz-in
- Speed @ 6.0v - 0.16 sec/60 deg
- Speed @ 7.4v - 0.13 sec/60 deg
- Dimensions L x W x H (mm): 65.8 x 30.0 x 57.4
- Weight: 225.0g
| Spline size: | 15T Spline |
| Servo Technology: | Digital High Voltage |
| Servo Case: | Aluminium - Composite |
| Input Voltage (V): | 6.0V - 7.4V |
| Application: | 1/5 Scale Off Road, Large Scale Aircraft |
| Motor Type: | Brushless Motor |
| Gear Material: | Metal Gears |
| Ball Beared: | Ball Beared |
| Servo Power - Torque Kg/cm: | 40.0 |
| Servo Speed 60°/sec: | 0.13 |
| Length (mm): | 65.8 |
| Width (mm): | 30.0 |
| Height (mm): | 57.4 |
| Weight (g): | 225 |
| Speed 60°/Sec @ 7.4V: | 0.13 |
| Torque kg/cm @ 7.4V: | 40.0 |
| Connector type: | JR |
| SKU | HS0306 |
| Barcode # | |
| Brand | Savox |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.030m |
| Shipping Cubic | 0.000150000m3 |
| Unit Of Measure | ea |
