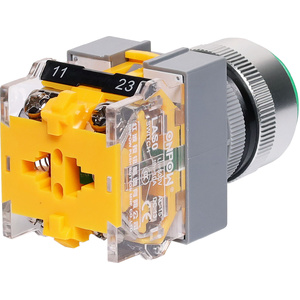

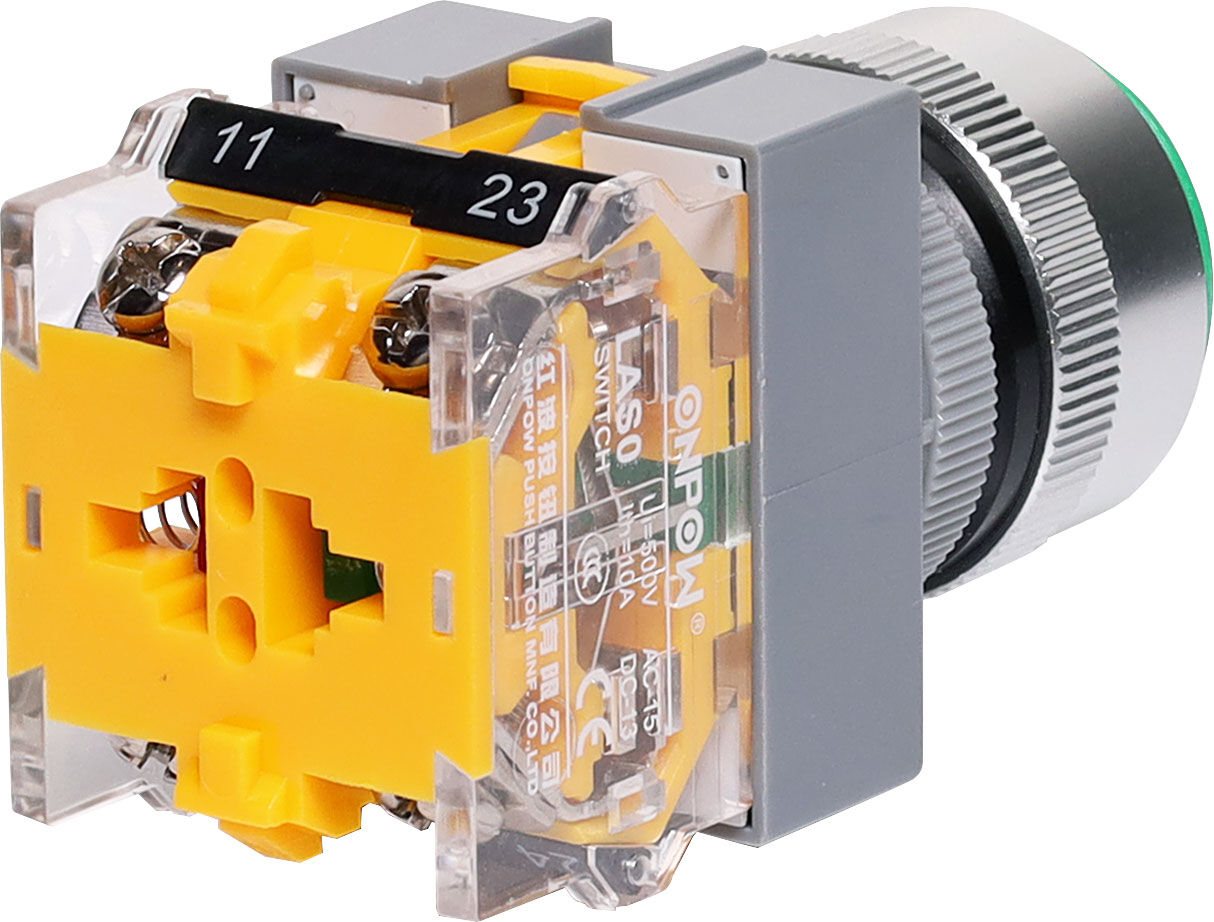

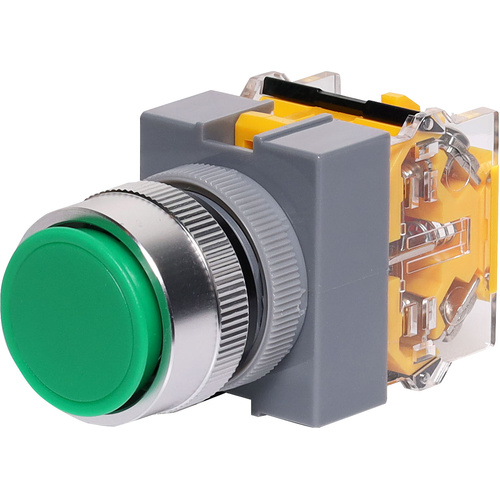

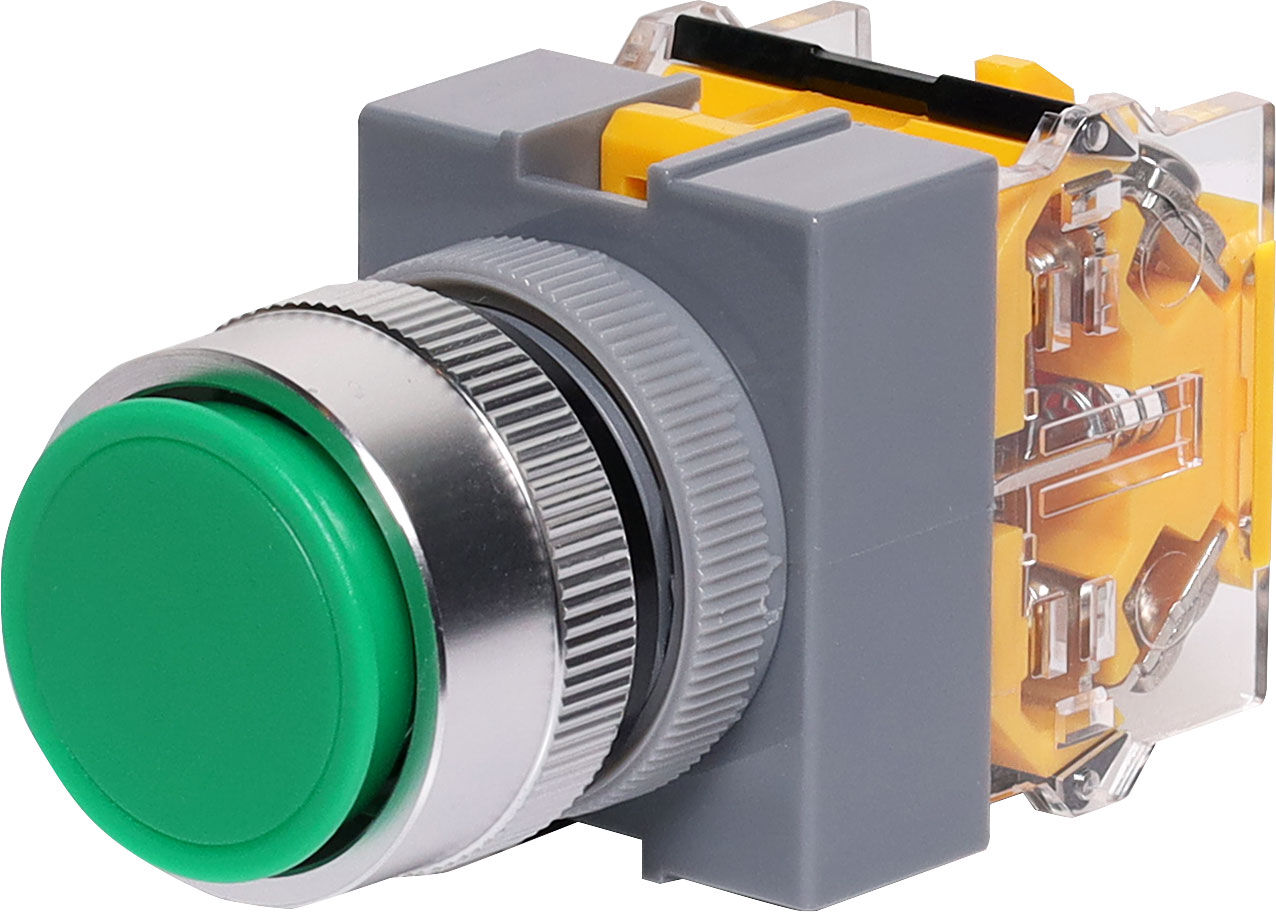

Round Green Momentary Heavy Duty Switch

Push Button Switches for your Electronic Projects!

This Heavy Duty Green 22mm Momentary Push Button Switch activates only while pressed and returns to its original position when released, unlike a "latching" switch which stays in the pressed position. It’s ideal for applications requiring temporary control, such as machinery start/stop functions. The bold green button provides clear visibility, while the rugged construction ensures durability under heavy use.


SPECIFICATIONS:

• Button Colour: Green
• Switch rating: 500V 10A
• Mechanical Life: ≥1000,000 cycles (momentary), ≥500,000 cycles (latching)
• Electrical Life: ≥50,000 cycles
• Contact Resistance: ≤200mΩ
• Insulation Resistance: ≥100MΩ (500V DC)
• Power Frequency withstand voltage: 3,000V, RMS 50Hz, 1min
• Operating temperature: -25°C to 55°C (no freezing, keep the air flowing around push button)
• Torque: ~0.6Nm applied to nut
• Operating force: ~10N
• Operating travel: ~5mm
• Front Panel protection degree: IP40
• Terminal type: Thread connection
• Diameter of welded wire: 2 x 1.5mm² Max
• General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52

• Materials:
• Contact: Silver Alloy
• Button: POM
• Body: ABS
• Base: PC
