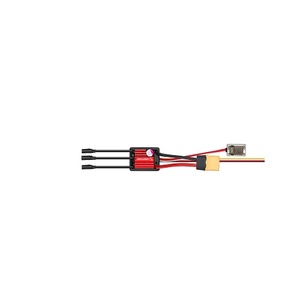

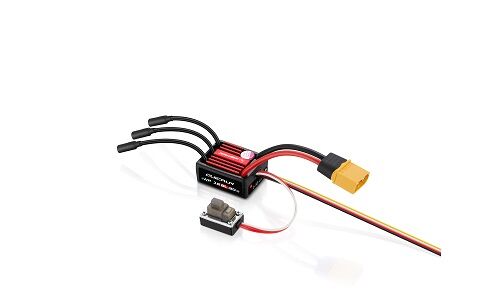

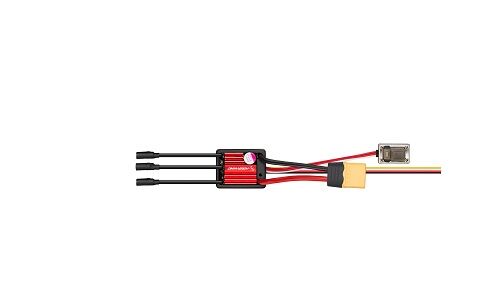

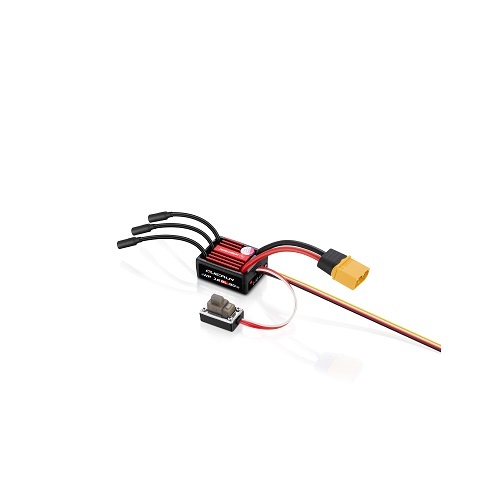

QuicRun WP16BL30 G2 Brushless ESC

Smaller Footprint. Bigger Performance. Built for the Next Generation of Mini RC.

The QuicRun WP-16BL30 G2 is Hobbywing’s next-gen upgrade to one of the most trusted ESCs in 1/16 and 1/18 scale platforms. Designed specifically for entry-level and intermediate RC enthusiasts, the G2 brings a refined, compact design, enhanced performance, and improved compatibility—without sacrificing the legendary reliability Hobbywing is known for.

---

Ultra-Compact for Clean Installs

Compared to the original 16BL30, the G2 version is significantly smaller—making installation easier and leaving more room for clean wiring and better chassis layout, especially in tight builds.

---

BEC Power That Punches Above Its Weight

With improved BEC output, the G2 can easily drive high-voltage, high-torque servos, offering faster response and more accurate steering—perfect for those demanding precise control at any scale.

---

IP67 Waterproof and Dustproof

This ESC is ready for any terrain. From wet trails to muddy tracks and sandy runs, the IP67-rated housing keeps electronics safe and performance consistent in harsh outdoor environments.

---

Flexible Programming Options

Choose how you tune your ESC—whether it's on the trail or at the bench:

• LED Program Box

• LCD Program Box Pro

• One-touch SET button
  Hobbywing gives you complete flexibility to dial in your setup the way you prefer.

---

Optimized for 1/16 & 1/18 Scale Builds

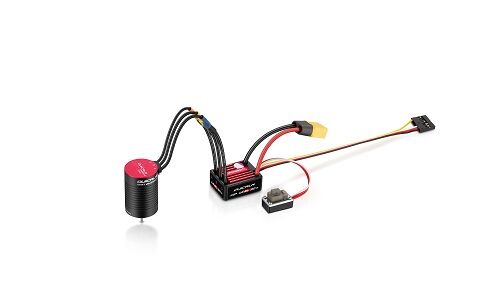

Whether you’re bashing, crawling, or racing, the WP-16BL30 G2 is designed to deliver smooth, consistent power. Pair it with QuicRun 2030 G2 or 2435 G3 motors for optimal performance and silky throttle response.

---

Beginner-Friendly Without Cutting Corners

• Plug-and-play ready

• No complex tuning or setup needed

• Hobbywing-level quality in an entry-friendly package

---

Key Benefits at a Glance

• Smaller, more compact design for easier installation

• High-voltage BEC supports stronger servos

• IP67-rated for reliable all-weather performance

• Supports 3 programming methods

• Compatible with 1/16th and 1/18th scale platforms

• Seamless pairing with Hobbywing G2/G3 motors

---

Whether you're upgrading a trail rig, race buggy, or building your first mini monster, the QuicRun WP-16BL30 G2 delivers next-level control and rugged performance in a size that fits just about anywhere.



Specifications

Scale: 1/16^th、1/18^th
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Waterproof

Specifications
Cont./Peak Current: 30A/100A
Input Voltage: 2-3S
BEC Output: 6V/7.4V,2A

Wires & Connectors
Input Wires: Black-16AWG-75mm*1,Red-16AWG-75mm*1
Output Wires: Black-16AWG-60mm*3
Input Connectors: XT60
Output Connectors: 3.5MM Gold (female)

Esc Programming Via
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
OTA Programmer: Not Supported
Programming Port: Shared with Throttle Wire

Data Recording
Extreme Value: Not Supported
Real-time Data: Not Supported
Historical Data (Graph): Not Supported

Firmware
Firmware Upgrade: Not Supported

Size & Weight
Size: 33.4*26.8*15.1mm
Weight: 38.5g( Included wires & connectors)

Applications
Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
Vehicles: 1/16^th、1/18^th On-Road & Off-Road & Short Course Truck& Monster Truck
Applicable Motor: QUICRUN 2435 G2
