Platinum 150A V5 Brushless Motor and Electronic Speed Controller Set

Brushless Motor & ESC Upgrade for RCs

Type Brushed/Brushless: BL

High Voltage/Regular: Regular

Specifications

Cont./Peak Current: 150A/180A

Input Voltage: 3-8S LiPo

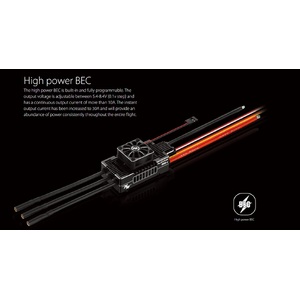

BEC Output

Switch Mode: 5-8V,10A

Wires & Connectors

Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1

Output Wires: Black-12AWG-120mm*3

Input Connectors: No

Output Connecotors: 4.0mm Gold Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

Transmitter: Not Supported

LED Program Card: Not Supported

LED Program Box: Not Supported

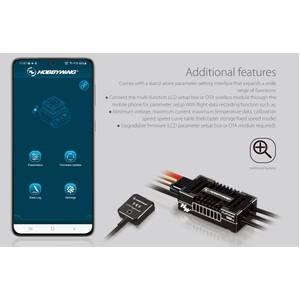

LCD Program Box: Supported

WiFi Module: Supported

Program Port: Separate Program Port

Firmware

Firmware Upgrade: Supported

Size & Weight

Size: 83x37x21mm

Weight: 140g
