Mini 28 ESC and Brushless 3500kV 1626SD Motor Combo

Buy In Bulk & Save!
Buy 4 to 10:	Pay $284.05 ea
Buy 11 to 20:	Pay $269.85 ea
Buy 21 to 100:	Pay $242.86 ea

Calculate Shipping

Description

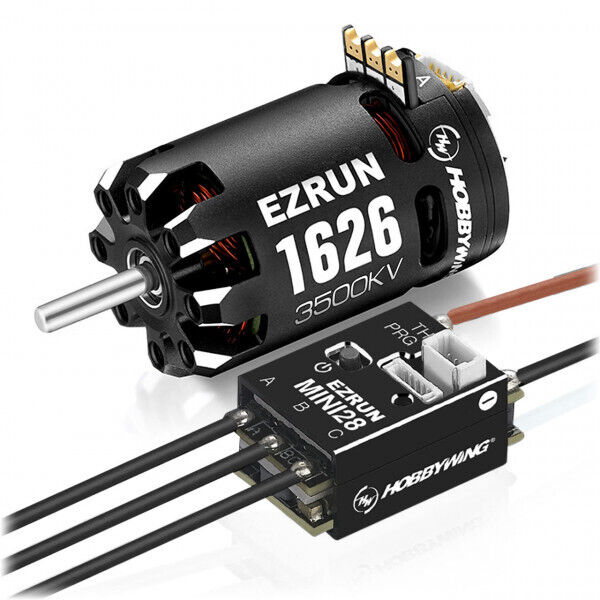

Mini 28 ESC and Brushless 3500kV 1626SD Motor Combo

3500kV Brushless Motor and Mini 28 ESC for 1/28 Scale RC

Experience fantastic action with the Ezrun-Mini Combo which is specially designed for the for usage in 1/28 RC cars. The Mini28 ESC offers over 25 different parameters that can be adjusted according to the requirements and personal taste. The matching 1626 motor with 3500kV is the ideal supplement so starting right away without having to search for a suitable motor first is no longer a problem.

Features

Specially designed for the 1/28 Mini Racing category
Small and light ESC with over 25 different parameters
Easily programmable with the LCD G2 programming box and the OTA programming module
Huge improvements in driving feel and top speed
Precise response
Engineered to meet the demands of high-performance riders
Various built-in protections
Easily dismantle the motor for maintenance work

The set includes of the following components:

ESC Ezrun Mini28 30A 2S
Electric motor Ezrun 1626 3500kV

Technical Specifications:

ESC
Current (const./peak)	30A / 80A
Cells:	2S LiPo
BEC Voltage:	6-7.4V (adjustable), 3.5V Switch-Mode
Dimensions:	22.7x14.2x11.8mm
Weight:	5g (without Kabel)
Application:	1/28 Mini
Motor
Type:	Sensored
Poles:	2
RPM/Volt:	3500kV
Outer Diameter:	16mm
Length:	26mm
Shaft Diameter:	2mm
Weight:	18g
Application:	1/28 Mini

Delivery:

1x Ezrun Mini28-ESC
1x 1626er Motor (3500kV)
1x Manual

Care/Warranty

3 Month Warranty

Specifications

SKU	TM0500
Barcode #	6938994407564
Brand	Team Associated
Shipping Weight	0.4000kg
Shipping Width	0.200m
Shipping Height	0.030m
Shipping Length	0.200m
Shipping Cubic	0.001200000m3
Unit Of Measure	ea
