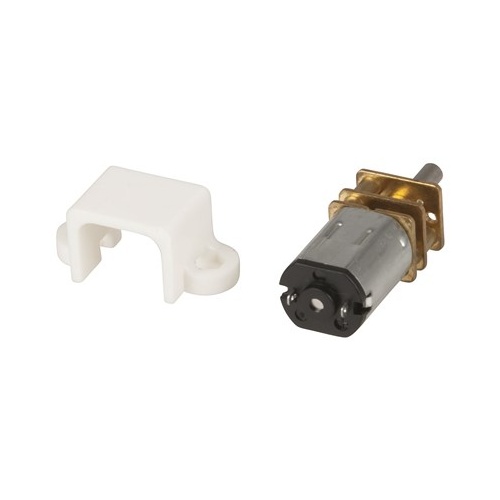

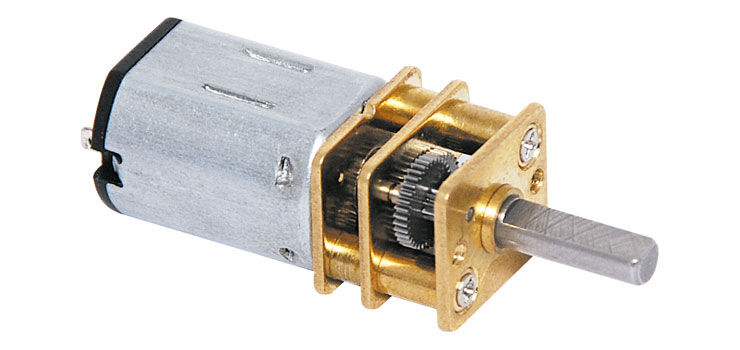

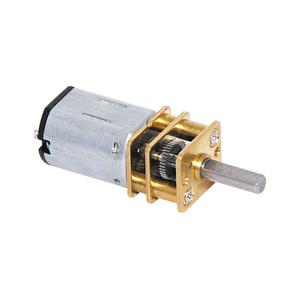

Micro 30:1 600RPM 6V Metal Geared Motor
6V Geared Motor for Car Chassis and Robot Projects
SKU: TA0378
$17.95
RRP $39.95
In Stock
Micro 30:1 600RPM 6V Metal Geared Motor
6V Geared Motor for Car Chassis and Robot Projects
A small gearhead motor with bracket suits robotics and other maker applications. It runs from 6VDC, travels counter-clockwise, and provides a 1:30 gear ratio with a rated speed of 600RPM. Micro wheels to suit are available separately.
• Counter-Clockwise Rotation
• 0.5kg Torsion
Specifications:
Width : 13mm
Height : 10mm
Depth : 37mm
AC Voltage : 5.4V, 6.6V
DC Current Draw : 35mA, 40mA
Motor Type : Gearhead
Motor Nominal Voltage : 6V
No load current : 35mA
No load RPM : 600RPM
Max efficiency RPM : 600RPM
Max. efficiency current : 40mA
Dimension details : Mount Dimensions
Width : 26mm
Height : 12mm
Depth : 12mm
CLICK HERE TO SEE OTHER STARTER KITS
CLICK HERE TO SEE OTHER ARDUINO SENSORS
| SKU | TA0378 |
| Barcode # | 9351634013111 |
| Brand | iduino |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.030m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000300000m3 |
| Unit Of Measure | ea |
