Mega 3D Printer Kit for Arduino Projects

Shortform 3D printer kit

SKU: TA0021


$99.00
RRP $199.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $94.05 ea
Buy 11 to 20: Pay $89.34 ea
Buy 21 to 100: Pay $84.88 ea




Calculate Shipping

Arduino 3D Mega Printer Kit

Shortform 3D printer kit

Full Graphic Smart Controller

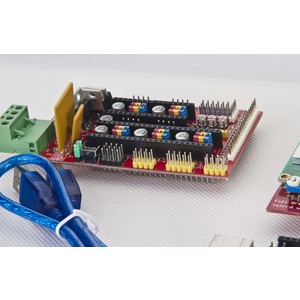

The full graphic smart controller board is designed to fit the entire electronics needed for a RepRap in one small package for low cost.
RAMPS interfaces an Arduino Mega with the powerful Arduino MEGA platform and has plenty room for expansion. The modular design includes
plug in stepper drivers and extruder control electronics on an Arduino MEGA shield for easy service, part replacement,upgrade-ability
and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to
the top of the stack.

(2) Arduino Mega 2560 R3 Development Board
The Mega 2560 R3 Develpment baord allows you to use all the Arduino open source platform to create or learn, program and create amazing projects!

Compared with UNO R3, this is with main Chip ATmega2560, with more I/O Pins, and additional 10 PWM output, of course, the EEPROM is also with larger space.

(3) A4988 StepStick Compatible Stepper Motor Driver Module
A4988 driver is a carrier board or breakout board for Allegro's A4988 DMOS Micro stepping Driver with Translator and Overcurrent Protection by Pololu;
we therefore recommend careful reading of the A4988 data sheet before using this product. This stepper motor driver lets you control one bipolar stepper
motor at up to 2 A output current per coil.

(4) RAMPS LCD12864 Controller
This full graphic Smart Controller contains a SD-Card reader, an rotary encoder and a 128 x 64 dot matrix LCD display. You can easy connect it to your
Ramps board using the "smart adapter" included. After connecting this panel to your Ramps you don't need your pc any more, the Smart Controller supplies
power for your SD card. Further more all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller.
Print your 3D designs without PC, just with a g-code design stored on the SD card.

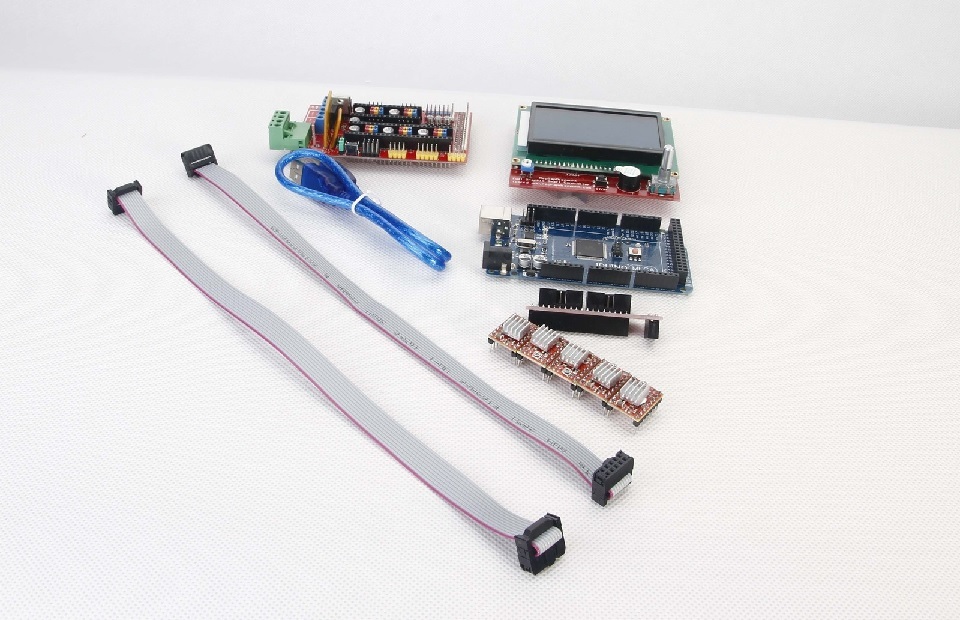

Package Contents:

Kit list:

1.3D control board 12864 *1
2.3D control board 1.4 *1
3.3D control board 2560 *1 R3
4.3D 4988 *5
5.3D adapter *1
6.3D transfer line *2
7.USB line *1

CLICK HERE TO SEE OTHER STARTER KITS

12 Month Warranty

SKU TA0021
Barcode # 9351634008513
Brand iduino
Shipping Weight 0.3700kg
Shipping Width 0.150m
Shipping Height 0.070m
Shipping Length 0.220m
Shipping Cubic 0.002310000m3
Unit Of Measure ea
