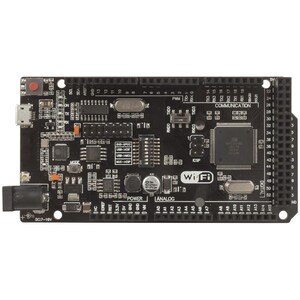

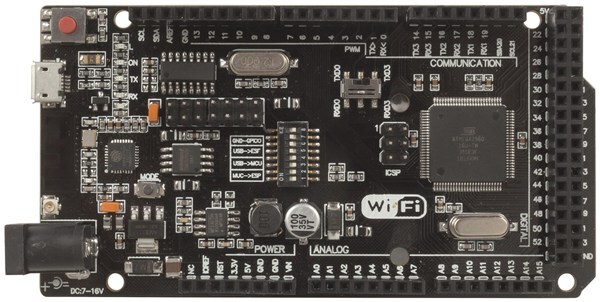

Mega 2560 R3 Development Board with Wi-Fi for Arduino



Mega Board with ESP8266 Wifi Function



MEGA r3 development board with an integrated ESP8266 is an Arduino®-Compatible board which makes it easy to connect your projects to the cloud without the need for additional shields. Features the ATMega2560 and standard MEGA layout, and includes a set of DIP switches to configure the serial connections. It boasts more IO pins, more memory, more PWM outputs, more analog inputs and more serial ports than the UNO board. When you have a project that just needs more inputs, outputs and memory than the Duinotech Classic (UNO) can deliver, the MEGA has them in spades. And with 8 times the program memory, you have the room to write much larger programs to take full advantage of the increased IO. Despite its elongated size, standard shields will still drop straight onto this board.

Uses a Micro-B USB lead such as for connecting to the computer and uploading sketches.

Specifications

CPU : ATMega 2560 Rev 3

RAM : 8KB

Flash Memory : 256KB

RAM Type : SRAM

Length : 53mm

Width : 108mm

Height : 15mm

USB Voltage Input : 0V, 5V

Packaged Volume : 0.21l

Packaged Weight : 0.05kg

Packaged Length : 13cm

Packaged Width : 11cm

Packaged Height : 1.5cm

Supported USB Standards : USB 2.0

USB Port Types : USB Type B

Number of USB ports : 1 ports

Microcontroller : ATMega 2560 Rev3

Fully arduino compatible : true

Program memory : 256KB

Board Inputs : 16 Analogue Inputs54 Digital Pins

Board Outputs : 54 Digital Pins with 15 PWM



Dowload the latest Drivers

For Windows

Fow MAC
