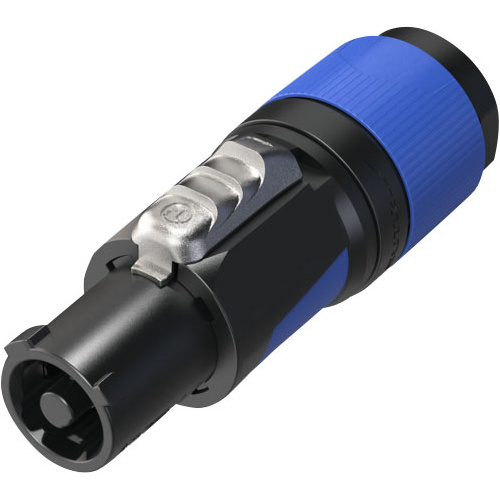

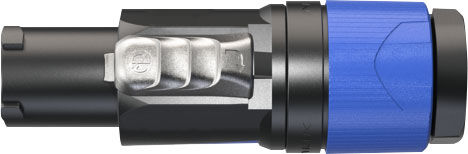

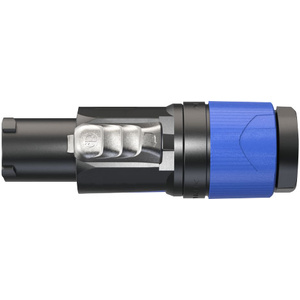

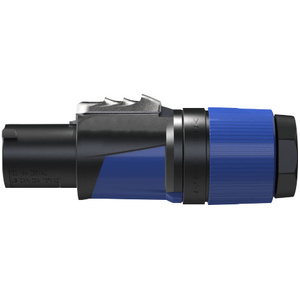

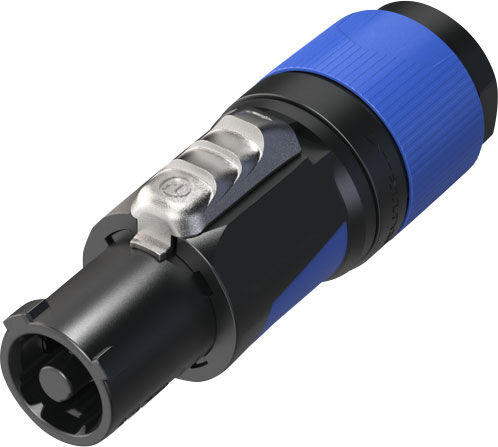

Line Socket 240V Mains 16A

240V Mains Power

Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications. NAC3FXXA-W-S. SAA approved.

FEATURES:

• IEC EN 60320-1 / UL 60320-1 / CSA  C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
• Ergonomic design with slip-proof two-component moulded housing
• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
• Superior NEUTRIK quality standard, extremely robust and reliable
• Easy and reliable twist lock system
• Improved kink protection by two-component bushing

SPECIFICATIONS:

• Electrical
• Contact resistance: ≤ 2 mΩ
• Dielectric strength: > 3 kVac (after mating cycles)
• Insulation resistance: > 10 GΩ (initially)
• Number of electrical contacts: 2 + PE
• Rating Europe: EN 60320-1: 16 A 250 V AC, CBC
• Rating USA / Canada: cUL 60320-1: 20 A 127 V AC, CBC

• Mechanical
• Cable O.D.: 6 - 12 mm
• Lifetime: Typically 5000 mating cycles
• Wire size (mm²): 1.5 – 2.5 mm²
• Wire size (AWG): 16 – 12 AWG
• Locking device: Twist lock
• Termination: Screw type terminals

• Material
• Contact plating: Ag
• Contacts: Copper Alloy
• Insert: Polyamide (PA6.6)
• Locking Element: Zinc diecast
• Shell: Polyamide (PA6) / TPE
• Strain relief: Polyketone
• Bushing: Polypropylene / TPE

• Environmental
• Temperature range: -33 °C to +80 °C
• Protection class: IP20
• Flammability acc. to UL94: V-0

  *Specifications are subject to change without notice.

NOTE:

When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.
