Leonardo Tiny Atmega32U4 Main Board

Tiny size version of the Leonardo Board

SKU: TA0824


$22.95
RRP $46.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $21.80 ea
Buy 11 to 20: Pay $20.71 ea
Buy 21 to 100: Pay $18.64 ea




Calculate Shipping

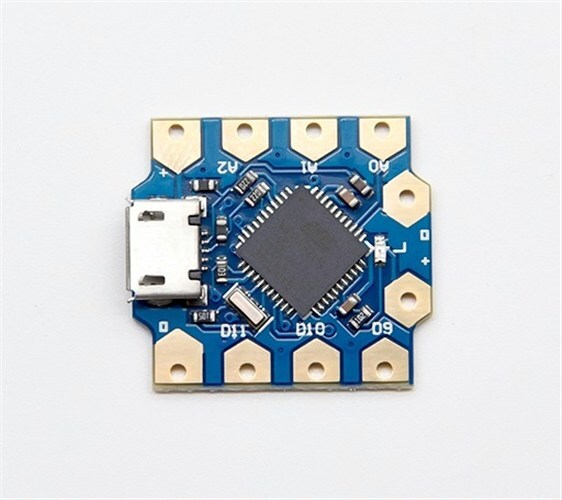

Leonardo Tiny Atmega32U4 Main Board



Tiny size version of the Leonardo Board



This Arduino compatible development board is a smaller version of the popular Leonardo. It measures just 23 x 20mm and is a great choice when you need a low cost and compact Arduino project. The power and three of its' analogue and digital pins go to large gold-plated tabs, making them suitable to connect alligator clips or for sewing onto clothing with conductive thread (sold separately). The board features a 32u4 ATMEL processor with a 16MHz clock, 10 x pins, consisting of  4 x  power, 3 x analogue I/O pins, and 3 x digital I/O pins.

Specifications:
• 16MHz Clock Speed
• 32kB Flash Memory (4kB used by bootloader)
• 1kB EEPROM Memory
• Power in 5VDC via Power In Pins
• Power Out 5VDC via Power Out Pins
• Digital Output x 3
• Analogue Output x 3

Specifications

RAM : 32kB
Flash Memory : 1kB
Width : 23mm
Height : 4mm
Depth : 20mm
USB Voltage Input : 5V, 5V
Packaged Volume : 0.15l
Packaged Weight : 0.01kg
Packaged Length : 10cm
Packaged Width : 10cm
Packaged Height : 1.5cm
Microcontroller : ATmega32u4
Program memory : 32KB



CLICK HERE TO SEE OTHER DEVELOPMENT BOARDS

CLICK HERE TO SEE OTHER PRODUCTS FOR ARDUINO PROJECTS



3 Month Warranty

SKU TA0824
Barcode # 9351634068098
Brand iduino
Shipping Weight 0.1000kg
Shipping Width 0.130m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000520000m3
Unit Of Measure ea
Assembled Length 0.053m
Assembled Height 0.050m
Assembled Width 0.075m
