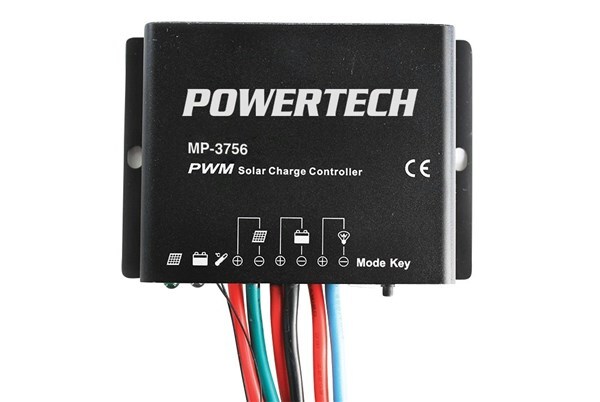

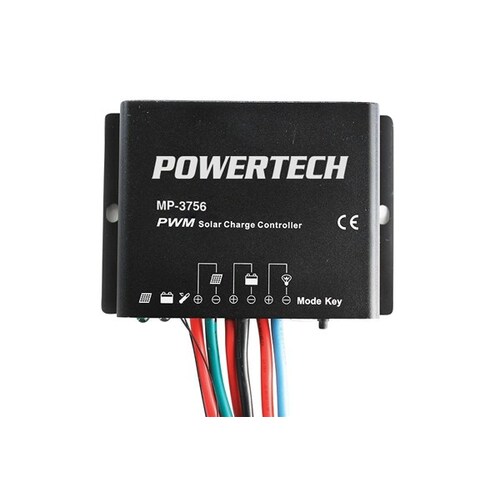

IP67 10A PWM Solar Charge Controller 12/24V with Timer Function

Waterproof 10A PWM Solar Charge Controller 12/24V

A highly efficient fully automatic 12/24V PWM solar charge controller that adopts digital technology which increases battery lifetime and improves solar system performance. With a robust industrial housing and IP67 protection this charge controller is suited to most applications especially extreme outdoor environments where corrosion, dust and water ingress are prevalent. Capable of automatically detecting day/night it comes with an inbuilt timer which can be set to operate loads at specific intervals or manually in the night.

Features:

- High efficient PWM charging

- Automatically recognises day/night

- LED indicators for PV and battery status

- Intelligent timer function with 1 to 13 hours option

- PV reverse polarity protection

- Battery overcharge, over discharge, reverse polarity and overheating protection

- Load overload and short circuit protection

- Voltage: 12/24VDC Automatic

- IP Rating: IP67

Specifications

Packaged Volume : 0.7l

Packaged Weight : 0.36kg

Packaged Length : 11cm

Packaged Width : 12.4cm

Packaged Height : 5.1cm

Length : 109mm

Width : 75mm

Height : 26mm

Weight : 410g

Operating Temperature : -35°C, 55°C

Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust

Liquid/Moisture Ingress Protection : 7 - Immersion up to 1m

IP Rating : IP67

DC Voltage : 12V, 24V

DC current rating : 10A

Input Type : Flyleads

Output Type : Flyleads

Max Solar Panel Array : 120W, 240W

Max PV Open Circuit Voltage : 50V

Max Charging Current : 10A

Max Load Current : 10A

Charge Controller Technology : Pulse Width Modulated (PWM)
