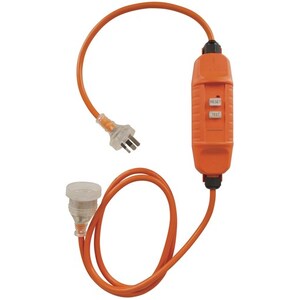

IP66 Inline RCD Circuit Breaker Extension Cable 1.8m

Waterproof Inline RCD Circuit Breaker

Protect yourself at home or the worksite with this handy inline RCD circuit breaker with 1.8m lead. The built-in Residual Current Device (RCD) provides the best method to protect against electrocution and equipment damage. Faster acting and improved safety compared with standard over-current circuit breakers. It has an IP66 rain and dustproof rating, and includes test and reset buttons. Meets Australian and New Zealand safety approvals.

Features:

- Automatically shuts off power when a fault occurs

- IP66 rain and dustproof rating

- Durable

RCD Specifications:

Residual Non-Operating Current: 15mA

Residual Operating Current: 30mA

Max. Tripping: ≤0.1S

IP Rating: IP66

Length: 1.8m

Specifications

AC current rating : 10A

IP Rating : IP66

Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust

Liquid/Moisture Ingress Protection : 6 - Powerful water jets

Cable length : 1.8m

Mains Voltage Range : 220V, 240V

Frequency : 50Hz, 60Hz

Rated for AU Mains : true

Mains Item connection : Mains AU/NZ 3 Pin

Packaged Volume : 5.81l

Packaged Weight : 0.68kg

Packaged Length : 37.7cm

Packaged Width : 23cm

Packaged Height : 6.7cm

Type of Protection : Residual current device (RCD)

Reset Method : Manual Pushbutton

Protection Test Button : true

RCD Operating Current : 30mA

RCD Non-operating Current : 15mA

RCD Trip Time : 100ms
