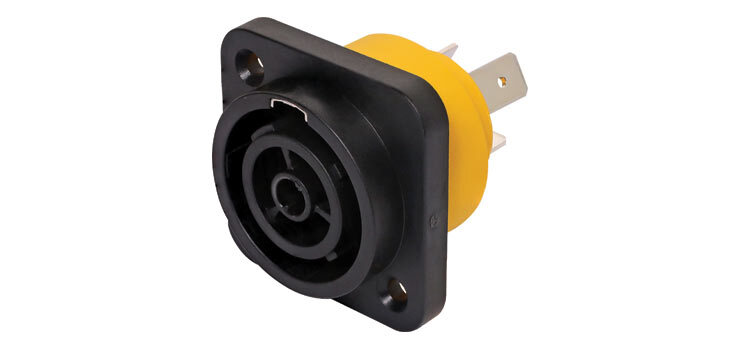

IP65 Power Out 16A Chassis Connector

240V Mains Power

Extra heavy duty weatherproof (IP65) Amphenol Power connector as used in commercial heavy duty power applications. Power In. HPT-3-FDW 16A 250V. SAA approved.

FEATURES:

• Locking 16 A / 250 V AC appliance coupler
• 3 contacts for line, neutral and premating safety ground
• Fast and easy twist lock latching system
• Extremely robust and reliable

SPECIFICATIONS:

• Current Rating: 16 A
• Voltage Rating: 250 V
• Mounting Angle: Straight
• Mounting Style: Panel
• Color: Black
• Number of Ports: 1 Port
• IP Rating: IP65
• Series: HPT
• Flammability Rating: UL 94 V-0
• Housing Material: Thermoplastic (TP)
• Maximum Operating Temperature: + 80 C
• Minimum Operating Temperature: - 25 C
• Termination Style: Solder

NOTE:

When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.
