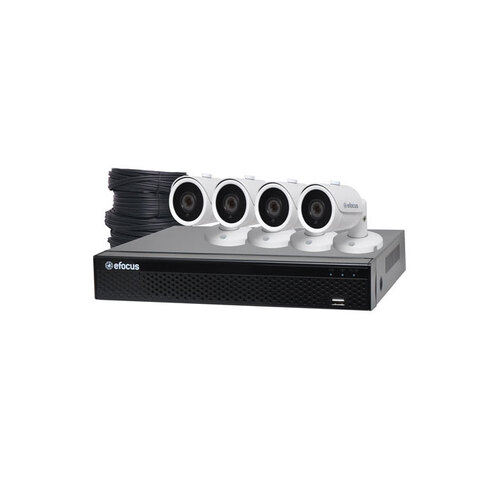

Hybrid DVR & 4 x 5MP AHD Bullet Camera Kit

Low Cost Surveillance Package for your home or office

SKU: SR2500

RRP $699.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $426.55 ea
Buy 11 to 20: Pay $405.22 ea
Buy 21 to 100: Pay $364.70 ea

Calculate Shipping

Hybrid DVR & 4 x 5MP AHD Bullet Camera Kit

Low Cost Surveillance Package for your home or office

This 5MP AHD Real Time CCTV Hybrid DVR + 4 Camera Bullet Package is total home or small business solution. The package includes cameras, digital video recorder, connection leads & power supplies. It's easily installs in just a few hours. Ideal for home or office.

Just add a hard drive and plug it in! This package now features 5MP AHD recording on each channel & hybrid video recording for easy integration with IP cameras (IP cameras not included in package).

Professional grade Hybrid Video Recorder (HVR).
The HVR includes professional grade features such as adjustable video quality, H.264 compression, external USB drive support, HDMI monitor connection, file management, date/time stamping, mouse & IR remote; schedule & motion. Ethernet connection provides the convenience of remote monitoring (but not archive footage playback) on most platforms and smart devices. CVI, TVI 2.0, TVI 3.0 and ONVIF compatible IP cameras may also be connected.

Package contents
• H.264 digital video recorder.
• 4 x bullet cameras
• 18m BNC & power combo leads.
• Power splitter lead.
• Power supply.

NOTE: Installations of CCTV systems can vary greatly in configuration and technical complexity. We recommend that unless you have skills in computer networking that you engage a CCTV installer or professional to set up your installation. The process can involve opening router ports, setting up IP routes etc which can be daunting for a beginner. Every installation is different, as a result, it can be difficult to diagnose set up issues over the phone or via email.



  • 1x 4CH 5MP AHD XVR Metal Case

  • 4x 5MP Outdoor Bullet AHD IR 25m

  • 4x 18M Coaxial Cable

  • 1x 5CH Power Splitter Cable

  • 1x DC12V/5A Power Adapter

  • 1x USB Mouse



  • NVR: 1x XVRDA2004HD

  • Camera: 4 x LBH30AD500FK

  • Cable: 4x 18m BNC+DC Cable, 1x (1 to 5CH power cable splitter)

  • Mouse: 1xUSB 2.0 Mouse

  • Hard Disk: No

  • Adaptor: 1xDC12V/5A

  • Weight: 7.9kg/SET


  • Camera Model


  • Camera

  • Image Sensor: 1/2.5" CMOS sensor

  • Image Resolution: 5M:2592*1944 4M:2560*1440 2M:1920*1080

  • TV System: PAL/NTSC

  • Electronic Shutter: AUTO

  • Scanning System: Progressive Scan


  • Lens

  • Focus Length: 3.6mm

  • Focus Control: Fixed

  • Lens Type: Fixed


  • Night Vision

  • IR Cut Filter: YES

  • Infrared LED: 14µ x 20PCS

  • Infrared Distance: 25M

  • IR Status: AGC Auto Control


  • Camera Features

  • Day/Night: YES

  • OSD Menu: YES

  • WDR: YES

  • UTC: YES

  • Noise Reduction: DNR

  • White Balance: AUTO / MANUAL

  • Gain Control: AUTO


  • General

  • Housing: Metal, IP66

  • Bracket: YES

  • Operation Temperature: -10℃ ~ +50℃ RH95% Max

  • Storage Temperature: -20℃ ~ +60℃ RH95% Max

  • Power Source: DC12V±10%, 700mA

  • Dimension: 157(W) x 70(H) x 66(D)mm

  • Weight: 650g


  • DVR Model


  • System

  • Main Processor: HI3520DV400

  • Operating System: Embedded LINUX


  • Video

  • Input: Normal Mode: Analog: 4*(TVI/AHD:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)

  • Analog+Network: 2*Analog(1080P)+7*network(MAX 5MP)

  • Lite Mode: Analog: 4*(AHD/TVI/CVI: 1080P/720P; Analog: 960H)

  • Analog+Network: 2*Analog(1080P)+7*network(MAX 5MP)

  • Network: 12*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M)

  • Input: 4CH BNC

  • Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network

  • Output: 1HD,1 VGA


  • Audio

  • Input: 4 Channel, RCA

  • Two-way Audio: NO

  • Output: 1 Channel, RCA


  • Alarm

  • Sensor Input: NO

  • Output: NO

  • Motion Detection: 4 Channel(max 9 Channel in pure network mode)

  • Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)

  • Email Alarm: Send Image to The Designated E-mail


  • PTZ

  • Interface: RS485

  • Protocol: Pelco-D, Pelco-P

  • Baud Rate: 110~921600

  • Address: 0~255


  • Display

  • VGA: Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

  • HD Output: Normal Mode: Resolution:2560*1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

  • Lite Mode: Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

  • Display Split: 9 Channel/4 Channel / 1Channel

  • Privacy Masking: 3 Rectangular Zones (Each camera)

  • OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording


  • Recording

  • Video Compression: H.265/H.265+/H.264/H.264+

  • Audio Compression: G.711u

  • Resolution: 5MP(2592×1944),8MP_LITE(1920×2160),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536),1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)

  • Video Quality: worst/worse/ordinary/well/best

  • Record Rate: Normal Mode:

  • Analog: PAL:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps), 5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×576 4*25fps)

  • NTSC:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps),5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×480 4*25fps)

  • Lite Mode:

  • Analog: Half 1080P(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(P:960×576 4*25fps/N:960×480 4*30fps)

  • Pure IP(H.265):

  • PAL: 5MP@8×25fps,4MP@12x25fps,3MP@12×25fps,1080P@12×25fps,960P@12×25fps,720P@12×25fps,D1@12×25fps

  • NTSC: 5MP@8×30fps,4MP@12×30fps,3MP@12×30fps,1080P@12×30fps, 960P@12×30fps, 720P@12×30fps, D1@12×30fps

  • Record Mode: ManualTimerMotion Detection


  • Playback & Backup

  • Decode Capability: 2CH 1080P@30fps

  • Sync Playback: Pure Analog: 4CH 5M@6fps, 4CH 4M@7fps, 4CH 3M@9fps, 4CH 1080p@15fps, 4CH 1080N@25fps

  • Mix Mode: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps, 3CH 1080p@15fps

  • Pure IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

  • Remote Playback: 1Channel

  • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection

  • Playback Functions: Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen

  • Smart Phone Playback: 4 Channel

  • Backup Mode: USB Device(with format FAT 32 )/Network


  • Network

  • Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface


  • DDNS, Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN

  • Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)

  • CMS SoftwareSupport Windows 7/ Windows 8/Windows 10

  • Extra Stream: CIF(1~25fps)

  • Smart Phone: iPhone, iPad, Android ,Android pad


  • Hard Disk Driver

  • Interface Type:1 SATA Interface

  • Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)


  • General

  • Language: Chinese Simplified, Chinese Traditional, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese

  • UTC Control: YES

  • USB Interface: 2 USB 2.0 Interfaces

  • Power consumption: DC 12V ≤6W (Without Hard Disk)

  • Working Environment: -10~55℃/10~90%

  • Dimension: (W×D×H)260*215*43(mm)

  • Weight: 2kg (Without HDD)

    *Specifications are subject to change without notice.

SKU SR2500
Barcode # 9321758230220
Shipping Weight 5.5000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.300m
Shipping Cubic 0.024000000m3
Unit Of Measure ea
