Hevy Duty Wireless IP69 Reversing Camera with 7" Wireless LCD Display

Easy to install Wireless Camera and LCD Display

• COMMERCIAL GRADE DASH MOUNT MONITOR SYSTEM

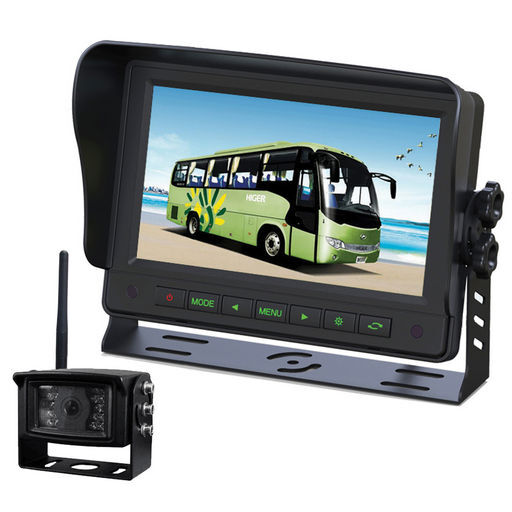

  Wireless monitor to camera kit features a 7" 450cd heavy duty display monitor with built-in wireless receiver with a heavy duty camera and built-in wireless transmitter. The wireless system means there is no need to run a video cable from the monitor to the camera, which makes installation suitable for larger vehicles and trailers, etc.


• Provides unobstructed rear view of the vehicle for safer reversing and peace of mind

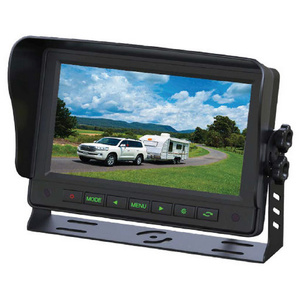

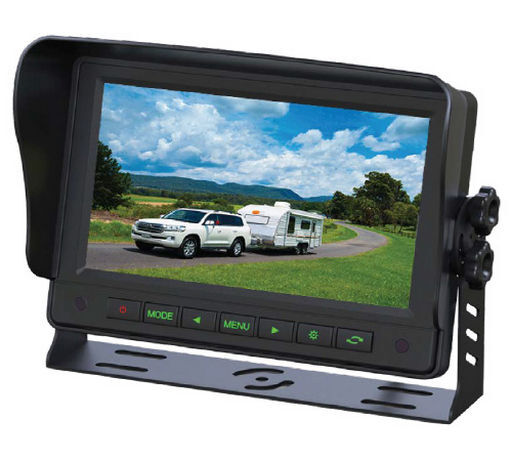

• 7" commercial grade display with built in wireless receiver

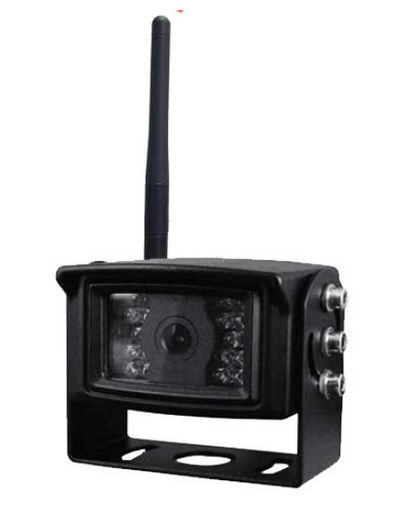

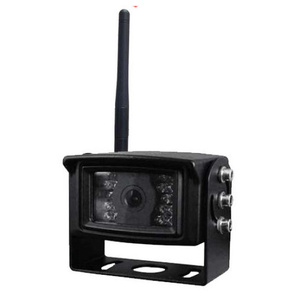

• Commercial grade reverse camera with 18 IR LEDs for night vision and built in wireless transmitter and external antenna
• Triple video camera input-enabled allowing additional cameras to be added to the system, two wireless and one wired
• Rated IP69K dust and waterproof camera that withstands harsh environment condition
• High/low voltage cut off and built in circuit protection
• 12 & 24V Compatible suitable for commercial vehicles, 4WDs and cars
• Optional Windscreen Suction Mount Available (GTSM1)
• Easy wireless transmission installation for DIY enthusiasts, simply power the camera and monitor, no need to run video cable
• Monitor specifications

  Monitor size: 7.0"
  Mounting type: Adjustable metal bracket & windscreen suction mount (gtsm1 sold separately)
  Resolution / Brightness: 800(H) x 450(V) / 450 candela
  AHD: No
  Input voltage: 12V/24V
  Video inputs: 3 (2 wirelesss + 1 Prolink II)
  Display configuration (single, dual or quad): Single
  Image flip: Yes
  Display image adjustment:
  Brightness: Yes
  Contrast: Yes
  Saturation: Yes
  Reverse (mirror) image: Yes
  Pal or NTSC: Pal/NTSC
  Connection type: wireless and prolink ii
  Dimensions (monitor only): 129mm(h) x 195mm(w) x 30mm(d)
  Dimensions (monitor & bracket): 156mm(h) x 215mm(w) x 73mm(d) [with bracket in vertical position & sunshade fitted without the antenna]

  Camera specifications

  Mount type: Surface mount u-shaped
  Camera type (reverse or rearview): Rear
  AHD / Resolution: No / N/A
  Camera angle: 120 degree
  Image sensor (CMOS or CCD): CMOS
  Parking gridlines: No
  Pal or NTSC: NTSC
  IP rating: IP69K
  Input voltage: 12V
  Minimum illumination: 0 lux
  Number of LEDs: 18
  Led type: Infrared
  Plug type camera end: Prolink II
  Plug type monitor end: N/A
  Video cable length: 400mm
  Reverse trigger on video cable: N/A
  Dimensions (camera only): 43mm(h) x 70mm(w) x 58mm(l)
  Dimensions (camera & bracket): 80mm(h) x 78mm(w) x 58mm(l)
  Antenna height: 111mm (max); 87mm (when at 90 degree angle)
