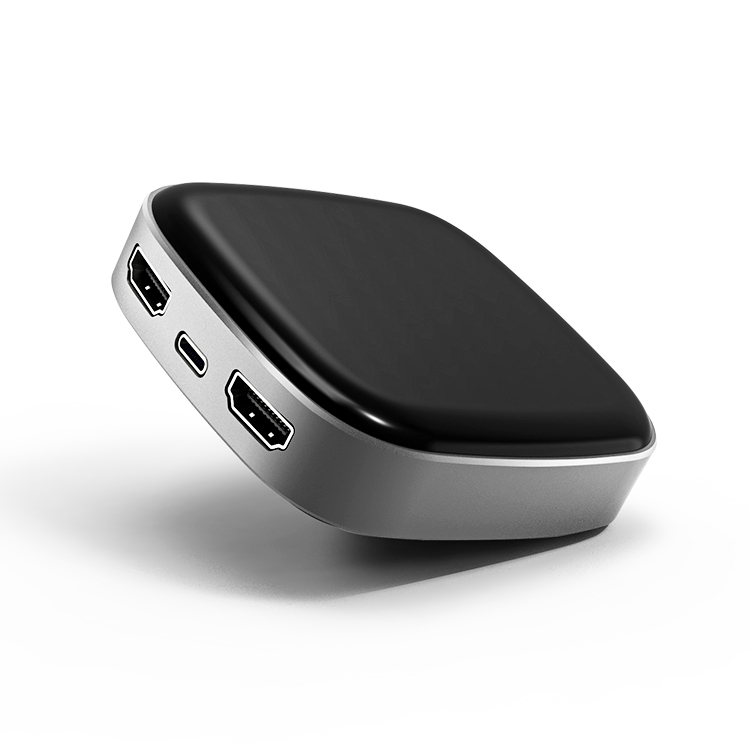

HDMI to USB Type C Recorder Video Capture

Record, edit and save HDMI video on your PC or laptop

The HDMI to USB 3.2 Type C Recorder Video Capture Box is a small compact device that connects to a USB-C port to deliver unparalleled video quality at an astonishing 1080p!

With HDMI Pass through, you are able to Record or stream a HDMI AV signal via USB Type C with resolutions of up to 1920 x 1080 at 60Hz and still connect to an LCD or TV. View and edit the HDMI AV signals at the same time.

If you need to stream or record at a certain resolution, the device is able to up-scale or downscale the input signal. The HDMI Capture card uses the existing drivers on your computer, the capture device will work with any software that supports those drivers (even possible to use with Skype, Google Hangouts, WebEx and more).

Features
l One HDMI input, One HDMI loop out, Watching and Recording
l Adopting USB channel Recording of high-speed Full HD Screen
l Compatible with a variety of third-party acquisition software
l High quality USB cable
l Supports recording MJPEG, YUY2 video formats
l Supporting 4K/60hz resolution input



Specification

Input HDMI input port（Resolution Supported )：4K/60, 50; 4K/30,25, 24, 1080P/60, 50; 720P 50/60

HDMI input formats: Compatible with HDMI2.0 standard, maximum bandwidth support 600MHz 4K/60Hz, 8bit deep color, HDR

Output USB Type-C output： Up to 300~350MB/s bandwidth preview resolution: 1920x1080/1280x720

Frame rate: : 50/60 fps

HDMI loop-out  (supported resolution)： 4K/60,50, 4K/30,25, 24, 1080P/60,50, 30,720P 50/60  3.5mm Audio output: only model HCA12 supported

Protocol Complies with UVC (USB video class) and UAC (USB audio class) standards Output color space YUV, RGB

Operating system support Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS

Software compatibility Adobe Flash Media Live Encoder (Windows, OS X)

Real Producer Plus (Windows)

VLC (Windows, OS X, Linux)

QuickTime Broadcaster (OS X)

QuickTime Player (OS X)and etc.

OBS

PotPlayer

Upgrade Firmware can be upgraded online

Size : 80x80X16mm

Power consumption <= 2.5W

Operating temperature 0-70 deg C

Storage temperature -20-120 deg C

Storage humidity 5%-90%



Computer system requirements

System：Windows 10 / Windows 8.1 / Windows 7 (SP1)/Linux/MacOS X 10.9 above

Desktop PC: Intel Core i5-3400 3.20 GHz + NVIDIA GeForce GT 630 or above

Notebook: Intel Core i7-4810MQ + NVIDIA GeForce GTX 735QM or above

RAM：4 GB RAM (Suggest8 GB)



CLICK HERE TO SEE OTHER HDMI TO USB CAPTURE DEVICES IN OUR RANGE





Package and accessories

1. HDMI to USB Type-C video capture dongle--------------------------- 1 unit

2. USB Type-C cable-------------------------------------------------------------1unit

3. Parameter description----------------------------------------------------------- 1 unit

4. Operating instruction----------------------------------------------=--------------1unit
