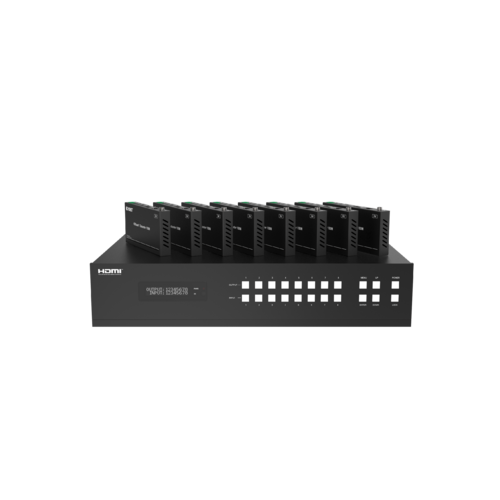

HDMI 2.0 18GBPS 8 Input 8 HDBaseT Matrix Switcher Extender w/ ARC

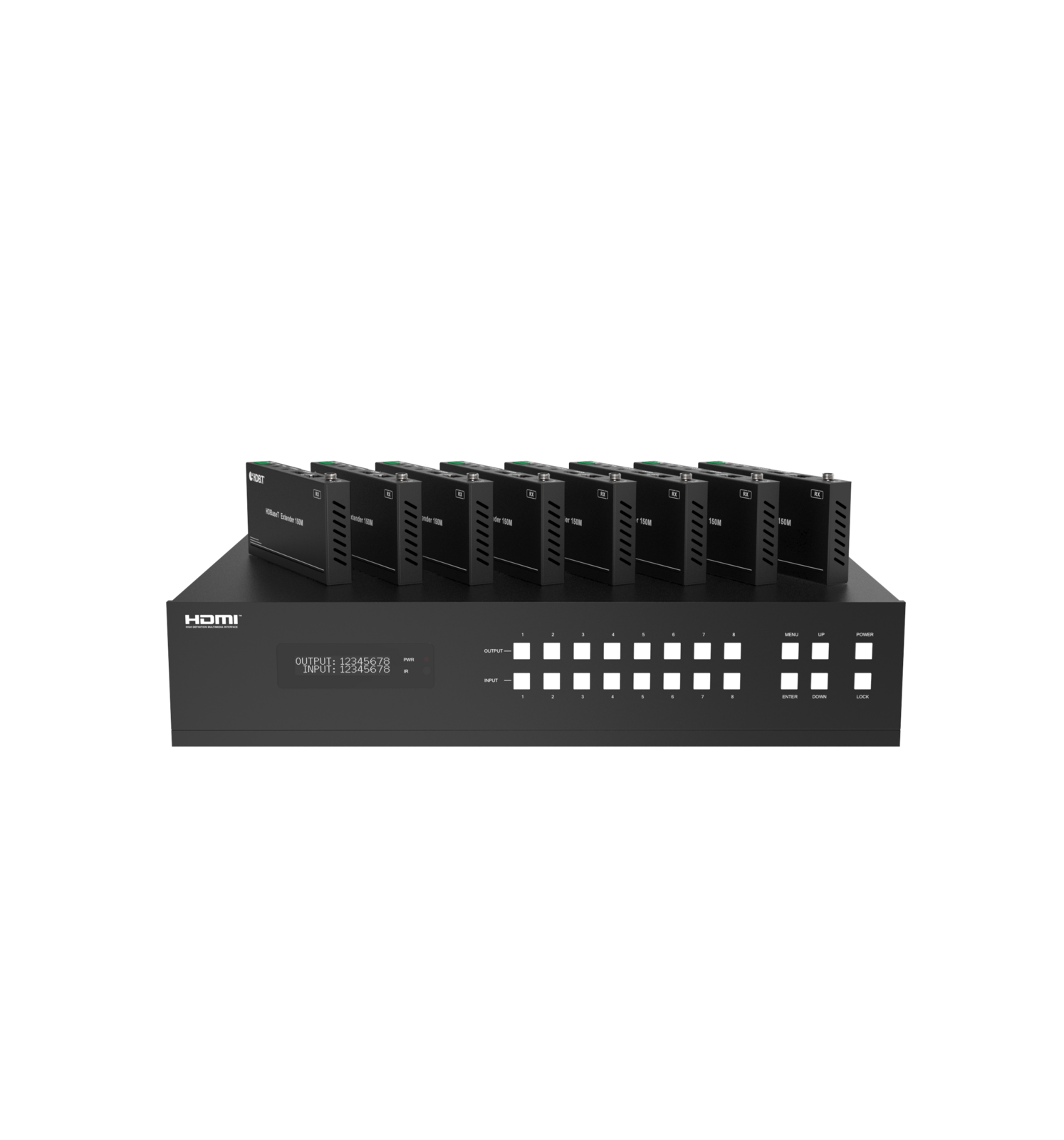

Extends 8 x HDBaseT Receivers up to 100m range

Special Order Product - May take 2-3 weeks for delivery

A professional-grade 18Gbps 8x8 HDBaseT Matrix designed for large-scale AV distribution. It supports resolutions up to 4K@60Hz (4:4:4) and is fully HDMI 2.0b and HDCP 2.2 compliant. A key feature is its mirrored output architecture, providing 8 HDMI and 8 HDBaseT outputs to connect up to 16 displays simultaneously, with the ability to extend signals up to 328ft (100m) over a single CAT cable.

Intelligent Signal Management and Scaling

This matrix is equipped with an integrated 4K to 1080P Down Scaler on every output, ensuring seamless compatibility across a mix of legacy and modern displays. It features a comprehensive HDR Suite, supporting Dolby Vision, HDR10+, and HLG for superior visual depth. For audio, the system includes an advanced Audio Matrix that can extract sound from sources or utilize ARC (Audio Return Channel) to route display audio back to coaxial and analog outputs.

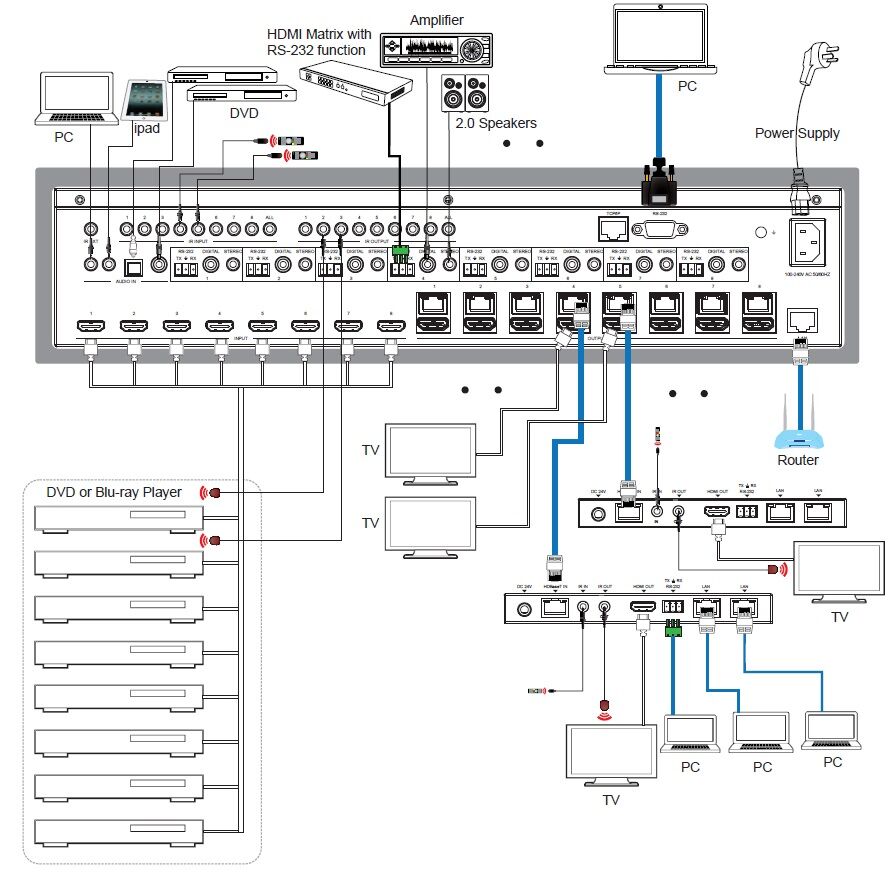

Streamlined Installation and Control

Designed for efficiency, the device utilizes 24V PoC (Power over Cable), allowing the central matrix to power all connected HDBaseT receivers and eliminating the need for local power supplies at each display. It offers flexible management through a front panel OLED, IR remote, RS-232, and a dedicated Web GUI. Housed in a 2U rack-mountable metal enclosure, it is a robust and reliable hub for high-end residential or commercial integrated systems.



☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant

☆ 8 HDMI inputs, 8 HDMI outputs and 8 HDBaseT mirrored outputs

☆ Support video resolution up to 4K@60Hz 4:4:4

☆ HDMI ports transmit 18Gbps lossless uncompressed video bandwidth

☆ Support 18Gbps lossless compressed HDBaseT signal transmission

☆ Support 4K->1080P Down Scaler

☆ Dolby Vision, HDR10+, HLG are supported

☆ HDBaseT output can extend video transmission distance up to 328ft / 100 meters via a single CAT 5e/6/7 cable.

☆ HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)

☆ Support ARC function on local HDMI and HDBaseT output ports

☆ IR matrix and Audio matrix are supported

☆ Support smart EDID management

☆ 24V POC on all HDBaseT ports

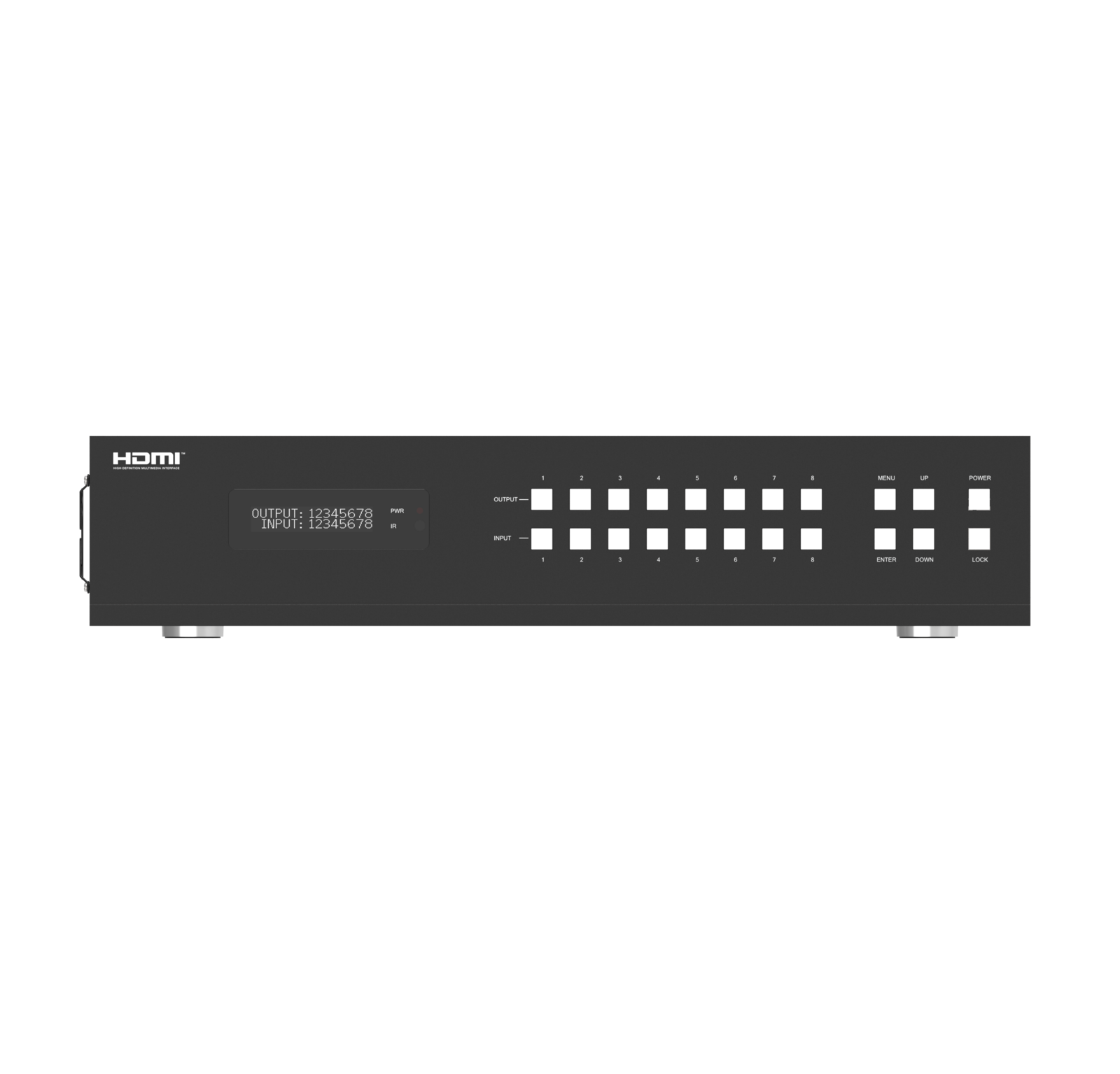

☆ Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI



Specifications:

HDMI Compliance    HDMI 2.0b
HDCP Compliance    HDCP 2.2 and HDCP 1.4
Video Bandwidth    18Gbps
Video Resolution    Up to 4K2K@50/60Hz (4:4:4)
Color Space    RGB, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth    12-bit (4K), 16-bit (1080P)
HDMI Audio Formats
(Pass-through)    PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Coax Audio Formats    PCM 2.0, Dolby Digital / Plus, DTS
L/R Audio Formats    PCM2.0
HDR formats    4:4:4,4:2:2,4:2:0(10,12bit deep color) HDR10, HDR10+, Dolby Vision, HLG
Infrared    20KHz ~ 60KHz
ESD Protection    Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

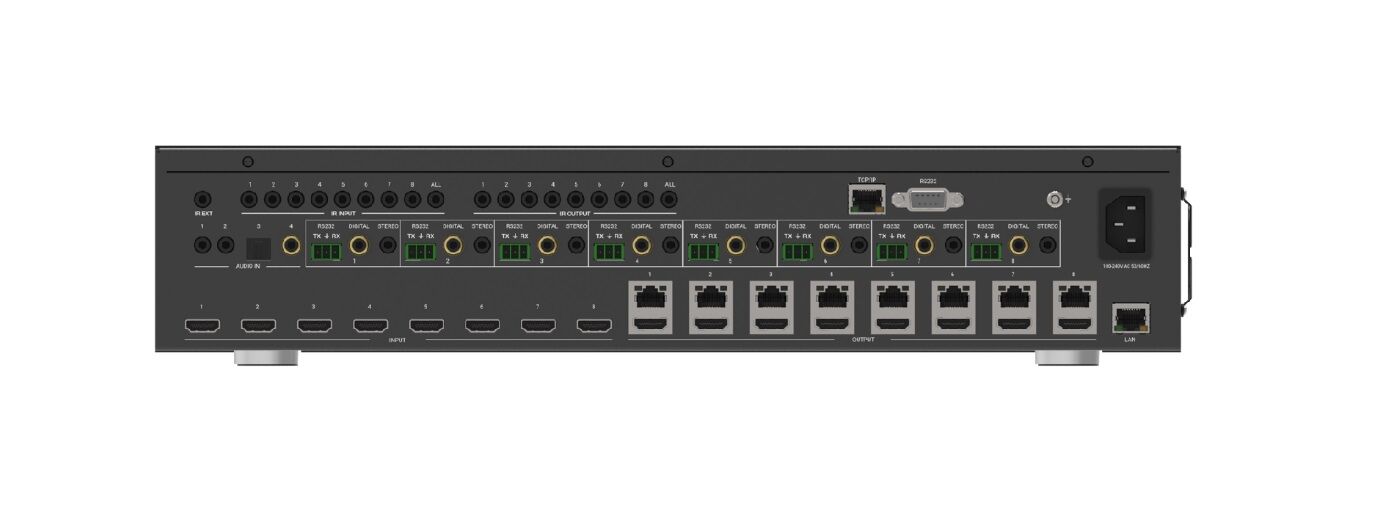

Connections
Matrix
Input ports    8x INPUT [HDMI Type A, 19-pin female]
10x IR INPUT [3.5mm Stereo Mini-jack]
2x Stereo Audio [3.5mm Stereo Mini-jack B]
1x SPDIF(OPTICAL)
1x SPDIF(COAX)
Output ports    8x HDMI OUTPUT [HDMI Type A, 19-pin female]
8x HDBaseT port [RJ45]
9x IR OUTPUT [3.5mm Stereo Mini-jack]
8x RS-232 [3-pin Phoenix connector]
8x SPDIF(COAX)
8x Stereo Audio[3.5mm Stereo Mini-jack]
1x LAN [RJ45]
Control Ports    1x TCP/IP [RJ45]
1x RS-232 [D-Sub 9]
HDBaseT Receiver
Input ports    1x HDBaseT IN [ RJ45]
1x IR IN [3.5mm Stereo Mini-jack]
Output ports    1x HDMI OUT [HDMI Type A, 19-pin female]
1x IR OUT [3.5mm Stereo Mini-jack]

Control Ports    1x SERVICE [Micro USB, Update port]
1x RS-232 [Phoenix jack]
2x LAN [RJ45]
Mechanical
Housing     Metal Enclosure
Color    Black
Dimensions    TX: 440mm (W)x362mm (D)x88mm (H)
RX: 163mm (W)x90.3mm (D)x18mm (H)
Weight    TX: 6.9 kg, RX: 392g
Power Supply    AC 100 - 240V 50/60Hz
Power Consumption (Max)     128W (Max)
Operation Temperature    32 - 104°F / 0 - 40°C
Storage temperature    -4 - 140°F / -20 - 60°C
Relative Humidity     20 - 90% RH (no condensation)
