HDMI 2.0 18GBPS 8 Input 8 HDBaseT Matrix Switcher Extender

Extends 8 x HDBaseT Receivers up to 150m range

SKU: AA6290


$2,399.00
RRP $3,999.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $2,279.05 ea
Buy 11 to 20: Pay $2,051.15 ea
Buy 21 to 100: Pay $1,846.09 ea




Calculate Shipping

HDMI 2.0 18GBPS 8 Input 8 HDBaseT Matrix Switcher Extender

Extends 8 x HDBaseT Receivers up to 150m range

Special Order Product - May take 2 weeks for delivery

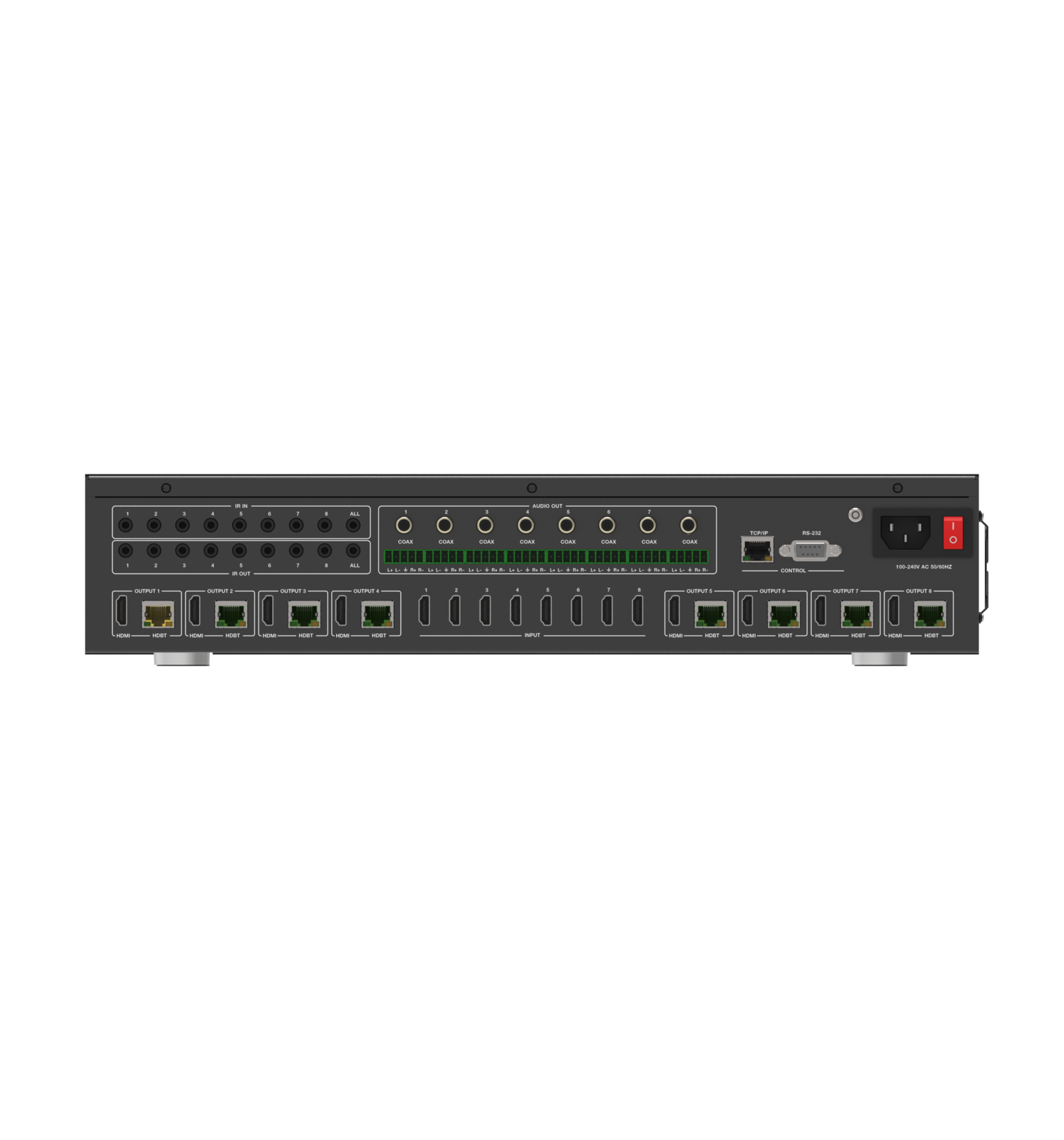

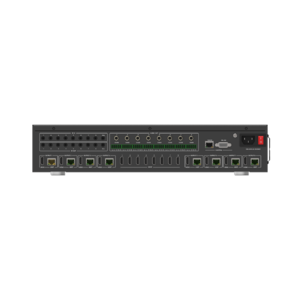

The 18Gbps 8x8 HDBaseT(150M) Matrix can connect 8 HDMI sources to 16 displays. It features 8 HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output
which runs simultaneously. HDBaseT output can extend video transmission distance up to 492ft / 150m via a single Cat 5e/6/7 cable and the resolution is up to 4K2K@60Hz 4:4:4.
Audio de-embedded to analog and coaxial audio is supported. Each HDMI output supports 4K2K to 1080P downscaler independently.

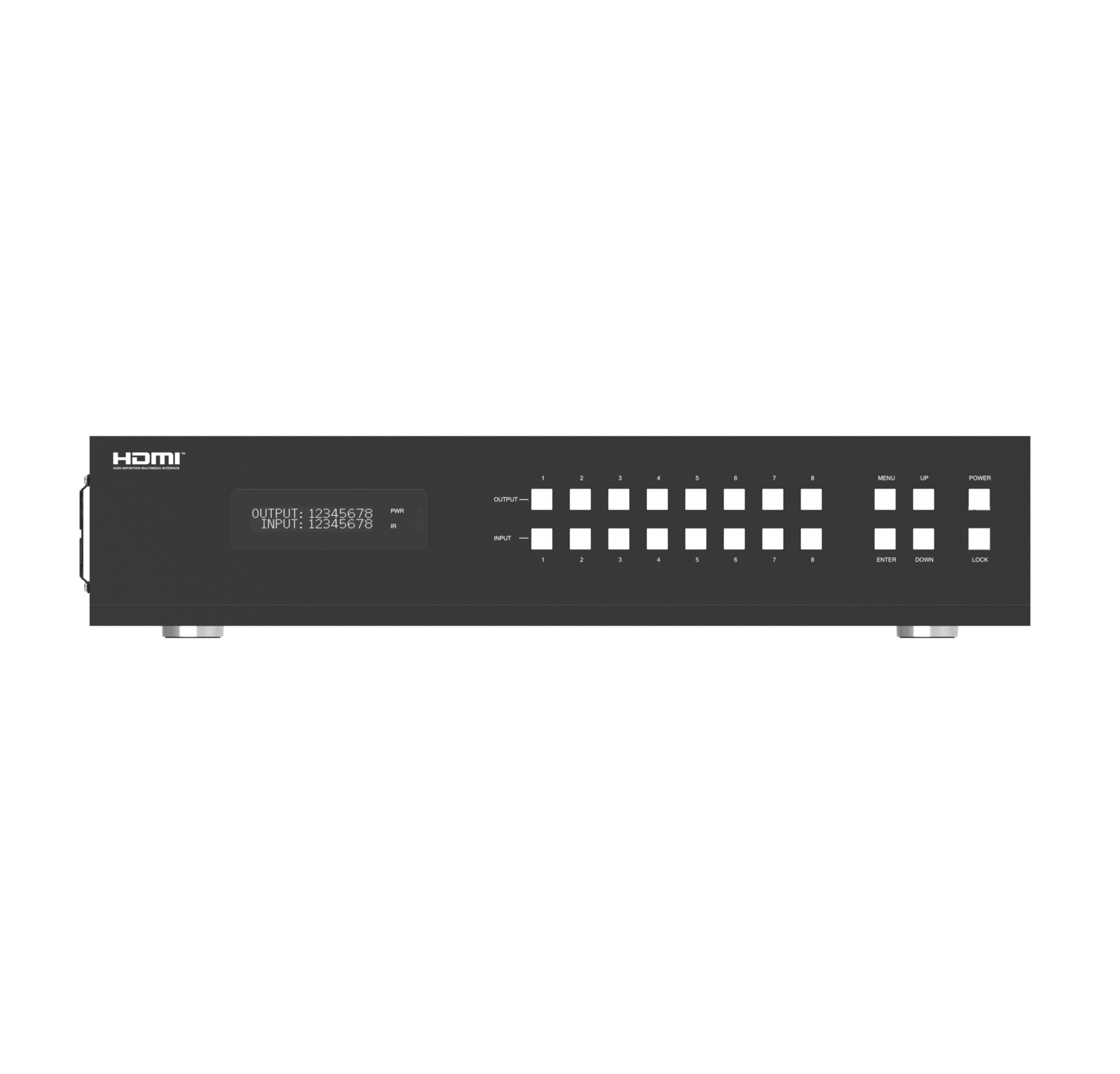

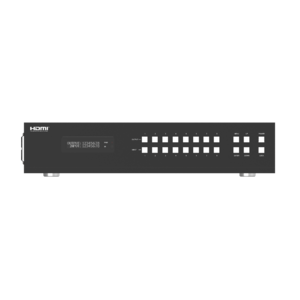

The product supports IR matrix. The IR signal is one-to-one control at the Matrix end, but the IR signal follows HDMI video channel at the HDBaseT Receiver end. The product provides an intuitive set of front panel with OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

Features:
☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
☆ Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports
☆ 8 HDMI inputs, 8 HDMI & HDBaseT mirrored outputs
☆ HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
☆ Support 18Gbps lossless compressed HDBaseT signal transmission
☆ Support 4K->1080P Down Scaler for each output port
☆ HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
☆ HDBaseT output can extend video transmission distance up to 492ft / 150m for 1080P
 or 394ft / 120m for 4K2K via a single Cat 5e/6/7 cable
☆ HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
 Master Audio)
☆ Support IR matrix
☆ Audio de-embedded is supported via analog and coax ports
☆ Advanced EDID management and CEC control are supported
☆ 24V POC on all HDBaseT ports

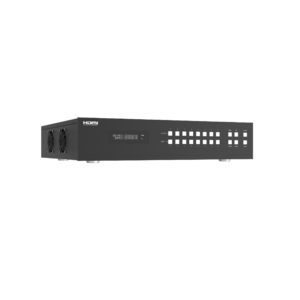

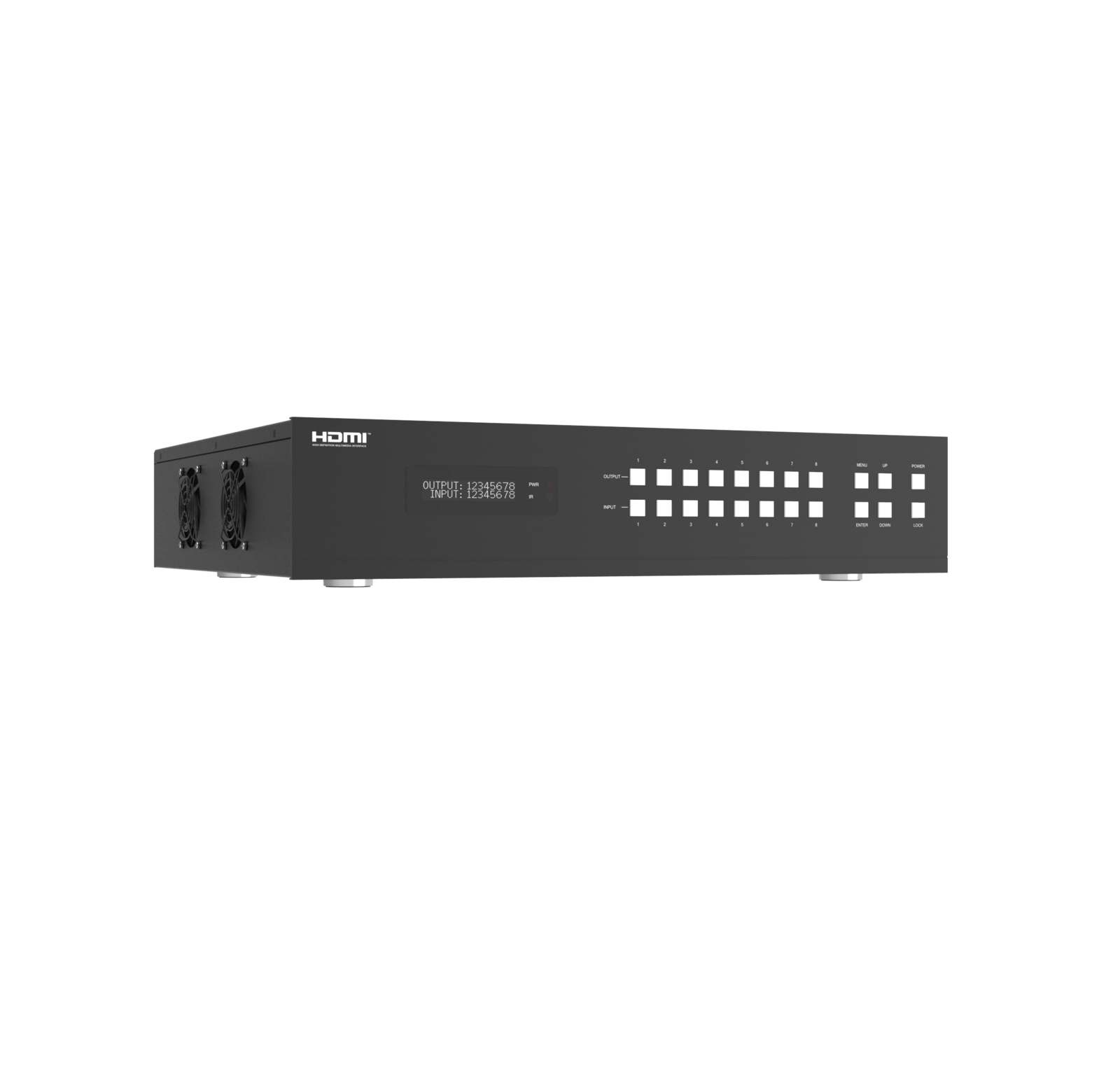

☆ 1U rack mounted design with front panel OLED display
☆ Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

3. Package Contents

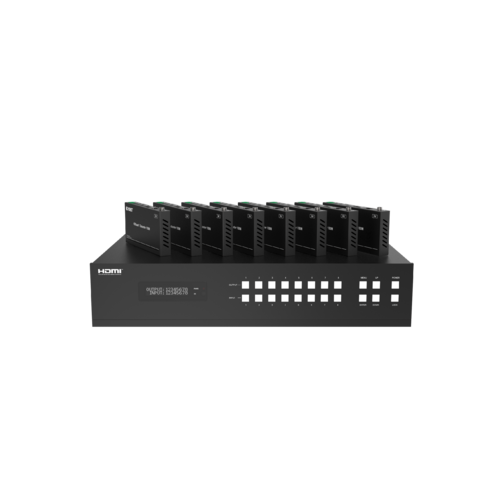

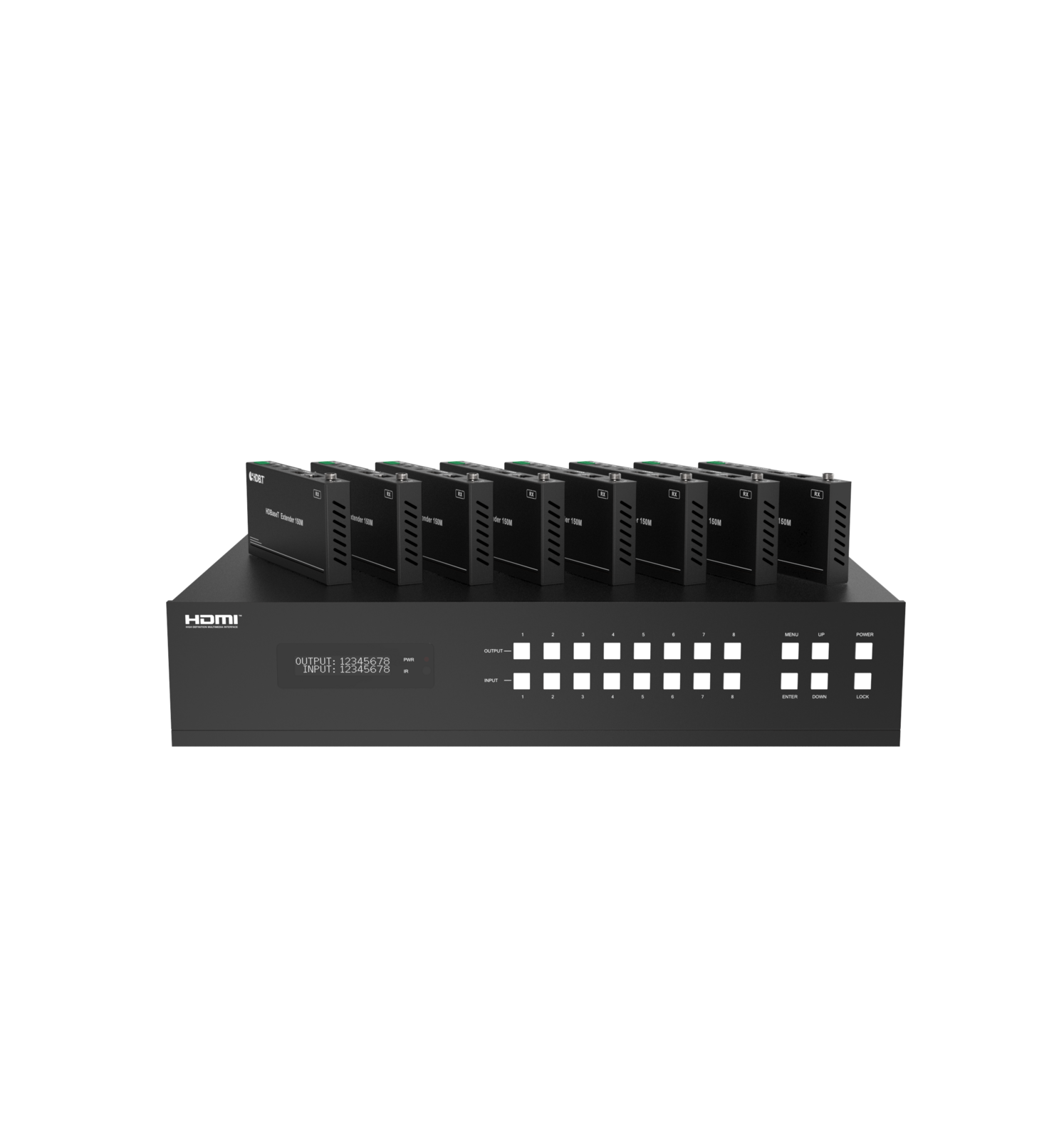

① 1 x 18Gbps 8x8 HDBaseT(150M) Matrix
② 8 x HDBaseT Receiver
③ 1 x Matrix IR Remote
④ 1 x 100~240V AC 50/60Hz Power cable
⑤ 1 x RS-232 serial cable (1.5 meters, male to female head)
⑥ 8 x 3-pin Phoenix Connector & 8 x 5-pin Phoenix Connector
⑦ 9 x IR Blaster cable (1.5 meters)
⑧ 9 x IR Receiver cable (1.5 meters)
⑨ 18 x Mounting Ear (Matrix and Receiver)
⑩ 1x User Manual
4. Specifications

Technical
HDCP Compliance HDCP 2.2 and HDCP 1.x
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@50/60Hz (4:4:4)
Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth
8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
Dolby Digital Plus(DD+), DTS-ES, DTS HD Master,
DTS HD-HRA, DTS-X
Coax Audio Formats PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Balanced
Audio Formats PCM2.0CH
SNR >90dB
ESD Protection Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Vmax 2Vrms - 2 / 25 -
HDMI Compliance HDMI 2.0b
HDR HDR10, HDR10+, Dolby Vision, HLG
Crosstalk >80dB
THD+N Ratio <0.1%(V_max) 0.001%~0.01%(V_best)
Frequency Response 20Hz~20kHz ±0.5dB

CLICK HERE FORE FIRMWARE UPGRADE

CLICK HERE TO SEE OTHER HDBASET HDMI EXTENDERS IN OUR RANGE

12 Month Warranty

SKU AA6290
Barcode # 9351634024698
Brand Aus Electronics Direct
Shipping Weight 13.5000kg
Shipping Width 0.170m
Shipping Height 0.070m
Shipping Length 0.250m
Shipping Cubic 0.002975000m3
Unit Of Measure ea

Perfect

30 September 2022
My review is quite delayed but for good reasons. I purchased my matrix back in January 2022 and it's still going strong today. I have distributed HDMI and infrared throughout my house over many years via many different ways. Digital RF modulators are great if you have coax running everywhere but the noticeable difference in picture quality due to the compression was a downside. Running separate IR Cat baluns for channel changing got messy in my network rack. I bought a few HDMI splitters and HDMI Cat baluns which replaced the modulator but it added to the remaining IR balun clutter. Later down the track, I found this matrix. I thought long and hard about whether to get it and eventually caved. It's perfectly rack mounted (2RU not 1RU as suggested in the specs). It's cleaned up the mess of baluns, made back heaps of space in my rack and integrated HDMI + IR into one unit. The web browser GUI is great but not mobile friendly so I spent the time to make my own local GUI for more basic control (power on/off and source switching), which I still tinker with today. Overall, it's a great kit. I'm definitely happy.
(5)

HDMI Heaven

By: on 29 September 2022
Fantastic product, does exactly what it needs to do, just a shame it took five weeks to arrive!
(5)

HDMI Heaven

By: on 28 September 2022
Fantastic product, does exactly what it needs to do, just a shame it took five weeks to arrive!
(5)
