HDMI 2.0 18GBPS 4 Input 4 Output Matrix Switcher Splitter

4 x 4 HDMI True Matrix with EDID and HDCP 2.2

SKU: AA6135


$699.00
RRP $999.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $644.00 ea
Buy 11 to 20: Pay $630.84 ea
Buy 21 to 100: Pay $599.30 ea




Calculate Shipping

HDMI 2.0 18GBPS 4 Input 4 Output Matrix Switcher Splitter

4 x 4 HDMI True Matrix with EDID and HDCP 2.2

Special Order Product - May take 1 - 2 weeks for delivery

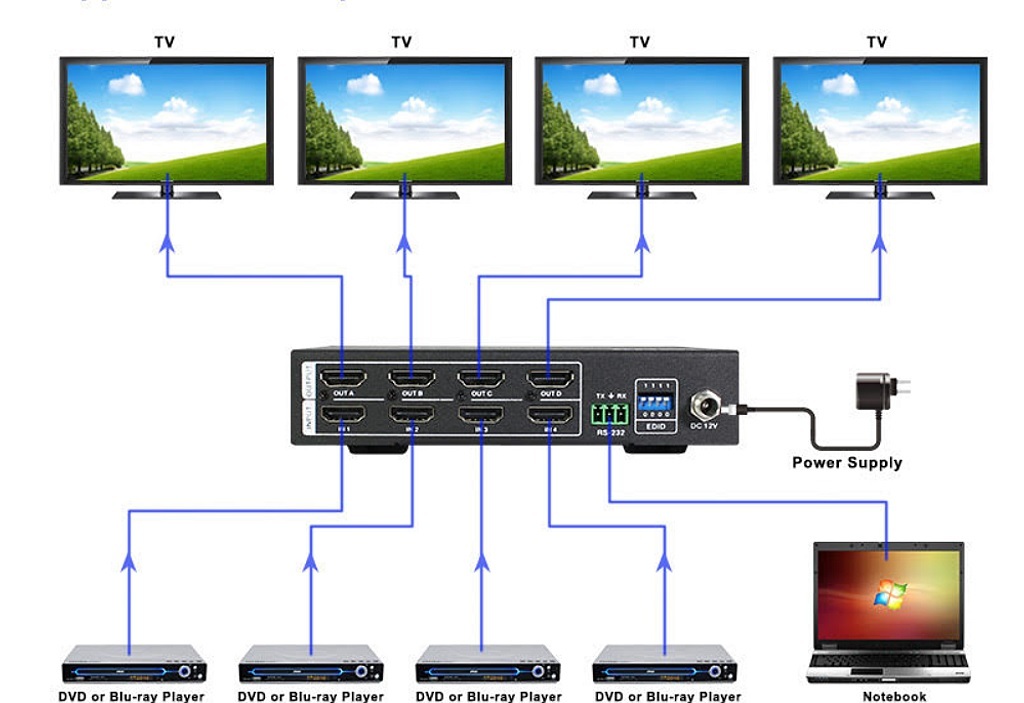

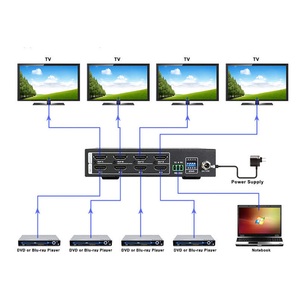

This true HDMI 2.0 18GBPS Matrix Switcher is capable of switching between 4 HDMI inputs and displaying or splitting the signal to 4 LCD Displays or TV . Suitable for newer 4K HDMI devices such as PS4 Pro, XBOX S One, Foxtel IQ4, etc.

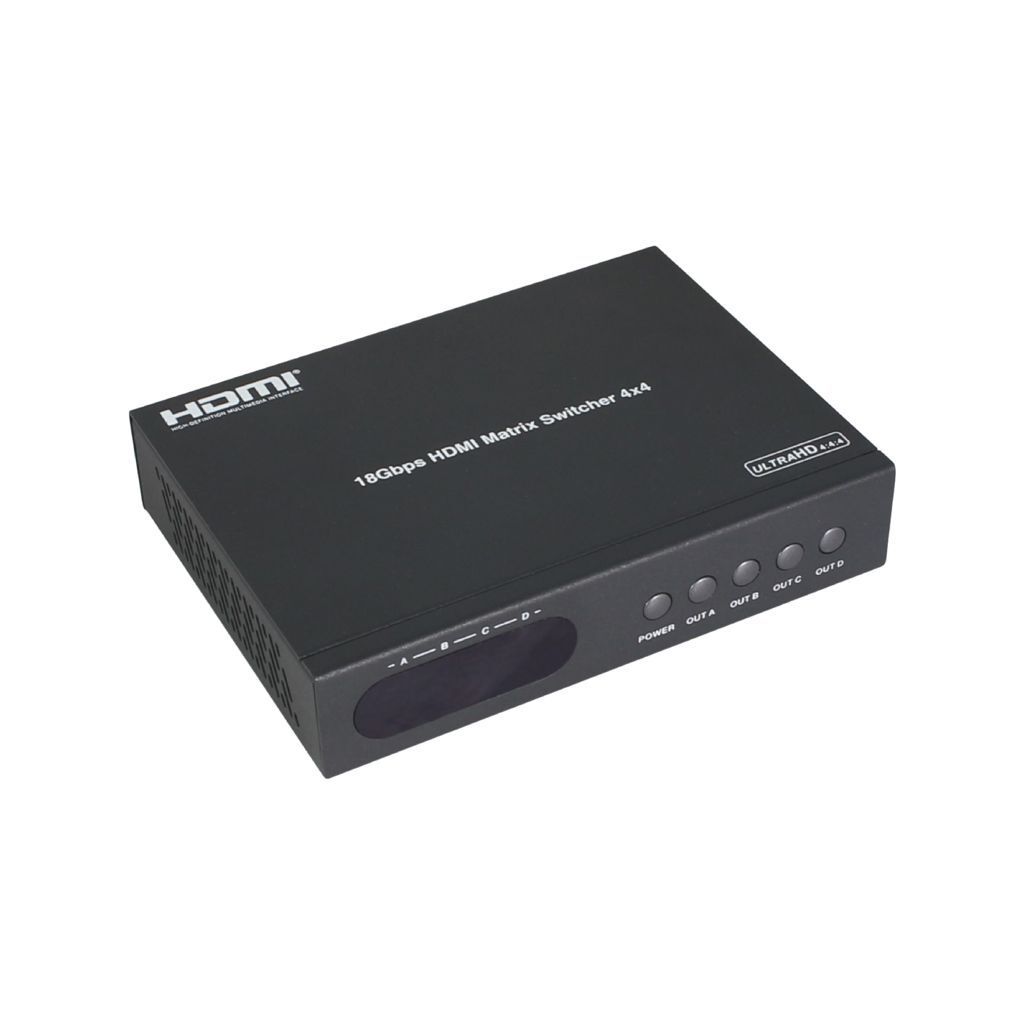

It supports the transmission of video resolution up to 4K×2K @ 60Hz Ultra HD YUV4:4:4 and supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. HDMI sources are accessible at all times by selection via the supplied IR Remote Control, RS-232 or select buttons on the front panel or Ethernet protocol.

Features:

  • HDMI2.0b, HDCP2.2 and HDCP1.4 compliant.
  • Support video format up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4/YCbCr 4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0.
  • Support color space conversions among RGB, YCbCr4:4:4,YCbCr4:2:2 and xvYCC video formats.
  • Support all HDMI 3D formats up to 2160p@30Hz.
  • Support high resolution VESA mode video format up to QSXGA@60Hz.
  • Support reception of any audio data conforming to the HDMI specification such PCM at up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS and HBR.
  • Support smart EDID management.
  • Support RS-232, remote control and on-panel control.

Parameters:



Technical
Video Bandwidth : 600MHz(18Gbps)
Video Resolution : 480i, 576i, 480p, 576p, 720p, 1080i, 1080p 24 / 25 / 30 / 50 / 60, 2160P 24 / 25 / 30 / 50 / 60
ESD Protection Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

Connections

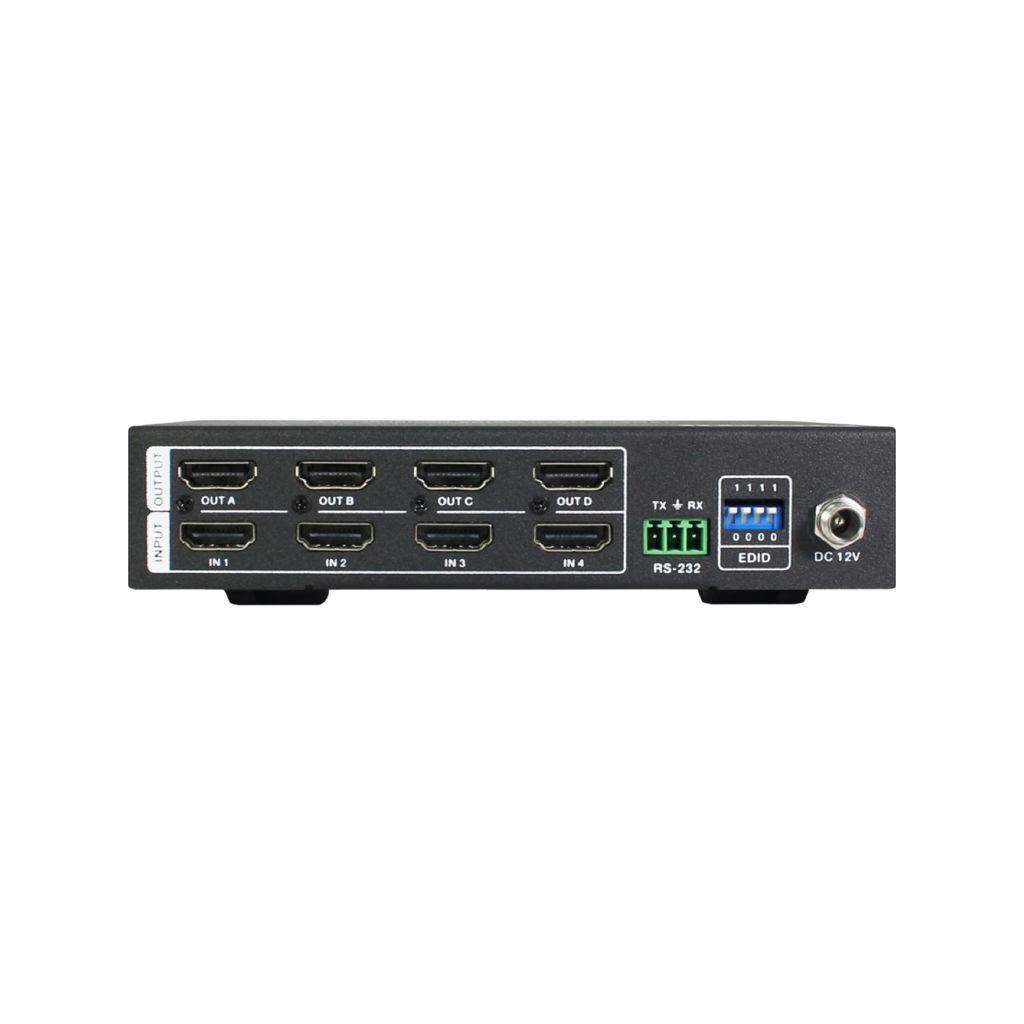

Input Ports : 4 × HDMI, 1 × RS-232
Output Ports : 4 × HDMI, 4 × Toslink, 1 × L/R
HDMI connector : Type A 19 pin female

Mechanical
Power Supply : 12V/2.5A DC
Dimensions : 150mm (W) × 111mm (D) × 32.2 mm (H)
Weight : 585g
Chassis Material : Metal
Silkscreen Color : Black
Operating Temperature : 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature : -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity : 20~90% RH (non-condensing)
Power Consumption : 30W (max)/1W(Standby)

12 Month Warranty

SKU AA6135
Barcode # 9351634013708
Brand Aus Electronics Direct
Shipping Weight 0.3500kg
Shipping Width 0.170m
Shipping Height 0.070m
Shipping Length 0.250m
Shipping Cubic 0.002975000m3
Unit Of Measure ea
