HDMI 2.0 18GBPS 4 Input 4 HDBaseT Extender Matrix Switch w/ ARC

Extends 4 x HDBaseT Receivers up to 70m range

Special Order Product - May take 2-3 weeks for delivery



A high performance 4 x 4 HDMI HDBaseT Matrix Switcher can switch any of 4 HDMI sources to any of 4 HDMI and 4 HDBaseT outputs (mirrored output), and the resolution up to 4K2K@60Hz 4:4:4, 18Gbps, HDCP 2.2. HDBaseT ports extend distance up to 230ft (70 meters) resolution is up to 1080P@60Hz and 132ft (40 meters) resolution  up to 4K@60Hz 4:4:4 via single cat5e/6/6a cable.

Supports audio matrix output with ARC functionand bi-directional IR and RS-232 function are supported. Provided is an intuitive set of front panel with OLED screen and supports front panel buttons, IR remote, RS-232, TCP/IP and ASCII command control ways.



☆ HDMI 2.0, HDCP 2.2 and HDCP 1.4 compliant

☆ Support 4 HDMI sources to 4 HDMI and HDBaseT outputs (mirrored output)

☆ Video resolution up to 4K@60Hz (4:4:4)

☆ All HDBaseT ports support 4k@60Hz 4:4:4 / 1080P60Hz and distance is up to 132ft (40 meters) / 230ft (70 meters) via CAT 5e/6/7 cable

☆ All HDBaseT support features: High-Definition video and audio, 24V PoC (Matrix is connected power supply and Receiver don’t need to power supply)

and control (Bi-directonal IR & RS-232 pass-through)

☆ HDMI Pass-through audio up to 7.1 channels of high definition audio (LPCM, Dolby TrueD and DTS-HD Master Audio)

☆ Supports ARC function, it can return HDMI or HDBaseT display device audio to coaxial audio output by ASCII command control

☆ Supports extract HDMI source device audio to coaxial and analog audio output by ASCII command control

☆ Supports select external audio source to coaxial and analog audio output by ASCII command control

☆ HDR, CEC and smart EDID managment are supported

☆ Control via front panel button, IR remote, RS-232, TCP/IP and ASCII command

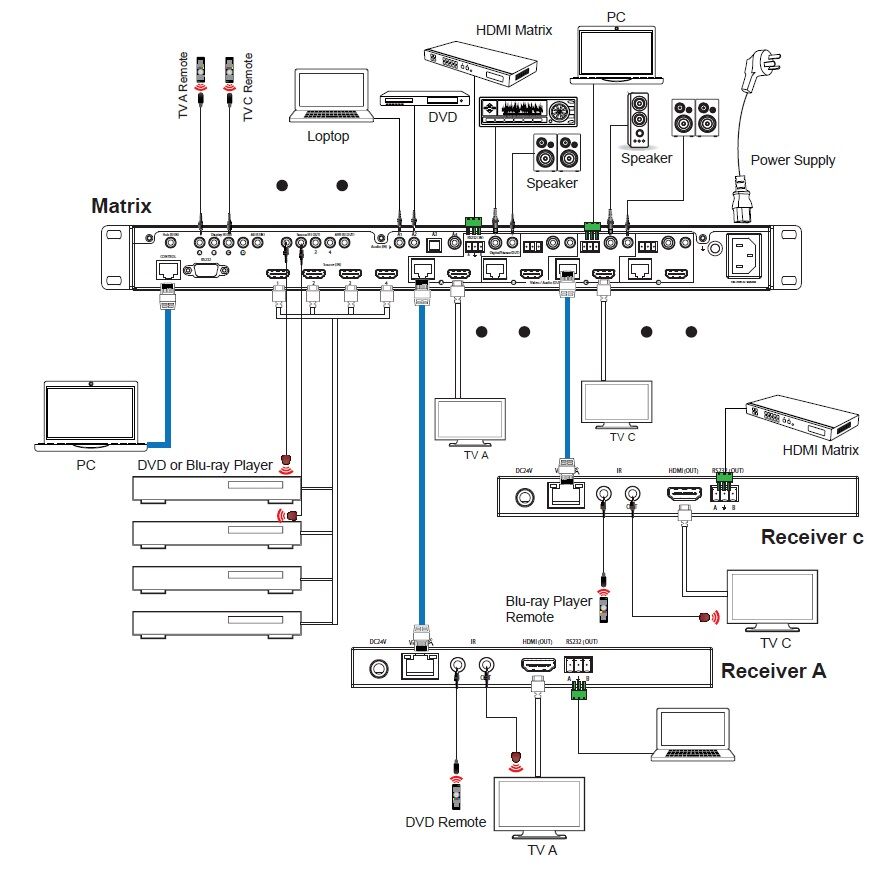

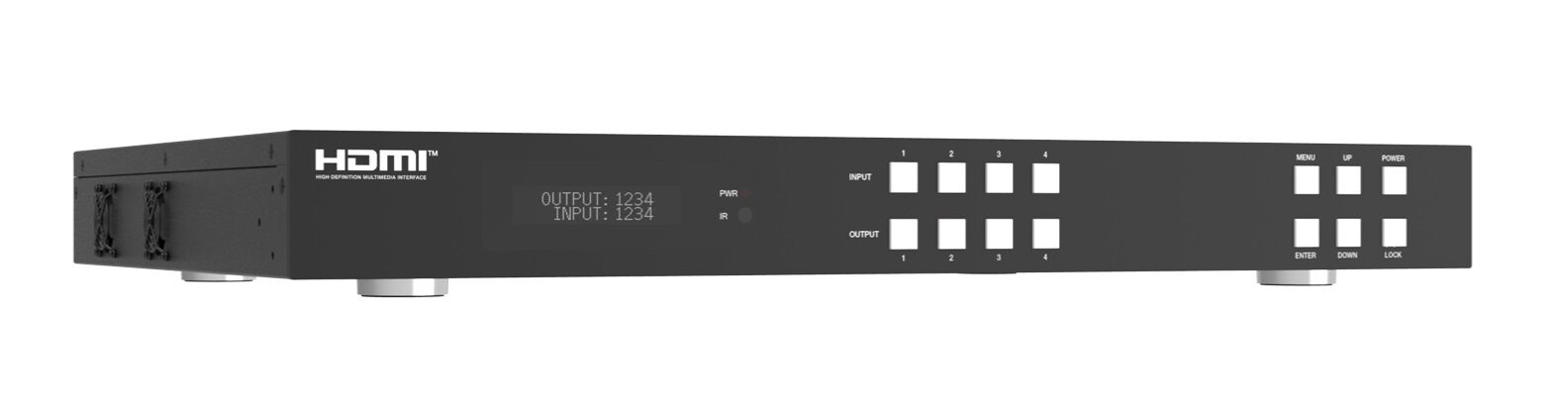

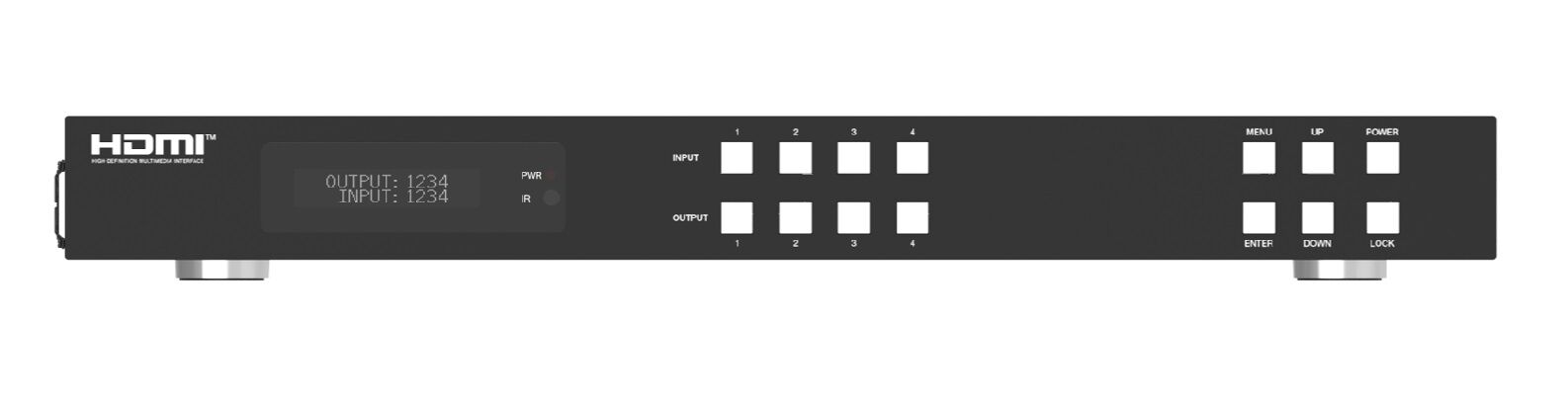

☆ 1U rack mounted design with aluminum housing on the front

Specifications:

HDMI Compliance    HDMI 2.0
HDCP Compliance    HDCP 2.2 and HDCP 1.4
Video Bandwidth    18Gbps
Video Resolution    Up to 4K2K@50/60Hz (4:4:4)
Color Space    RGB, YCbCr 4:4:4, YUV 4:4:4, YCbCr 4:2:2/4:2:0
Color Depth    8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit (4K2K@60Hz)
HDMI Audio Formats
(Pass-through)    PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Coax Audio Formats    PCM 2.0, Dolby Digital / Plus, DTS
L/R Audio Formats    PCM2.0(dowm-mix) 44.1/48/88.2/96KHz, 16/20/24bit
HDR formats    4:4:4, 4:2:2, 4:2:0 (10,12bit deep color) HDR10,HDR10+,Dolby Vision, HLG
ESD Protection    Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

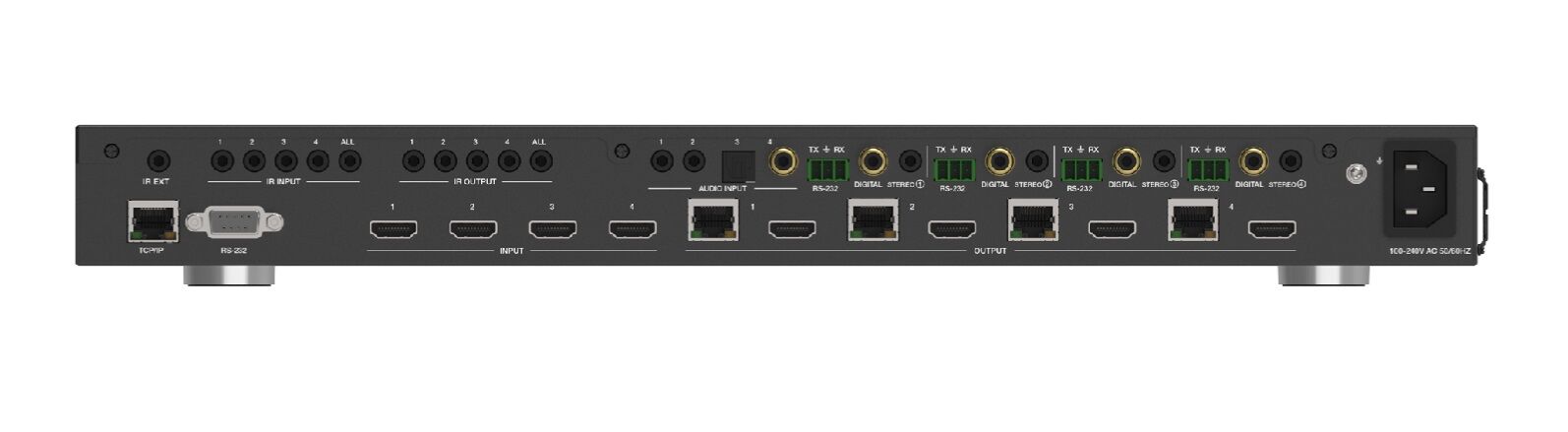

Connections
Matrix
Input ports    4x Source (IN) [Type A, 19-pin female]
4x Display IR (IN) [3.5mm Stereo Mini-jack]
1x All IR (IN) [3.5mm Stereo Mini-jack]
1x Hub IR (IN) [3.5mm Stereo Mini-jack]
2x Audio A1/A2 (IN) [3.5mm Stereo Mini-jack]
1x Audio A3 [S/PDIF]
1x Audio A4 [RCA]
Output ports    4x HDMI (OUT) [Type A, 19-pin female]
4x Source IR (OUT) [3.5mm Stereo Mini-jack]
1x AVR IR (OUT) [3.5mm Stereo Mini-jack]
4x Audio (OUT) [3.5mm Stereo Mini-jack]
4×Audio (OUT) [RCA]
4x Video (OUT) [RJ45]
Control Ports    1x CONTROL [RJ45]
4x RS-232 (IN) [Phoenix jack]
1x RS-232 [DB9]
HDBaseT Receiver
Input ports    1x Video [RJ45]
1x IR IN [3.5mm Stereo Mini-jack]
1x SERVICE [Micro USB, Update port]
Output ports    1x HDMI (OUT) [Type A, 19-pin female]
1x IR OUT [3.5mm Stereo Mini-jack]
Control Ports    1x RS-232 (OUT) [3-pin Phoenix jack]
Mechanical
Housing     Metal Enclosure
Color    Black
Dimensions    TX: 440mm (W)x284mm (D)x44mm (H)
RX: 162.8mm (W)x90mm (D)x18mm (H)
Weight    TX: 2.4kg, RX: 180g
Power Supply    100~240V AC 50/60Hz Power cable
Power Consumption (Max)     68W (Max) / 2.4W (Standby)
Operation Temperature    32 - 104°F / 0 - 40°C
Storage temperature    -4 - 140°F / -20 - 60°C
Relative Humidity     20 - 90% RH (no condensation)
Mechanical    4K60 - Feet / Meters    1080P - Feet / Meters
CAT5e/6/6a    132ft / 40M    230ft / 70M
Resolution / Cable length    4K60 - Feet / Meters     4K30 - Feet / Meters     1080P60 - Feet / Meters
HDMI IN / OUT    10ft / 3M    30ft / 10M    42ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.
