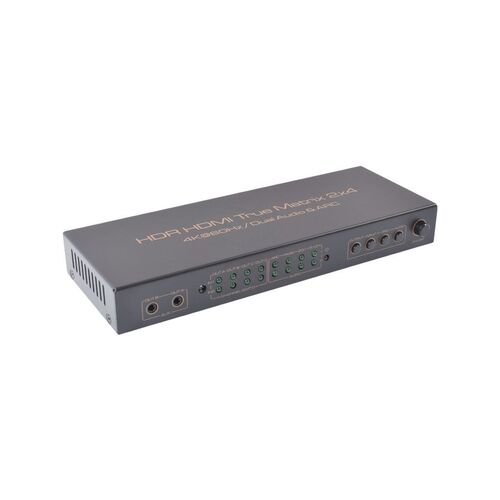

HDMI 2.0 18GBPS 2 Input 4 Output Matrix Switcher Splitter

2 x 4 HDMI True Matrix Switcher Splitter

This HDMI 2.0 18GBPS True Matrix Switcher Splitter is capable of switching between 2 HDMI inputs and displaying the same or different input to 4 LCD Displays or TV. Suitable for newer 4K HDMI devices such as PS4 Pro, XBOX S One, Foxtel IQ4, etc.

Features:

•Supports HDMI 2.0b,HDCP2.2 / 1.x，DVI 1.0 compliant；

•Supports 18Gbps bandwidth；

•Supports HDMI resolution up to RGB/Ycbcr 4:4:4/Ycbcr 4:2:2；

•Supports digital and analog audio extract output from  output A；

•EDID can be selected AUTO, COPY and STD mode via selector on front panel.

•Supports analog audio PCM 2.0；

•Supports optical audio pass-through format including LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1；

• Supports HDR function；

• Control is via on front panel button and IR remote.



Specifications

Model name HDR HDMI True Matrix 2x4
Input ports HDMI x2
Output ports HDMI x4, Optical x2, AUX x2
Video format 480i/480P/576i/720P/1080i/1080P/2160P (Supports HDR/Dolby Vision)
Deep color 8/10/12Bit@480P/720P/1080P 8Bit@2160P
Audio format Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc. Transmission bandwidth 25~600MHz
Transmission rate 0.75~18Gbps
Analog output level 2V RMS (1kHz@0dB)
Input cable length 2160P/AWG 26 ≤4m；1080P/AWG 26 ≤10m
Output cable length 2160P/AWG 26 ≤5m；1080P/AWG 26 ≤12m
Power adapter specification Input: AC 100~240V Output: DC 5V/1A
Max working current 700mA
Working temperature range -5 ~ +40℃
Working humidity range 5 to 85%RH（No Condensation）
Storage temperature -15 to 55℃
Storage humidity 5 ~95%RH(No Condensation)
Size 205x75x30 (mm)
Weight 440g
Accessories Manual, Remote, Power Adaptor
