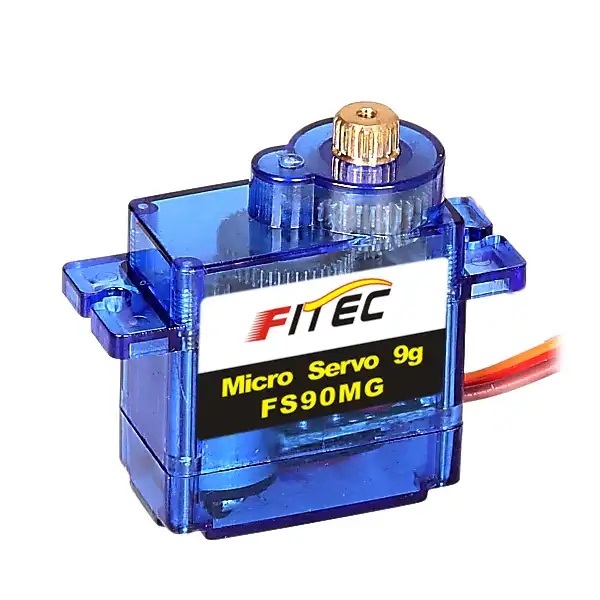

FS90MG 9G Micro Mini Metal gear Servo with servo arms and accessories

Micro servo for lightweight applications

FS90MG is a great micro servo with metal gears for lightweight applications. Small but powerful, this servo is ideal for remote control aircraft, helicopter and planes. Weighing at a mere 14g, it is a small form factor, measuring at a mere 22.5 x 12 x 26mm.

• Gear Type :Metal
• Motor Type: DC Motor
• Control System: Analog
• Dimensions:
  • Main body:
    • length 22.5mm, height 26.6mm, width 12.0mm
  • Including mounting tabs and output shaft:
    • length 32.2mm, height 31.0mm, width 12.0mm
• Stall Torque: 1.5kg.cm (4.8V), 1.8kg.cm (6.0V)
• No load Speed: 0.12sec/60degree (4.8v) | 0.10sec/60degree (6v)
• Operating Angle : 120 degree
• Running degree: 90°±3° (when 1000~2000usec)
• Required Pulse : 900us-2100us
• Neutral position: 1500usec
• Dead band width: 8 usec
• Connector Wire Length : 20cm

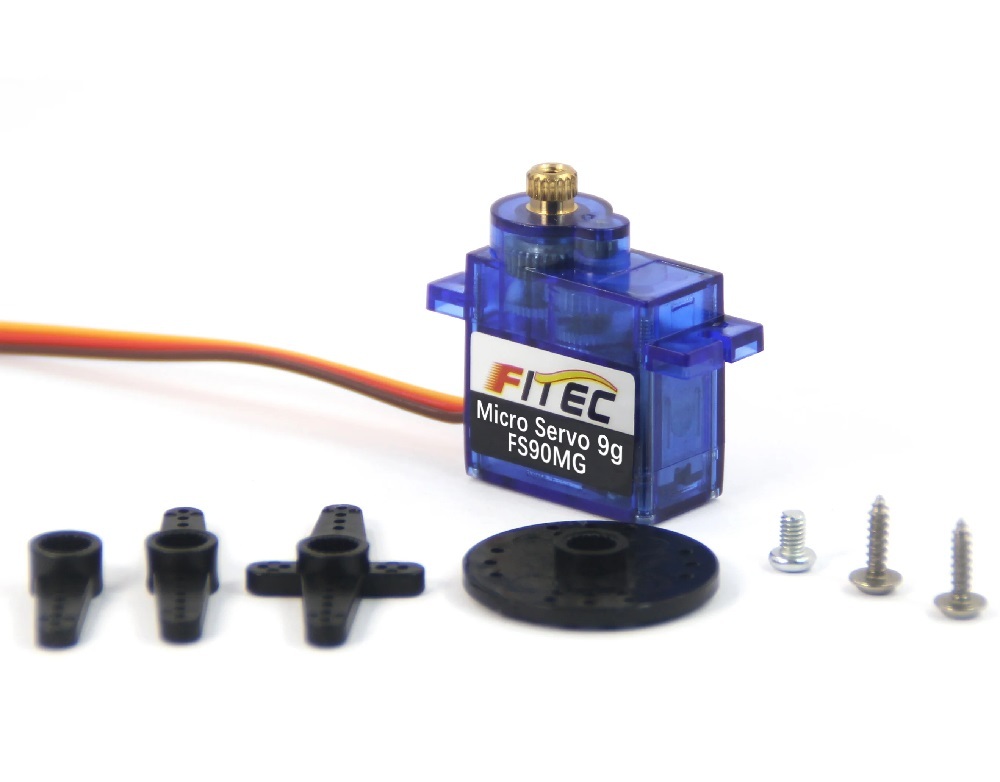

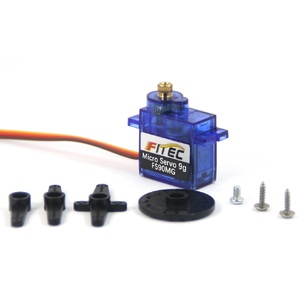

Package Includes:

• 1x FS90 Servo
• 4x Servo Arms
• Mounting Screws
