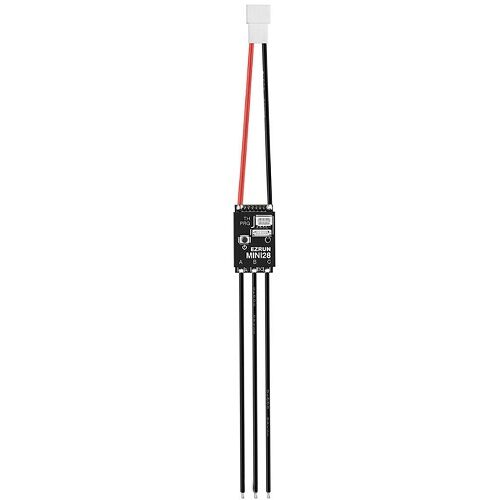

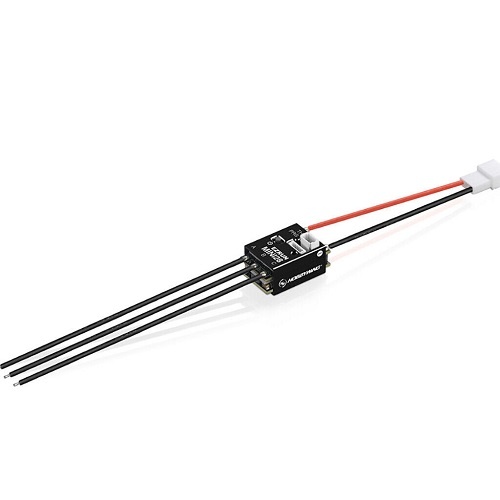

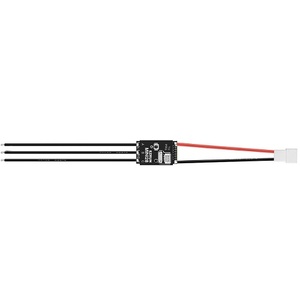

EZRUN Mini28

Brushless ESC Upgrade for RCs

EZRUN Mini28 is purpose-engineered for 1/28 scale RC racing platforms, delivering high performance in an ultra-compact form factor.

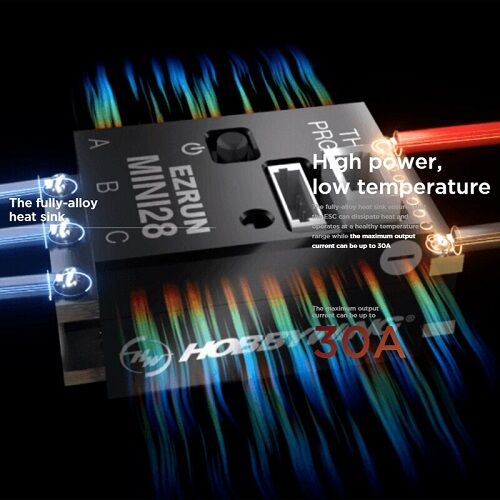

Its minimalist footprint enables streamlined installation with minimal soldering and post-processing. The ESC features a full aluminum heat sink casing, designed for optimal thermal conductivity and efficient heat dissipation—ensuring stable performance under high-load conditions with a peak continuous output of up to 30A.

Integrated within the unit is a high-efficiency BEC capable of delivering up to 3.5A at selectable output voltages of 6.0V or 7.4V, providing reliable and consistent power delivery to meet the demands of modern high-torque servos.

Specifications
Cont./Peak Current: 30A/80A
Input Voltage: 2S Lipo
BEC Output: 6V/7.4V @Max 3.5A

Wires & Connectors
Input Wires:Black-20AWG-55mm*1 Red-20AWG-55mm*1
Output Wires:Black-22AWG-80mm*3
(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
OTA Programmer: Supported
Program Port: Throttle Wire

Firmware Upgrade: Supported
Size:22 x 14 mm
Weight:5g (without wires)

Applications FOR:
Motors: 1626 Size Motors
Vehicles:1/28,1/27,1/24
