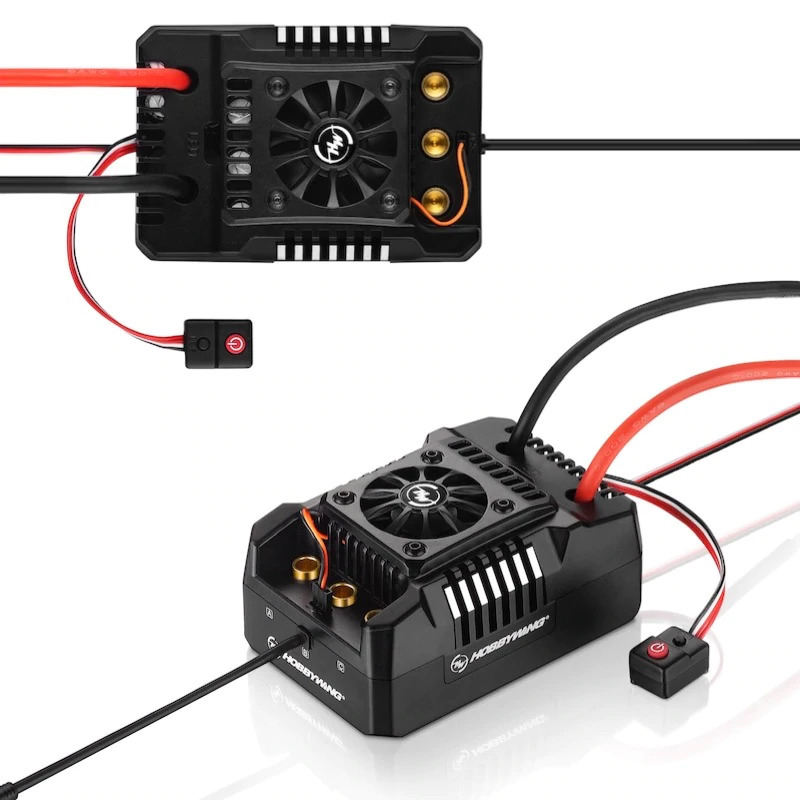

EZRUN MAX4 HV 300A 1:5 6-12S Brushless Electronic Speed Controller

Brushless ESC Upgrade for RCs

The Hobbywing 30104002 EZRUN MAX 4 provides the ultimate power upgrade solution for many popular 1/5th scale vehicles like HPI Baja buggy, Losi 5IVE-T Nitro-to-Electric truck, and Desert Buggy XL Nitro-to-Electric buggy. It’s also suitable for various other brand of 1/5th scale on-road cars, truggies, SCTs and buggies. The waterproof and dust-proof design allows the MAX4 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

Features:

The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing)
caused by the automatic closure of mechanical switches and other issues.
Built-in fire-proof circuitry to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
Support LED program card, LCD program box, OTA programmer (Note: optional) to set the parameters of the ESC.
Real-time data recording function to view various running data on the HW LINK app using the OTA Bluetooth module.
Specifications

MAX 4 (HV)
Scale Vehicles    1/4 - 1/5th
Cont./Peak
Current    300A/2000A
Motor Mode    Sensored and sensorless brushless motor
Input    6-12S Lipo
Motor Limit    With 12S Lipo: KV≤600 70125 size motor
BEC Output    6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Programming
Port    Share with Fab interface
Switch Mode    Electronic Switch
Capacitor
protection    Yes
Waterproof    Yes
Size (L.W.H)
mm    125 x 85 x 61.7mm
Weight (g)     775.4g
