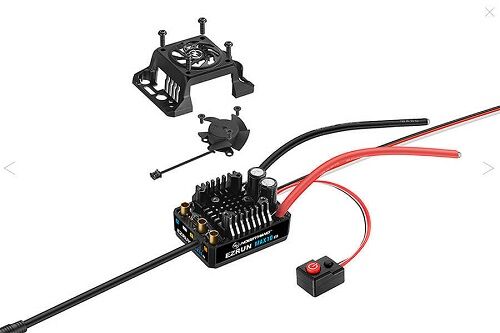

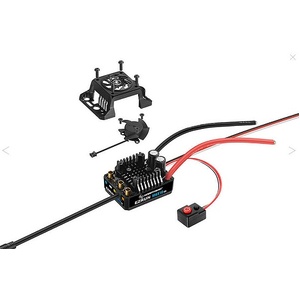

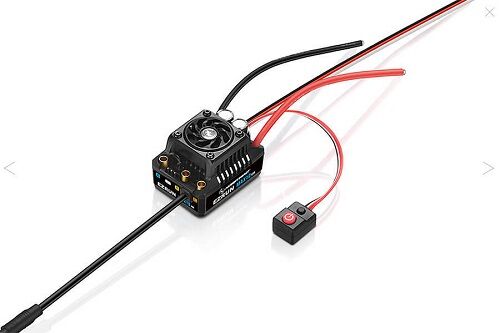

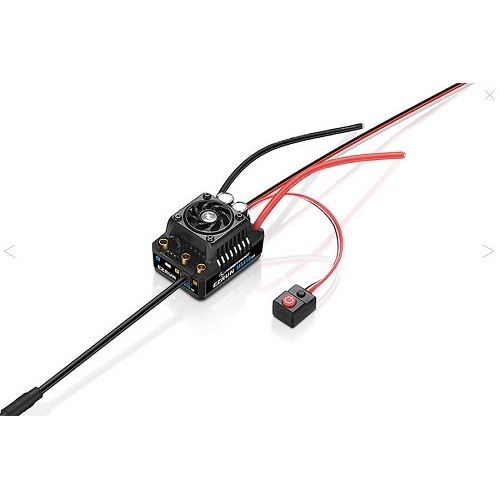

EZRUN MAX10 G2 140A Speed Control

Brushless ESC Upgrade for RCs

EzRun Max10 G2 sets a new benchmark in 1/10 scale ESC performance, featuring an enhanced waterproof sensored cable interface and upgraded full-sensored mode for ultra-precise throttle control and refined drivability.

Building on the legacy of its predecessor, the Max10 G2 delivers increased punch with a stronger burst output and significantly more stable power delivery across the RPM range. It also excels at low-speed control, offering smoother and more linear throttle response—ideal for technical terrain or tight track layouts.

A key innovation is the patented frameless fan design, engineered to maximize airflow via side vents that channel heat efficiently away from the integrated alloy case. Coupled with increased internal capacitance, this not only enhances thermal protection but also improves the system's overall electrical stability—safeguarding against overloads and preventing capacitor failure.

Certified to IP67 standards, the Max10 G2 is fully waterproof and dustproof, allowing you to tackle mud, snow, gravel, or wet trails without compromising ESC integrity or performance.

Thanks to Smart Freewheeling Technology, drive efficiency is significantly improved over the previous generation. This results in cooler running temps—on average, up to 25°C lower—ensuring better thermal headroom and longer runtime under stress.

SpecificationsType
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof

Specifications
Cont./Peak Current: 140A/880A
Input Voltage: 2-4S LiPo
BEC Output: 6/7.4V, 5A

Wires & Connectors
Input Wires: Red-12AWG*1 Black-12AWG-150mm*1
Output Wires:
Input Connectors: XT60
Output Connectors: 4.0mm Gold (Female)

Fan
Size: 30x30x10mm
Output Wires: 5-7.4V
Input Connectors: Powered by BEC

Esc Programming Via
SET Button on ESC: No
LED Program Box: Supported
LCD Program Box: Supported (G2)
OTA Programmer: Supported
Programming Port: Separate

Firmware
Firmware Upgrade: Supported

Size & Weight
Size: 53mm*39.5mm*37.2mm
Weight: 120g(w/Wires)

Applications
Applicaions: SL BL Motors / SD BL Motors Vehicles: 1/10th Short Course Truck, Truck and Monster Truck
KV Rating / T Count: With 3S LiPo: KV<4000 3665 Size Motor, With 4S LiPo: KV<2600 4268 Size Motor
