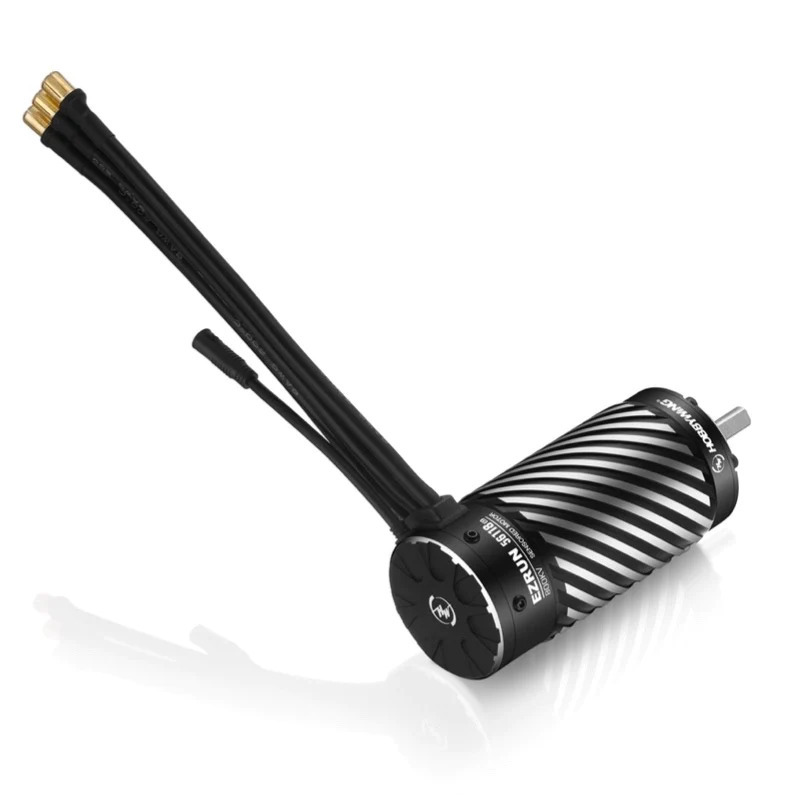

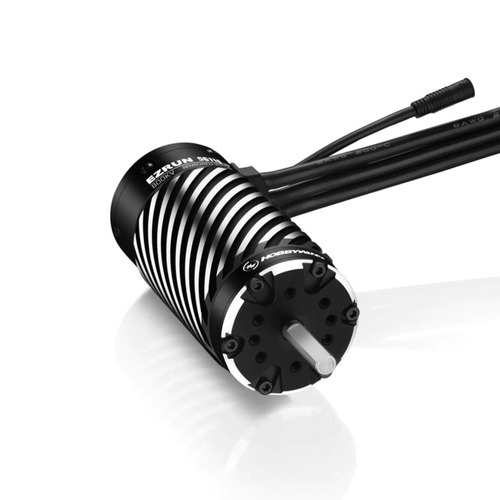

EZRUN MAX 56118 G2 SD 800kV Sensored Brushless Motor

Brushless Motor Upgrade for RCs

SKU: TM0012


$319.00
RRP $449.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $303.05 ea
Buy 11 to 20: Pay $287.90 ea
Buy 21 to 100: Pay $259.11 ea




Calculate Shipping

EZRUN MAX 56118 G2 SD 800kV Sensored Brushless Motor

Brushless Motor Upgrade for RCs

Compared with the previous generation, it has added a new waterproof sensor cable, upgraded to a sensored system, with better accelerate linearity and stronger explosive force.

It has perfect compatibility when it is matched with Hobbywing EZRUN MAX5 G2 ESC, the esc can automatically recognize this motor, and build a power system with full sensor mode, providing better control performance and more delicate control feel, and also realizing the motor overheat protection function.

The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.

CNC machined aluminum housing, high purity copper windings, high strength explosion-proof rotor, ultrathin silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.

The innovative new sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor

Hobbywing EZRUN 56118SD G2 4-Pole 1/5 Scale Sensorless Brushless Motor (650kV) HW30402902

12S HV ESC, enhanced performance

The Max5 HV G2 ESC is designed to work in full-sensored mode at all times when it is paired with HOBBYWING EZRUN 56118 G2. The ESC supports up to 12s Lipo with a maximum output current of up to 250A. The strong explosive, stable output power, together with an excellent low-speed linearity, ensures the ESC meets various application requirements such as; violent start-up,straight-line high-speed, flying slopes, low-speed walking, etc.

Intelligent freewheeling technology, strong drive low temperatures

The innovative intelligent freewheeling technology effectively reduces heat generation and enables the ESC to have higher driving efficiency. With the addition of super-high power design, operating temperature is drastically lowered (approximately 30 degrees) to improve overall stability and reliability of the ESC.

Note: Under heavy load conditions, the temperature of MAX5 HV G2 is only slightly higher than that of MAX4 HV.

It is approximately 30 degree celcius lower In temperature in comparison to the previous generation

High protection level, all-weather operation

The IP-67 waterproof rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.

1/5th scale power system Turbo timing technology

The ESC is able to support up to 24 degrees of Turbo Timing adjustment. There is an approximate of 18% increase in performance and is recommended to pair with the new HOBBYWING EzRun 56118 SD G2 motors to get the best performance.

Note: For non-Hobbywing EzRun 56118 G2 motors, Turbo timing cannot be turned on

Powerful BEC

The ESC has a built-in super BEC with a maximum output current of up to 25A. The output voltages are switchable between 6V/7.4V/8.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Built-in anti-spark design, multi-directional protection

The ESC has a built-in anti-spark circuit to protect the battery plug from damaging upon using a higher voltage battery(6-12S), and avoids any injuries.

´╗┐Perfect combination with EZRUN 56118 SD G2 motor

Achieve the perfect compatibility when used together with EzRun 56118 SD G2 motors. Avoid damaging the motor from overheating with the software protection function.

Note: Non-Hobbywing EzRun 56118 SD G2 motors cannot realize motor overheat protection

Record and store data in real time to keep track of the running status

Connect the ESC to the OTA Bluetooth module, and through the mobile phone APP, you are able to view real-time data and operating status such as; throttle, voltage, current, temperature, speed, etc.

New sensor wire interface, upgraded waterproof protection.

The new sensor wire interface enhances the ESC protection level and solves waterproof problems faced by traditional interfaces.

Please Note: This ESC supports sensored motors with common inter Senser wire needs to be purchased separately.

Features:

  • 4-pole rotor design for more torque with strong explosive force
  • Detachable motor design for easy maintenace
  • Waterproof sensor interface
  • Explosion-proof rotors
  • Spiral CNC shell

Specifications:

  • Input Voltage: 8-12S LiPo
  • KV: 800kV
  • Pole: 4
  • Motor Diameter: 2.20" (56mm)
  • Motor Length: 4.69" (119.2mm)
  • Shaft Diameter: 0.31" (8mm)
  • Shaft Length: 1.18" (30mm)
  • Front Bearing size: D22*D8*T7
  • Rear Bearing size: D19*D5*T6
  • Weight: 1277g

3 Month Warranty

SKU TM0012
Barcode # 9351634069392
Brand Hobbywing
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.030m
Shipping Length 0.200m
Shipping Cubic 0.001200000m3
Unit Of Measure ea
