ESP32-S3 WiFi-Bluetooth Mini Development Board Arduino Projects

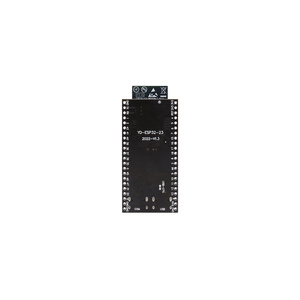

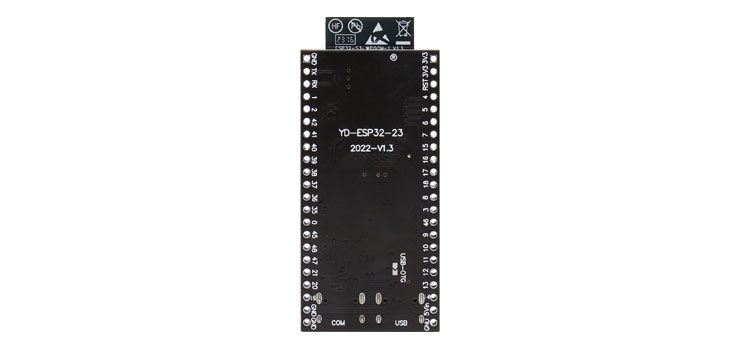

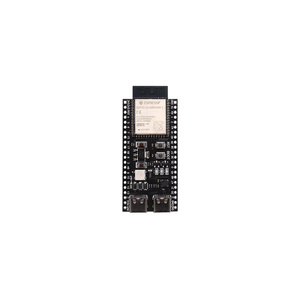

ESP32-S3 Mini Development Board w/ Wifi & Bluetooth

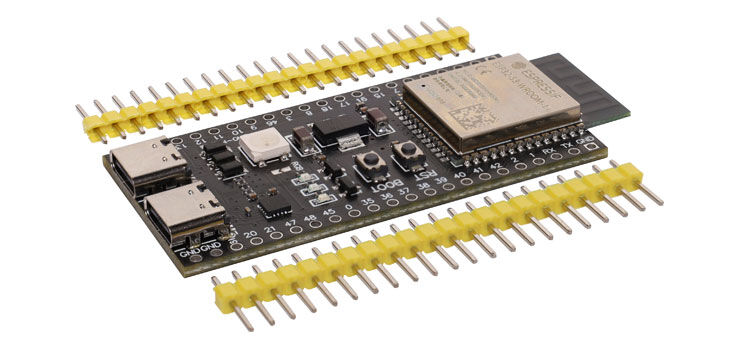

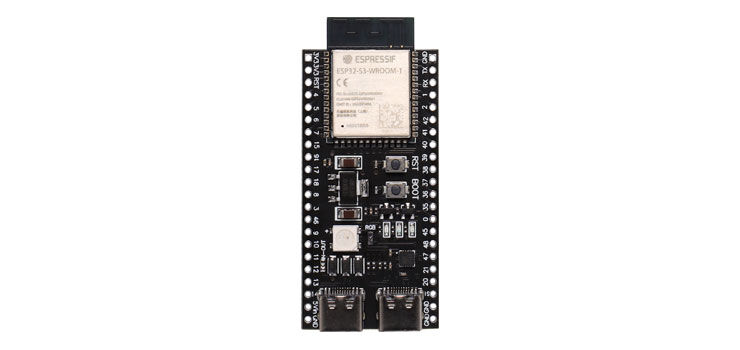

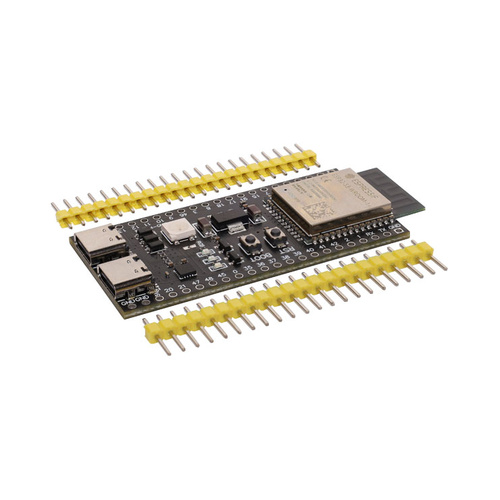

This ESP32-S3 development board is assembled with an original ESP32-S3-WROOM-1 module from Espressif, with 16MB Flash and 8MB PSRAM(ESP32-S3-WROOM-1-N16R8). It is a general-purpose Wi-Fi + Bluetooth® LE MCU module that integrates complete Wi-Fi and Bluetooth LE functions. Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount the module on a breadboard.

The ESP32-S3 is a dual-core XTensa LX7 MCU, capable of running at 240 MHz. Apart from its 512 KB of internal SRAM, it also comes with integrated 2.4 GHz, 802.11 b/g/n Wi-Fi and Bluetooth 5 (LE) connectivity that provides long-range support. It has 45 programmable GPIOs and supports a rich set of peripherals. ESP32-S3 supports larger, high-speed octal SPI flash, and PSRAM with configurable data and instruction cache. There is a RGB WS2812 LED that can be connected to IO48 (disconnected by default - see note below). It has a Red, Green and Blue LED that are individually addressable. There are plenty of examples on the internet showing how to drive a WS2812 LED. For example, Google "WS2812 Arduino" or "WS2812 c code".

Please Note: To connect the on board addressable LED to pin 48, close the solder-bridge marked ‘RGB’, next to the LED.



Features

• XTensa dual-core 32-bit LX7 CPU, frequency up to 240MHz
• 2.4 GHz Wi-Fi, EEE 802.11 b/g/n-compliant
• Bluetooth, LE: Bluetooth 5, Bluetooth mesh
• 16 MByte(64Mbit) SPI Flash
• 384 KByte ROM
• 512 KByte SRAM
• 8 MByte(64Mbit) SPI PSRAM
• 16 KB SRAM in RTC
• Communication Interfaces: 2 x I2C, 2 x I2S, 4 x SPI, 3 x UART, 1 x USB OTG
• Security: 4096 bit OTP, AES, SHA, RSA, ECC and RNG, Secure boot, Flash encryption, Digital signature, HMAC module
• Dual Type-C USB connectors
• Reset and User/Firmware buttons
• RGB WS2812 User LED
• Power LED
• Virtual USB port provided by CP2102 for debugging and firmware upgrade
• Compact size of 50.1 x 13mm
• Supply Voltage: 5V via USB
• Circuit Voltage: 3.0 to 3.6V Circuit Operation

 Specifications

• Weight: 10 g
• Platform: Espressif ESP
• Wired Technology: USB
• Chip Family: ESP32-S3
• Connector: USB-C

  *Specifications are subject to change without notice.
