ESP32 Development Board with OV2640 Camera Module Wi-Fi & Bluetooth for Arduino

Powerful and low cost solution for STEM applications

SKU: TA0670


$26.95
RRP $49.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $25.60 ea
Buy 11 to 20: Pay $23.04 ea
Buy 21 to 100: Pay $20.73 ea




Calculate Shipping

ESP32 Development Board with OV2640 Camera Module Wi-Fi & Bluetooth for Arduino

Powerful and low cost solution for STEM applications

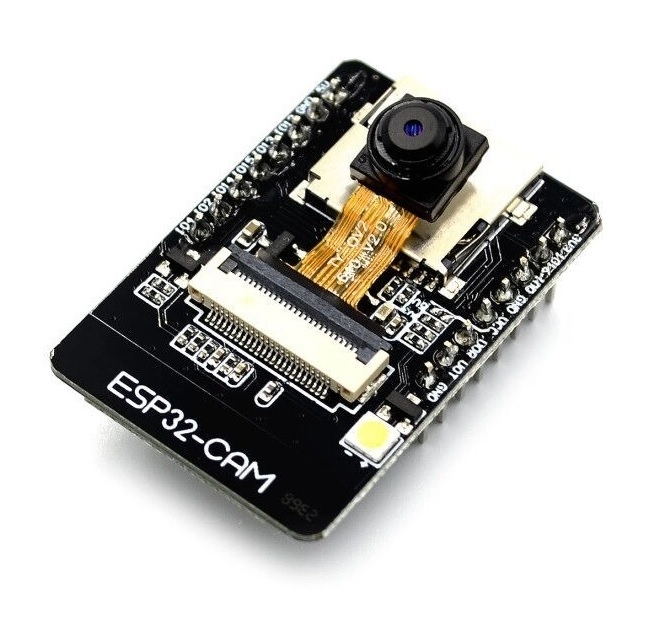

The ESP32-CAM is a full-featured microcontroller that also has an integrated video camera and microSD card socket.  It’s inexpensive and easy to use, and is perfect for IoT devices requiring a camera with advanced functions like image tracking and recognition.
The ESP32-CAM has a very small-size camera module measuring only 27*40.5*4.5mm.
ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
ESP-32CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.

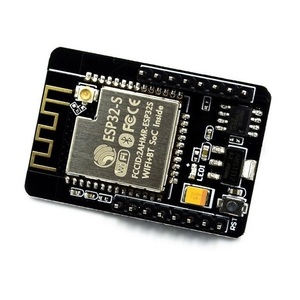

The ESP32-CAM is based upon the ESP32-S module, so it shares the same specifications.  It has the following features:

Features:
802.11b/g/n Wi-Fi
Bluetooth 4.2 with BLE
UART, SPI, I2C and PWM interfaces
Clock speed up to 160 MHz
Computing power up to 600 DMIPS
520 KB SRAM plus 4 MB PSRAM
Supports WiFi Image Upload
Multiple Sleep modes
Firmware Over the Air (FOTA) upgrades possible
9 GPIO ports
Built-in Flash LED
Camera Specifications
The ESP32-CAM includes an OV2640 camera module. The device also supports OV7670 cameras.  The OV2640 has the following specifications:

2 Megapixel sensor
Array size UXGA 1622×1200
Output formats include YUV422, YUV420, RGB565, RGB555 and 8-bit compressed data
Image transfer rate of 15 to 60 fps

3 Month Warranty

SKU TA0670
Barcode # 9351634024995
Brand iduino
Shipping Weight 0.1000kg
Shipping Width 0.130m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000520000m3
Unit Of Measure ea
Assembled Length 0.053m
Assembled Height 0.050m
Assembled Width 0.075m
