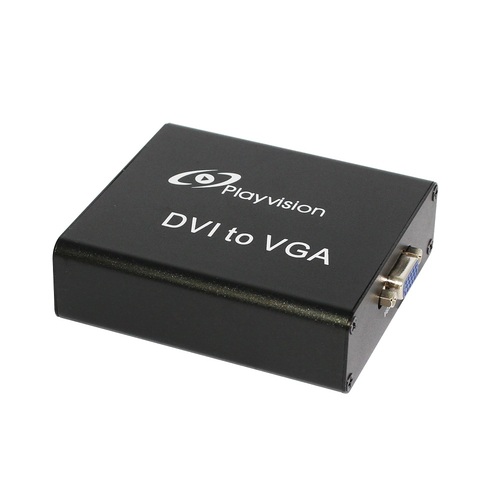

DVI to VGA Video Converter

Conver Digital DVI to Analogue VGA Video

This DVI to VGA format converter converts digital DVI/RGB video signal to analog PC RGB video signal. It allows you to connect the DVI output from PC or Video equipments to the HD-15 VGA input LCD monitors and Display. Its high band width capability supports a wide range of PC and HDTV resolutions.

Note: This is directional and only converts Digital DVI Signal to an Analogue VGA Video Signal.

Features
Connects computers with DVI-D connectors to analog VGA monitors or projectors.
Supports up to 1600x1200 @60 for PC input and 1920x1080p@60 for HD input.
Supports DDWG standard for DVI compliant monitors.

Specification

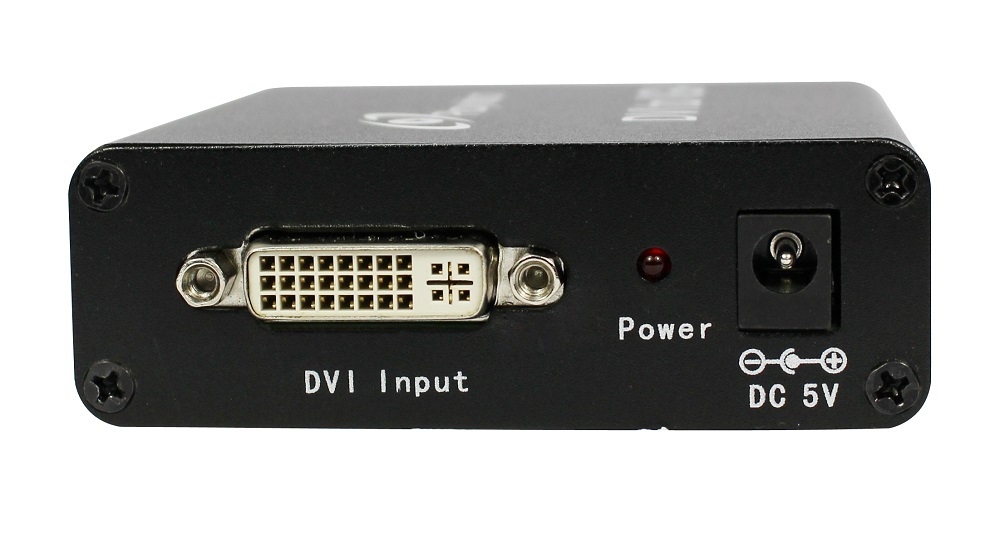

Input: DVI-I connector.
Input signal: Digital RGB data bit stream
Compliant with DVI Rev1.0

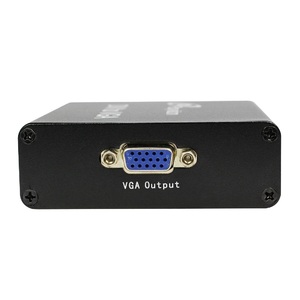

Output: Analog HD-15 ( RGB HV )

Output signal:
           RGB: 0.7 Vp-p 75 ohm
           H+V: 3 to 5 Vp-p

Operation frequency: up to 165MHz
Input/Output resolution:
PC：VGA@60、VGA@72、VGA@75、VGA@85 SVGA@60、SVGA@72、SVGA@75、SVGA@85  XGA@60、XGA@70、XGA@75、XGA@85 SXGA@60、SXGA@75、SXGA@85、UXGA@60  1152@70、1152@75、1152@85
HD/RGB：480i@60、576i@50、480P@60、576P@50、720P@60、720P@50、1080i@60、1080i@50、1080P@60、 1080P@50、1080P@30、1080P@25、1080P@24
Dimension (WxHxD): 84 * 28 * 100mm
Power: 12V 500mA~2A Center-positive
