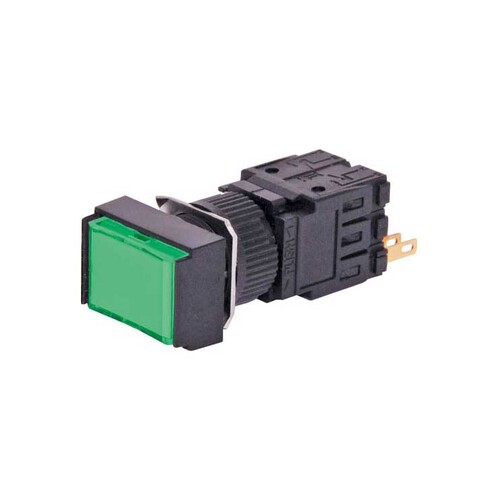

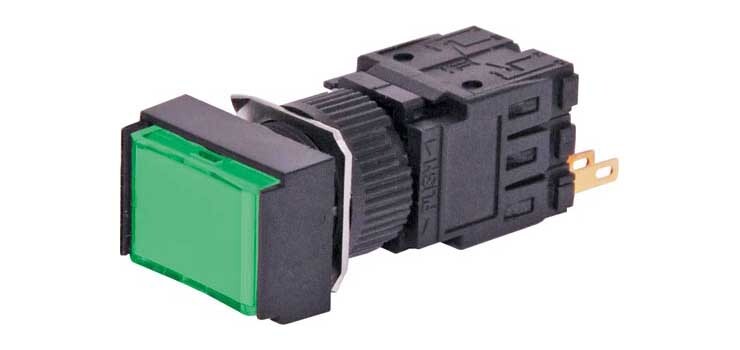

DPST Mom. Green Illuminated Solder Tail Pushbutton Switch

Push Button Switches for your Electronic Projects!

SKU: AC3353


$19.95
RRP $39.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $18.95 ea
Buy 11 to 20: Pay $18.00 ea
Buy 21 to 99: Pay $17.10 ea




Calculate Shipping

DPST Mom. Green Illuminated Solder Tail Pushbutton Switch

Push Button Switches for your Electronic Projects!

Momentary type illuminated push-button switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Globe not included.

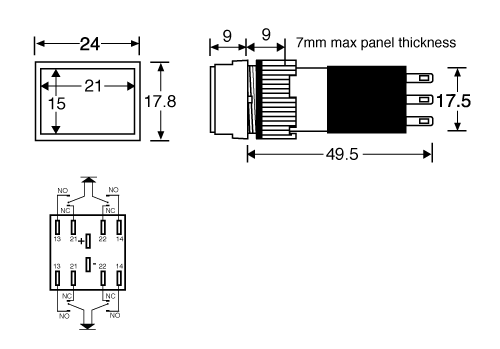

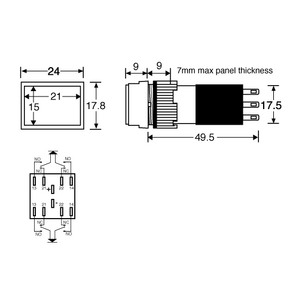

Terminal connections disconnect from the panel switch to allow switch to be mounted in a single 16mm round hole (15.8mm flat sides).

SPECIFICATIONS:

  • Switch Type: Momentary
  • Body Material: High grade thermoplastic
  • Operating Travel: 3.0mm
  • Actuating Force: 150gm
  • Mech. Lifetime: 1M operations min
  • Electrical Life: 100,000 operations min
  • Electrical Rating: 250V AC 4A
  • Dielectric Strength: 1kV AC, 50Hz, 1 min
  • Insulation Resistance: 100MΩ min @ 500V DC
  • Panel Thickness: 7mm maximum
  • Mounting Hole Diameter: 16mmØ
SKU AC3353
Barcode # 9321758190340
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.050m
Shipping Cubic 0.000150000m3
Unit Of Measure ea
